The Primofit® Galvanised Gas Adaptor is a top quality compression fitting for connecting 25mm yellow MDPE gas pipe to 3/4" BSP male threaded steel pipework. A secure, leak free solution for Natural Gas and LPG installations, meets BS EN 10255, BS EN 10220, ISO 7-1 standards.
Manufactured under a BS EN ISO 9001 quality system, this adaptor is designed for long life in domestic, commercial and light industrial applications. The galvanised body and nut are corrosion resistant and the insert stiffeners support MDPE pipe integrity.
For above ground or underground use (with corrosion tape, sold separately), this adaptor also meets GIS/PL3 specified installations where galvanised components are required.
MDPE-to-Steel Connection – Compression fitting simplifies transitions without welding or threading.
Galvanised Finish – Nut and body are zinc coated for maximum corrosion resistance and durability.
Insert Stiffeners – Ensures pipe grip and alignment under pressure.
7 Bar at 20°C – Suitable for most residential and commercial gas applications.
6° Angular Deflection – Allows for slight pipe misalignment during installation.
BSP Thread – Male BSPT and female BSPP threads to ISO 7-1 for easy fitting.
Natural Gas & LPG – Suitable for all gas supply systems.
Underground Installation – Use with corrosion tape (sold separately) for buried pipelines.
Tool Free Installation – No welding, threading or special tools required.
Fully Certified – Manufactured to international standards.
Gas Safe – Complies with UK gas infrastructure.
GIS/PL3 Approved – Galvanised construction meets industry specifications.* UK Wide – Used by professionals.

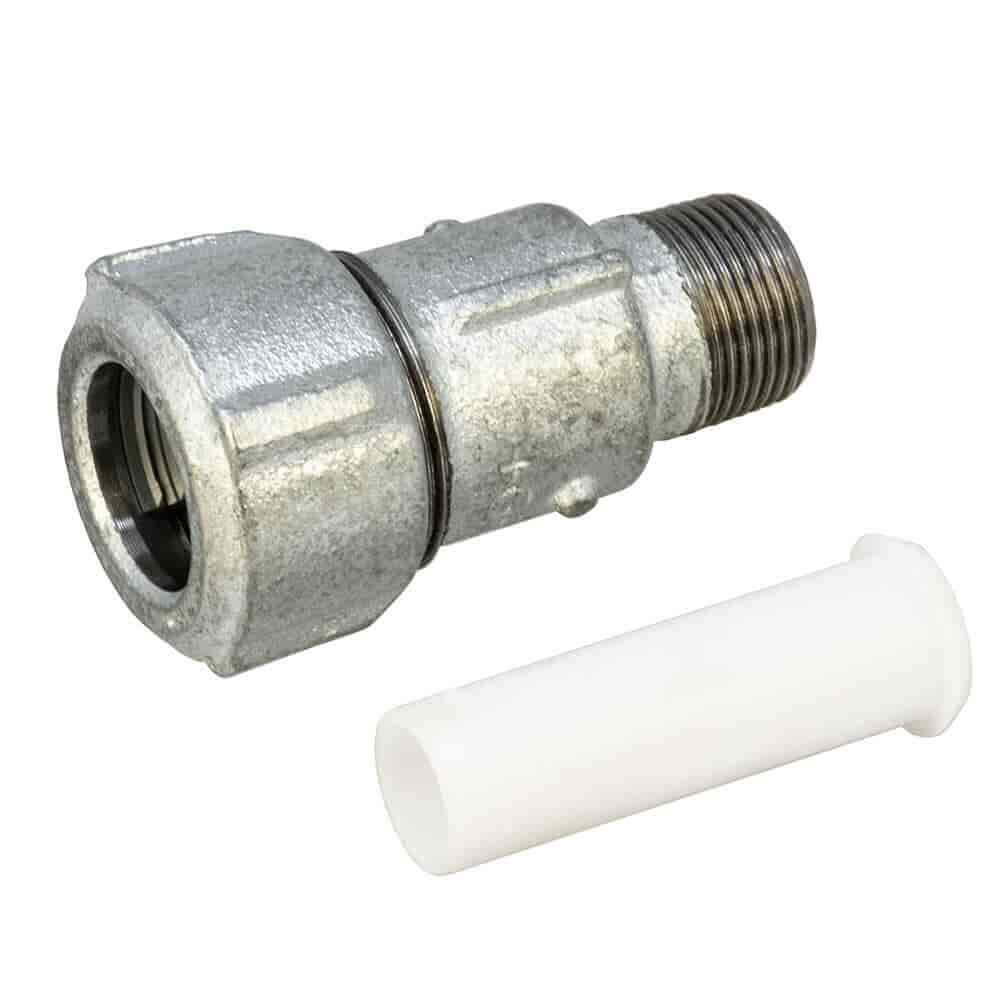

Connect MDPE to steel gas pipework with the Primofit® 3/4" BSPM x 25mm MDPE Galvanised Gas Adaptor.
| Brand | George Fischer - Primofit® |
|---|---|
| Standards | BS EN 10255, BS EN 10220 and BS EN ISO 9001 |
| Angular Deflection | 6° |
| Colour/Material | Galvanised Malleable Iron |
| Pressure | 7 Bar |
| Size | 3/4" BSPM x 25mm MDPE |
| Temperature Range | -20°C to 40°C |
| Dimensions | 78mm x 51mm |
| Insert Stiffeners Included | Yes – For added stability with MDPE pipes |
| Suitable Gases | Natural Gas & LPG |
| Suitable Applications | To join yellow gas MDPE pipe to steel pipe. |
| Warranty | 12 Months |
