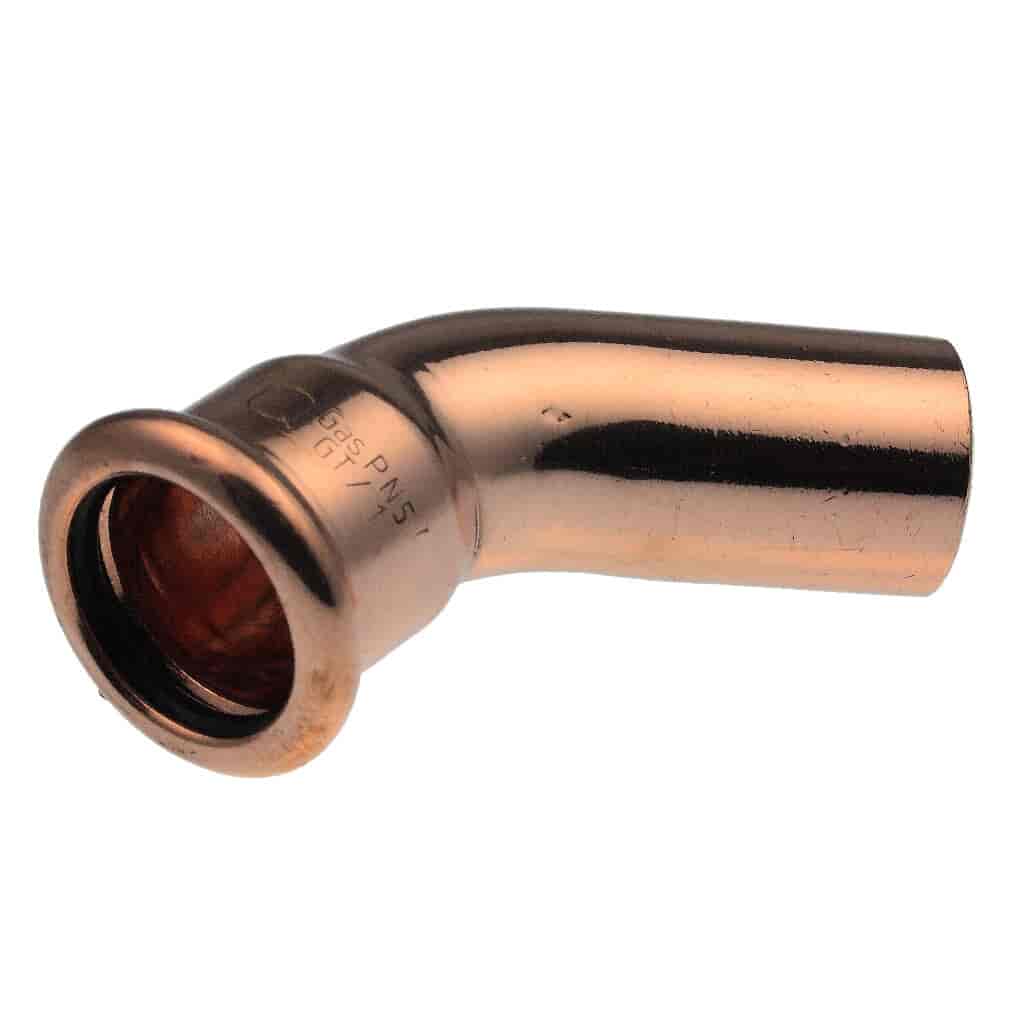

Pegler VSH Xpress Water 45° Street Elbow - 28mm
You might also like:
The Pegler Yorkshire VSH XPress Water 45° Street Elbow changes direction by 45° on 28mm copper tube. It has a press end and a plain 28mm tube end, and the press end is joined with a press tool, so no heat, solder or flux is used.
It is Kitemarked to BS 8537:2010 and approved by WRAS and KIWA, with a working pressure of 16 bar from -20°C to 110°C. It is made for hot and cold water services, vented and unvented closed circuit heating and chilled water systems, and is used with copper tube to BS EN 1057 in domestic and commercial buildings. The Leak Before Press feature shows up any unpressed fittings when the system is tested.
For water systems only. Do not use this fitting on gas. Have the installation carried out by a competent installer, and pressure test the system before use.
This street elbow changes direction by 45° on 28mm copper tube with a heat free press joint. It is Kitemarked to BS 8537:2010, approved by WRAS and KIWA, and rated to 16 bar, with Leak Before Press to show any unpressed fittings at test.
Order the Pegler VSH Xpress Water 45° Street Elbow - 28mm online today.
| Brand | Pegler Yorkshire Xpress |
|---|---|
| Approvals | WRAS & KIWA |
| Kitemark | BS 8537:2010 |
| For Use With | Copper tube to BS EN 1057 R250/R290 |
| Connection Type | Press x Tube End |
| Suitable For | Water |
| Max. Operating Pressure | 16 bar |
| Working Pressure Range | 16 bar at -20°C to 110°C |
| Equal/Reducing | Equal |
| Fitting Type | 45° (Obtuse) Street Elbow |
| Material | Copper |
| Size | 28mm |
| Application | Hot and cold water services, vented and unvented closed circuit heating and chilled water applications |
