Air Differential Pressure Switch – 0.2–2mbar | Gas Interlock, Fan Monitoring & Ventilation

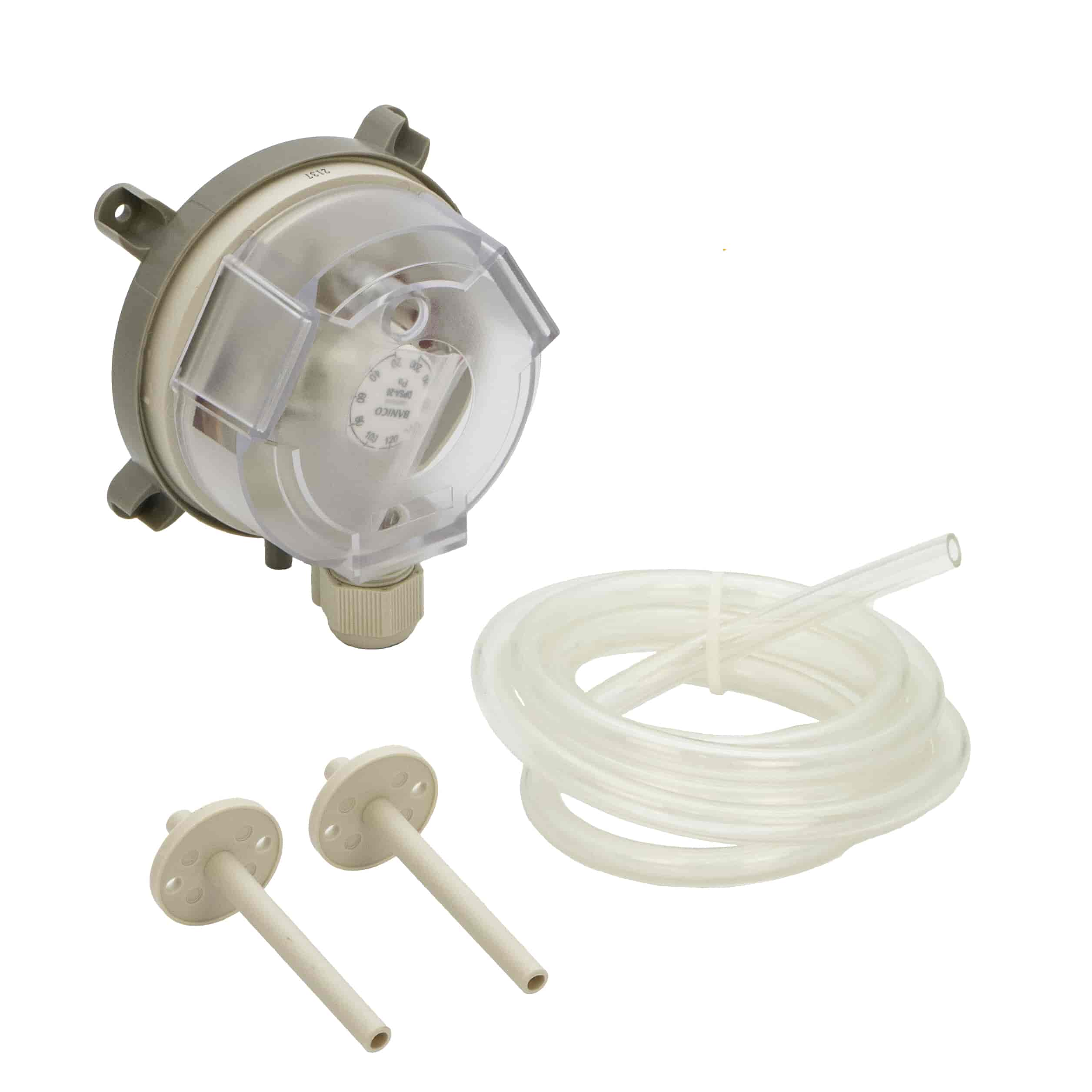

This air differential pressure switch has been EC type-tested and certified for use in gas interlock systems, extraction fan monitoring, filter monitoring and ventilation applications. It also works as a positive pressure switch, vacuum sensor or differential pressure monitor for air, flue gas and non-aggressive gases. It can handle a 0.2 – 2mbar (20 – 200Pa) range, with a delta of only 0.1mbar (10Pa) - a pretty precise operation. It's powered by 24V – 250V AC and is built to withstand the elements, with an IP54 rating. It can handle temperatures ranging from -20°C to +85°C. With a 2m clear hose and two spigots included in the supply, you're all set to install.
The switch can detect tiny pressure differences and trigger on/off or changeover operations when it reaches a certain pressure. Setting the switch point is a simple job, no tools required - just turn the hand wheel. All connections - pneumatic and electrical - are in the same place, so you can get your installation in and out without taking up loads of space. You can even connect using screw terminals or AMP plugs.
This differential pressure switch is perfect for all sorts of applications. you'll find it in fan monitoring on condensing boiler units and atmospheric wall-mounted units with flue gas fans. It's also used in fan and filter monitoring on intake and extract ventilation systems, air conditioning systems, commercial kitchen extraction interlocks, laboratory ventilation, frost protection control on heat exchangers, and butterfly valve and fire damper control.
Key Features & Benefits
0.2 – 2mbar (20 – 200Pa) operating range - This switch can cope with the sort of low air pressure differentials that you get with extraction fans and ventilation systems
0.1mbar (10Pa) delta - This means you get a reliable, repeatable operation, no matter what the circumstances
Setting it up is dead easy - Just turn the hand wheel and you're away - no tools required. It's a straightforward calibration job to match the system's available differential pressure.
Three different modes - One switch that can cope with positive pressure, vacuum and differential modes. You get all the functions you need in one piece of kit
It's not just for clean air - You can use it to monitor flue gas as well as air - it's suitable for all sorts of gas monitoring applications
Wide voltage range - 24V – 250V AC means it'll be compatible with your standard commercial interlock panel wiring
IP54 - pretty rugged - Protected against dust and splashes of water, it can withstand a bit of harsh weather.
-20°C to +85°C - it can take the heat - Use it in cold rooms, in the great outdoors, or in high-temperature kitchen duct environments.
5mm push-on hose connection - The 2m clear hose that comes with it has a 5mm connector.
All one side, nice and simple - Pneumatic and electrical connections are in the same place - it makes for a neat and tidy installation
Screw terminals or AMP plugs - it's up to you - You can connect it either way - it gives you a bit of flexibility.
EC type-tested and certified - it's the real deal
Supplied with a 2m hose and spigots - So you're all set to go
Ideal For
Commercial kitchen extraction gas interlock systems (BS 6173, of course)
Monitoring the fans in a commercial kitchen, lab or ventilation system
Keeping an eye on your filters on intake and extract ventilation systems
Fan monitoring on condensing boiler units and flue gas fan units
Frost protection control on heat exchangers - you don't want them icing up
Monitoring the air conditioning and HVAC systems
And also : butterfly valve and fire damper control.
Air differential pressure switch - not just some switch, this one's been EC certified for gas interlock, fan monitoring and ventilation. Order up today - supplied with 2m hose and spigots.
Specification
Air Differential Pressure Switch Specification
Product Type
Air Differential Pressure Switch
Operating Range
0.2 – 2 mbar (20 – 200 Pa)
Differential
Approx. 0.1 mbar (10 Pa)
Voltage Range
24V – 250V AC
Ambient Temperature
-20°C to +85°C
IP Rating
IP54
Hose Connection
5mm push-on
Electrical Connection
Screw terminals or AMP plugs
Setting Method
Hand wheel – no tools required
Pressure Modes
Positive pressure, vacuum and differential
Applicable Media
Air, flue gas and other non-aggressive gases
Certification
EC type-tested and certified
Supplied With
2m clear hose & two spigots
Features
Air Differential Pressure Switch Features
0.2–2mbar (20–200Pa) Operating Range - For monitoring low air pressure differentials typical of extraction fans and ventilation systems.
0.1mbar (10Pa) Differential - High switching point stability for reliable, repeatable operation.
Hand Wheel Setting - Switching point set on site without tools - straightforward calibration to match the system's available differential pressure.
Positive Pressure, Vacuum and Differential Modes - One switch covers multiple monitoring functions.
Air, Flue Gas and Non-Aggressive Gases - Not limited to clean air - suitable for flue gas monitoring applications.
24V–250V AC - Wide voltage range for use with standard commercial interlock panel wiring.
IP54 - Protected against dust ingress and splashing water.
-20°C to +85°C Ambient Range - Suitable for cold rooms, external locations and high-temperature kitchen duct environments.
5mm Push-On Hose Connection - For the 2m clear hose supplied.
All Connections One Side - Pneumatic and electrical connections accessible from the same face - space-saving installation.
Screw Terminals or AMP Plugs - Flexible electrical connection options.
