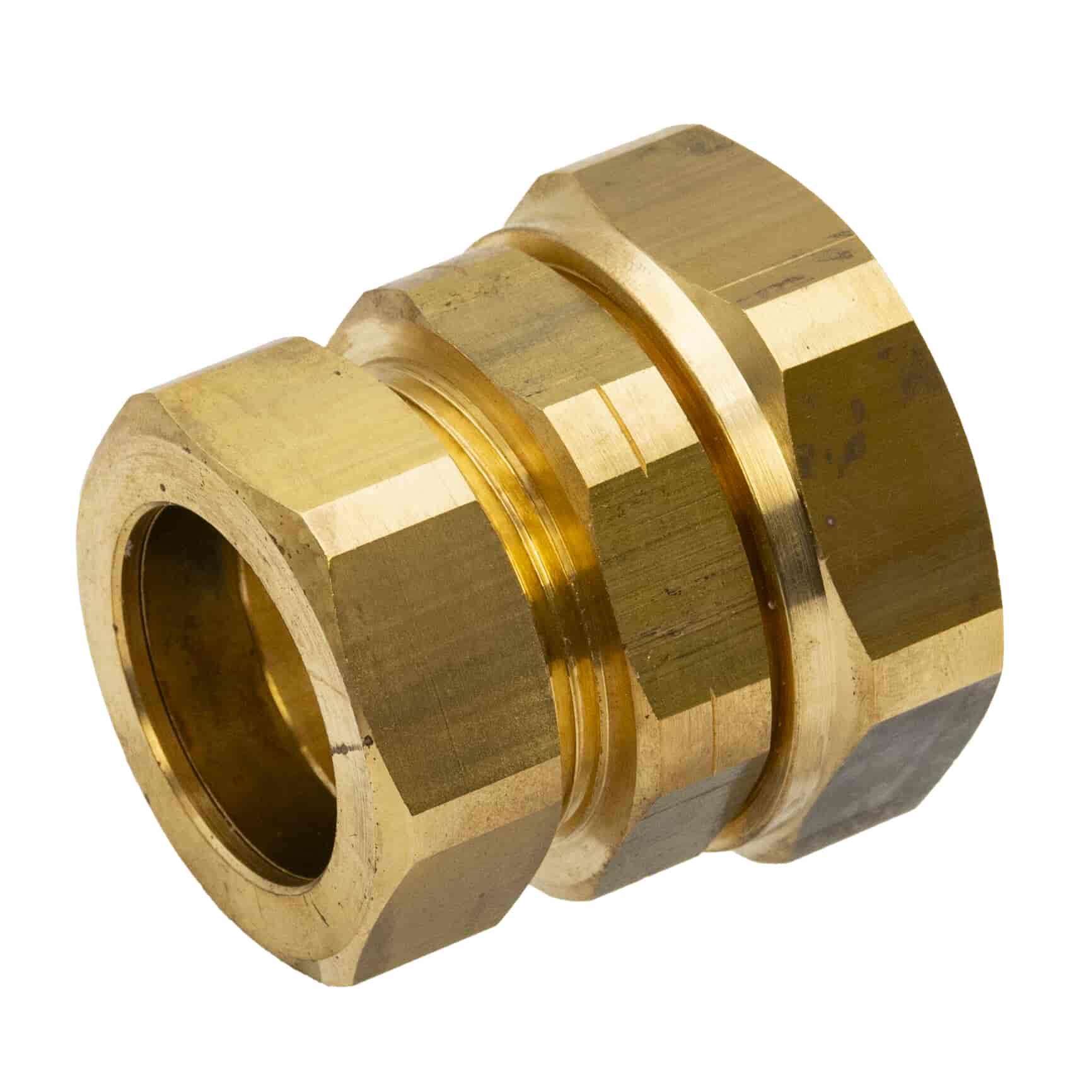

Joining flexible gas tube to copper pipework needs a connection that’s gas-tight and doesn’t involve a blowtorch. The Gastite XR2 Copper Compression Fitting connects DN25 Gastite CSST to 28mm copper pipe with no hot works, using Gastite’s tool-less flare design with a metal-to-metal seal.
Its patented Jacket-Lock® system eliminates exposed stainless steel beyond the nut, so the cut end of the tube isn’t left exposed to the environment. The fitting body, bushings and nut are brass (CW603N), and all components are re-usable. It’s approved in accordance with BS EN 15266 for natural gas and LPG, with a maximum operating pressure of 0.5 bar for the system.
This fitting is used only with Gastite CSST and must be installed in accordance with Gastite’s installation instructions. Simple hand tools such as tube cutters and wrenches are all you need. Gas work must be carried out by a suitably qualified, registered gas installer in accordance with the relevant standards.
If you’re connecting flexible Gastite tube to existing 28mm copper, this fitting makes the joint without a flame and without leaving steel exposed beyond the nut. It’s made for the Gastite system, the parts are re-usable, and it’s approved to BS EN 15266 for natural gas and LPG.
Order the Gastite® XR2™ Copper Compression Fitting – DN25 x 28mm online today.
| Brand | Gastite® XR2™ |
|---|---|
| Product Code | XR2-CCEU-DN25X28 |
| Product Type | Copper Compression Fitting |
| Connection | DN25 Gastite CSST x 28mm Copper Compression |
| Material | Brass (CW603N) |
| Fitting System | XR2™ with Jacket-Lock® |
| Approval | In Accordance with BS EN 15266 |
| Maximum Operating Pressure | 0.5 bar |
| Operating Temperature | -40°C to 60°C |
| Compatible With | Gastite DN25 CSST and 28mm Copper Tube |
| Gas Types | Natural Gas and LPG (Installed by a Registered Gas Installer) |
