Rigid gas pipework means a lot of cutting, bending and jointing, and every extra joint is another place a leak could develop. Gastite P2 is flexible stainless steel tube that can be routed round obstacles in a single length, so there are fewer joints to make and check.
What sets P2 apart is its sleeving. The corrugated stainless steel tube (CSST) comes with an integrated containment sleeve, compatible with Gastite XR2 fittings, and an outer sleeve with a ribbed underside that creates space between the sleeves. If gas were to leak, that space lets it ventilate instead of being trapped. The sleeves are UV-resistant polyethylene, and the tube is 1.4306 (304L) stainless steel.

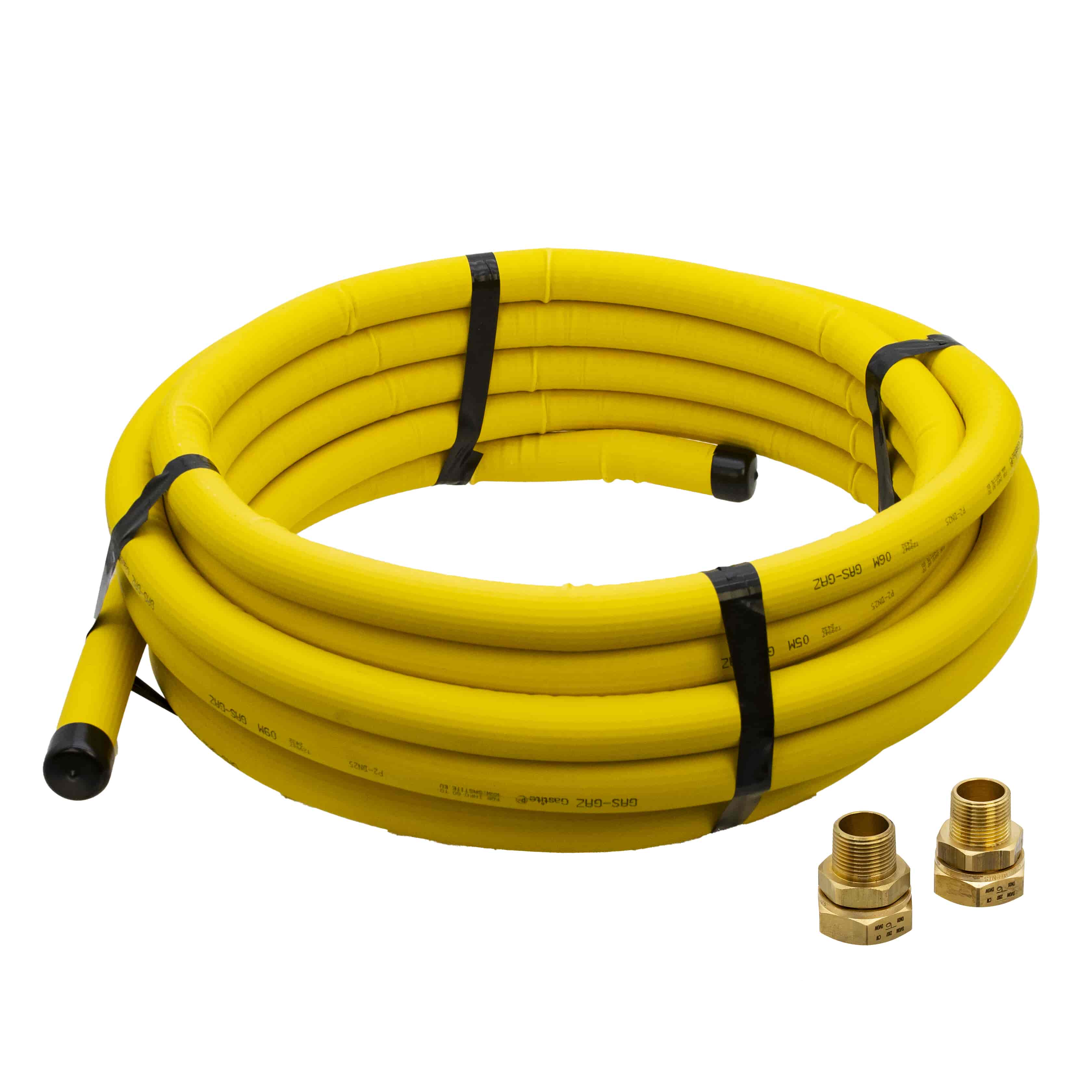

This kit includes 10m of DN25 P2 and two XR2 straight 1" BSP male thread fittings with Jacket-Lock®, for natural gas and LPG supplies to appliances. Gastite states that P2 has been fully tested to comply with the CSST Benchmark scheme and all NHBC 2022 warranty requirements, conforms to Euroclass reaction to fire rating B-s1, d0, and has been tested and passed by two UKAS-accredited assessors. The pipe itself is fire tested at 820°C for 89 minutes under EN 1775:2007 Annex A.
Gastite P2 is not suitable for use as a flexible appliance connector. It must be installed in accordance with Gastite’s installation instructions (a product-specific P2 Design & Installation guide is available from Gastite), and only with Gastite XR2 fittings. Gas work must be carried out by a suitably qualified, registered gas installer in accordance with the relevant standards.
If the pipe has to run somewhere gas could collect, P2’s ribbed outer sleeve is designed to give it room to ventilate, and it comes with the matching XR2 fittings in one box. It’s flexible, so you need fewer joints, and Gastite states it’s been tested to meet the CSST Benchmark scheme and NHBC 2022 warranty requirements.
Order the Gastite® P2™ Contractors Kit DN25 x 10m – 1" BSP MT online today.
| Brand | Gastite® P2™ |
|---|---|
| Product Code | P2-KIT-DN25-10M |
| Product Type | Pre-Sleeved CSST Contractors Kit |
| Size | DN25 |
| Length | 10 Metres |
| Fittings | 2 x XR2 Straight Male Thread (1") with Jacket-Lock® |
| Tube Material | Stainless Steel 1.4306 (304L) |
| Sleeves | Inner UV-Resistant Polyethylene; Outer Ribbed UV-Resistant Polyethylene |
| Internal Diameter | 26.3mm |
| Compliance | Tested to CSST Benchmark Scheme and NHBC 2022 Warranty Requirements (per Gastite) |
| Reaction to Fire | Euroclass B-s1, d0 |
| Pipe Fire Test | 820°C for 89 minutes (EN 1775:2007 Annex A) |
| Maximum Operating Pressure | 0.5 bar |
| Operating Temperature | -40°C to 60°C |
| Fitting Compatibility | Gastite XR2 Fittings with Jacket-Lock® Only |
| Suitable Applications | Natural Gas and LPG (Installed by a Registered Gas Installer) |
