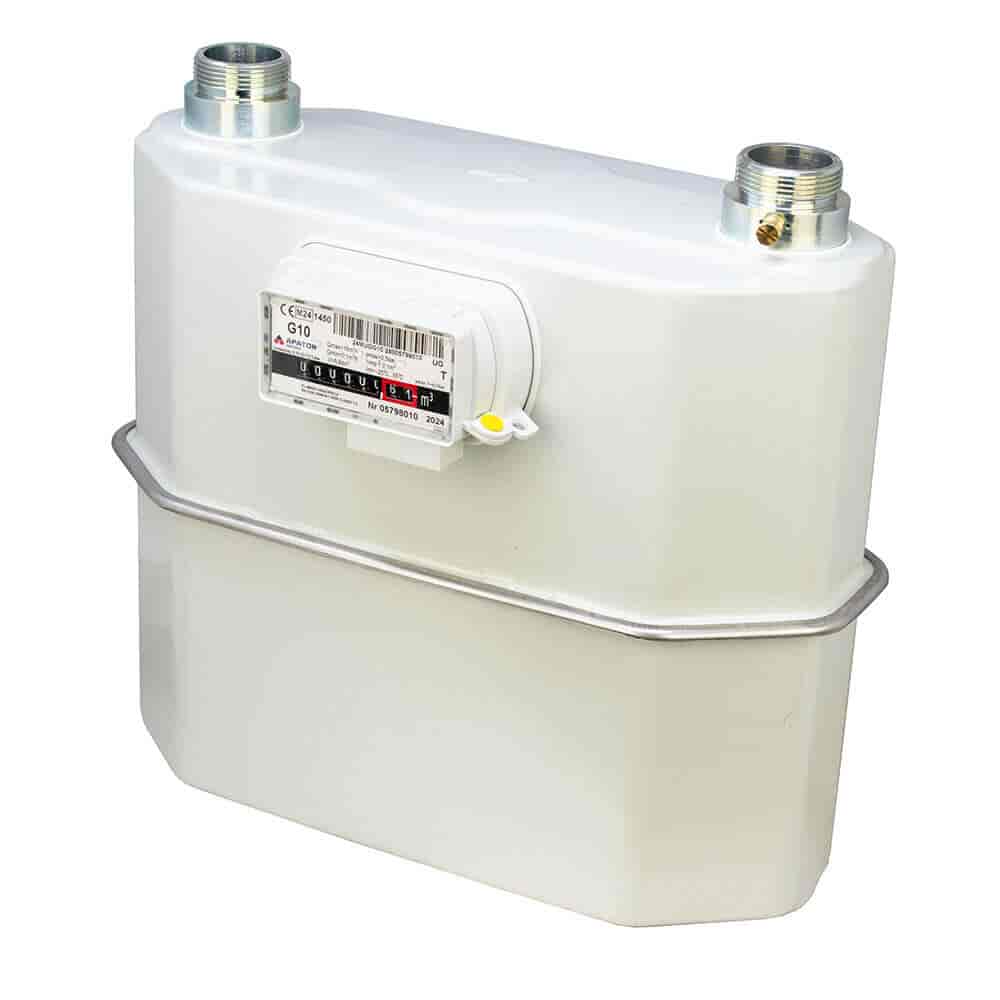

The Metrix G10L Diaphragm Gas Meter is designed for measurement of gas supplied to domestic and commercial premises, where the maximum consumption of gas is equivalent to 16m3/h of air of density of 1,2 kg/m3. Fitted with a test point.
The gas meters can be used for measurement of: Natural gas & LPG
Specification
G10 Diaphragm Gas Meter Specification
Capacity
16 m³/h
Connection
1" BS 746
Dimensions
A = 280mm
B = 395mm
C = 93mm
D = 190mm
E = 345mm
Display
Mechanical
Material
Steel
Max Capacity
16 m³/h @ 0.5 mb Pressure Loss
Max Operating Pressure
500mbar
Meter Connection size
1" BS 746
Meter Type
Diaphragm
Gas Type
Natural Gas or LPG
Test Point
Yes
Features
G10 Diaphragm Gas Meter Features
Manufactured by BS EN ISO 9001 and ISO 14001
MID approval G4-UG -4P to G16P and G1.6-UGPBS to G16PBS
G1.6 to G6 Fireproof up to 650°C @ 100mbar according to EN1359
Diaphragm gas meters, for natural gas, propane and butane, max pressure 500 mbar
