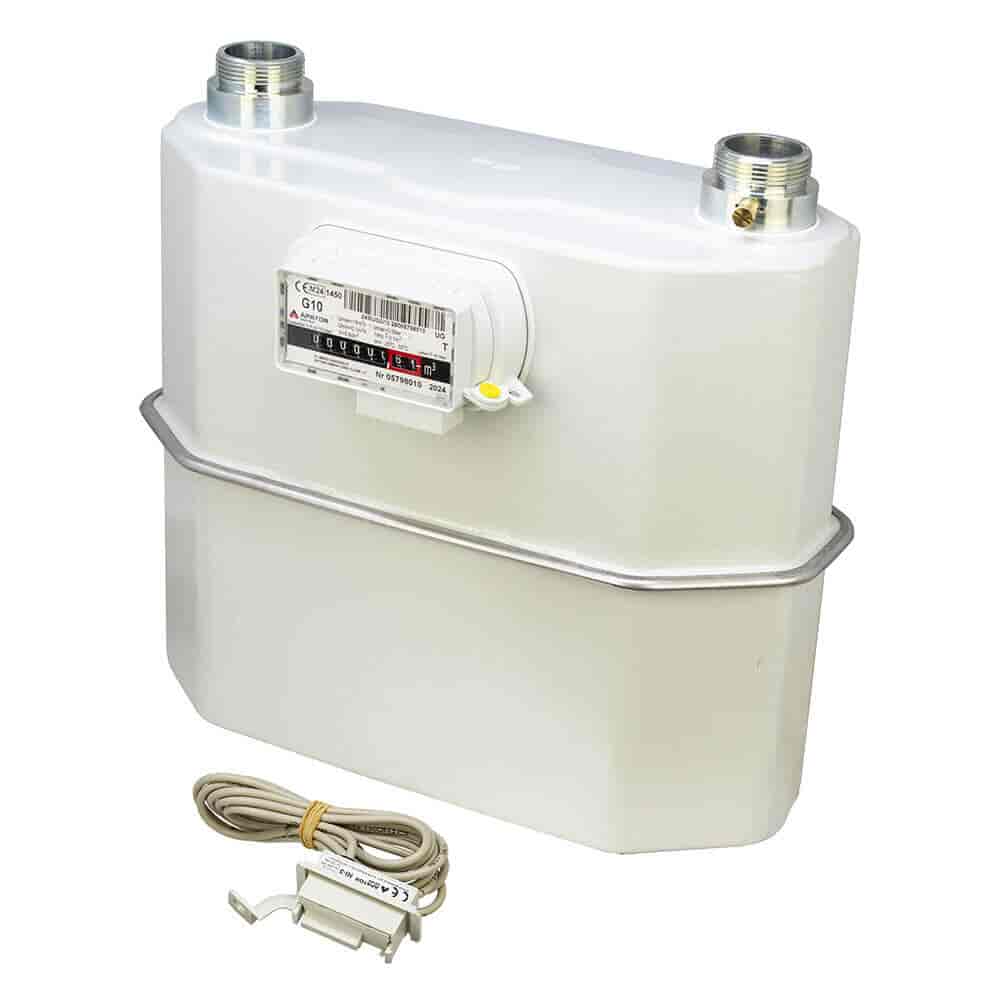

G10P Diaphragm Gas Meter with A Pulse Lead - 280mm Centres
The G10P Diaphragm Gas Meter with 280mm centres is a high-capacity gas meter that's been precision engineered for gas consumption measurement across residential, commercial and industrial installations. With a max flow of 16 m3 per hour, this meter steps up to the plate in demanding environments where you need to keep a close eye on gas usage.
It comes with a pulse plug & a 2m lead, so you can plug it straight into your existing monitoring systems, data loggers & building management systems without any hassle. The wiring colours - pulse count (green/brown) & control (white/yellow) are clearly labelled, which makes installation a whole lot simpler and less prone to mistakes.
This meter is made in Europe by a BS EN ISO 9001 certified company & it's built to last with a robust steel housing, clear metric display, a built-in test point & full certification for safety & performance. And with 280mm centre spacing, it'll fit snugly with systems that need that specific mounting configuration.
Key Features & Benefits
Accurate Measurement up to 16 m3/hr - that's ideal for high-demand domestic, commercial & industrial gas installations.
280mm Centre Connections - that's specifically designed to fit installations that need this kind of spacing.
Comes with a Pulse Plug & 2m Lead - so you can easily hook it up to your data monitoring systems.
Simple Wiring Setup - just remember pulse count is green/brown & control is white/yellow, and you're good to go.
Built to Last - a robust steel construction will withstand the toughest conditions.
Easy to Read - a clear mechanical display that gives you precise metric readings for easy energy monitoring.
Natural Gas & LPG Compatible - so you can use it with your preferred system.
Completely Certified - it's been built to BS EN ISO 9001 quality standards & sealed for accuracy.
Ideal For
Commercial & industrial sites that need high-capacity metering with pulse output.
Large residential properties with high gas usage.
Energy management systems that need live data integration.
Installations that use 280mm centre spacing - where standard layouts just won't fit.
Why Buy This Product?
This meter is a top choice for demanding installations where you need high-capacity metering, easy pulse output integration & reliable European manufacturing. And with its 280mm centre spacing, it fits in perfectly with a wide range of commercial & industrial setups.
Get high-capacity gas monitoring that's easy to use & reliable - buy the G10P Diaphragm Gas Meter now.
Specification
G10P Diaphragm Gas Meter with Pulse Plug & Lead - 280mm Centres Specification
Brand
Metrix
Product Type
Diaphragm Domestic Gas Meter
Capacity
16 m³/h
Connection
1.1/4" BS 746
Pulse Rate
0.1 m³/pulse
Display
Mechanical
Material
Steel
Max Capacity
8.5 m³/h @ 0.5 mbar Pressure Loss
Max Operating Pressure
500 mbar
Meter Connection Size
1" BS 746
Meter Type
Diaphragm
Gas Type
Natural Gas or LPG
Test Point
Yes
Pulse Plug
Yes – includes 2m lead
Dimension
See diagram (images above)
Warranty
12 Months
Features
G10P Diaphragm Gas Meter with Pulse Plug & Lead - 280mm Centres Features
Accurate 16 m³/h Measurement – Ideal for high-demand domestic, commercial and industrial gas applications.
280mm Centre Connections – Designed to fit installations requiring this specific spacing.
Pulse Plug & 2m Lead Included – Enables data integration with monitoring and management systems.
Simple Wiring Setup – Pulse count (green/brown) and control (white/yellow) for straightforward connection.
Robust Steel Construction – Built to withstand harsh conditions and long-term usage.
Clear Mechanical Display – Provides precise metric readings for simplified energy monitoring.
Natural Gas & LPG Compatible – Suitable for a wide range of system configurations.
Fully Certified – Manufactured to BS EN ISO 9001 quality standards and sealed for accuracy.
