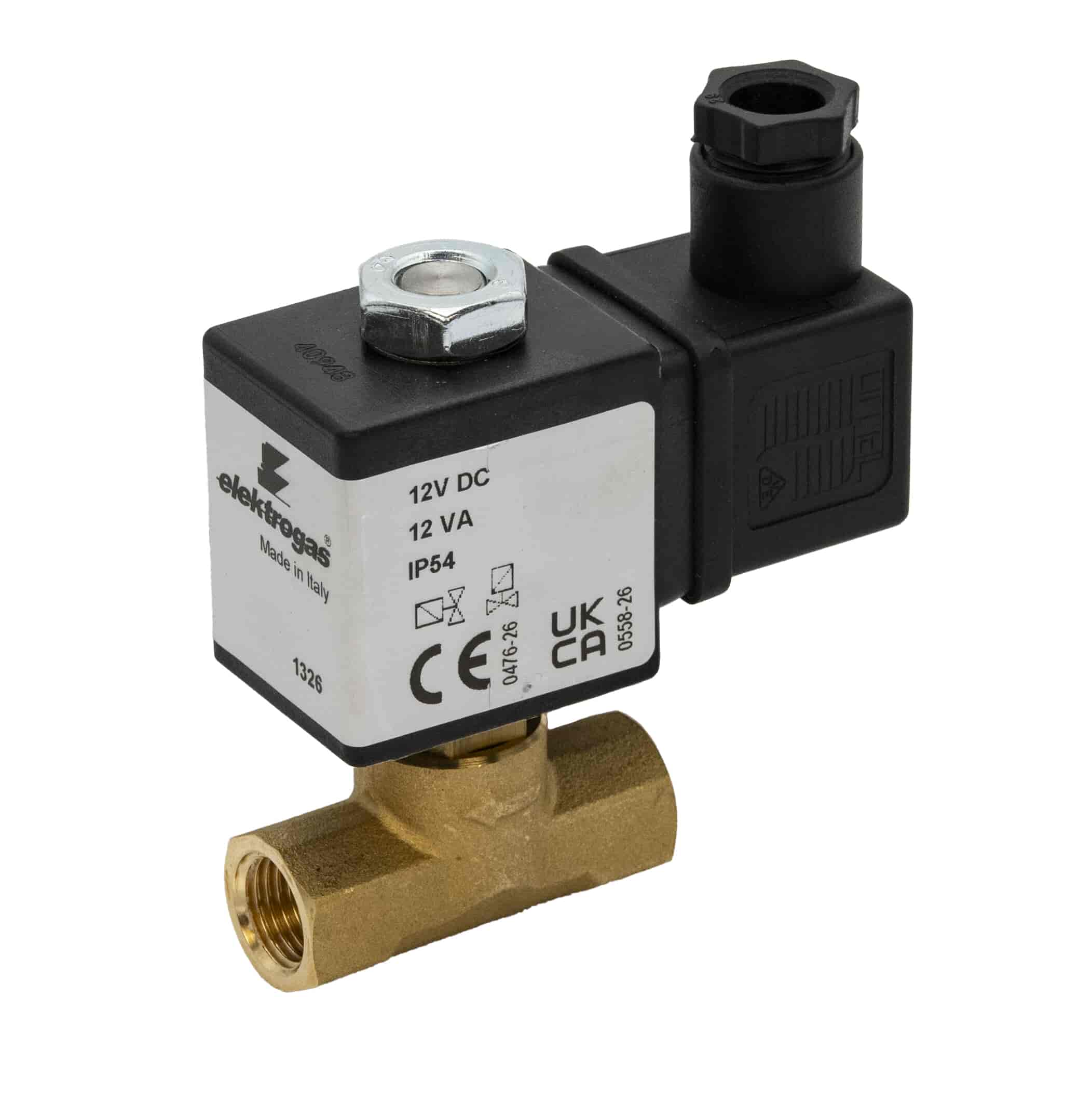

Elektrogas 12V DC Gas Solenoid Valve – 1/4" BSP Female × Female | EN161 Class A | LPG & Natural Gas
This 12V DC gas solenoid safety shut off valve has 1/4″ BSP female connections. It opens upon powering, and automatically closes upon removal of power. This fail-safe type valve is ideal for use as a gas safety application. CE approved. En161 Class A. IP54. 200 mbar maximum inlet pressure. Natural gas and LPG. Can be used with a gas alarm system and/or an emergency stop switch. Mounts in any orientation. Warranty period is one year.
The Electrogas 12V DC Solenoid Valve is a gas safety shut off valve designed specifically for use on LPG and natural gas installations that require automatic gas isolation in the event of a power outage, alarm signal from a gas detection device or activation of an emergency stop switch. When unpowered this normally closed type valve will remain closed until it receives continuous power through its wiring. If you remove the power source (either from an alarm signal sent by your gas detection equipment, from an emergency stop switch or due to a power failure), the valve will close in less than one second thereby shutting off the gas supply.
The valve has 1/4″ BSP female x female connections which allows it to be installed in line within your existing gas piping. Its high level of protection against dust and moisture (IP54 rating) makes it suitable for use in wet/damp areas and can also withstand being installed in open or harsh environments. The EN161 Class A approval represents the European standard for automatic shut off valves for use in gas supply systems.
Key Features & Benefits
Normally Closed - Fail-Safe - Valve closes automatically when power is removed - gas stops on power failure, alarm signal or emergency stop activation.
Closes in Under 1 Second - Fast automatic isolation on power interruption.
12V DC Operation - Compatible with 12V electrical systems - suitable for marine, caravan, motorhome and domestic installations.
Wires to Alarm Systems and Emergency Stop Switches - Direct integration with gas alarm panels and emergency knock-off switches for automatic gas shut-off.
EN161 Class A Approved, CE Marked - European standard for automatic shut-off valves in gas systems.
IP54 Protection - Dust-tight and splash-proof - suitable for exposed or damp locations.
1/4" BSP Female × Female - In-line installation in 1/4" gas pipework.
200mbar Maximum Inlet Pressure - Suitable for low-pressure (30mbar and higher) gas distribution systems.
Mounts in Any Orientation - Install in any position - observe flow direction arrow on body.
Natural Gas and LPG - Compatible with both gas types.
Compact - 75 × 46 × 30mm, 0.27kg
Automatic Reset - Resets automatically when power is restored - no manual reset required.
Ideal For
Gas safety shut-off in caravan, motorhome and marine 12V systems
Integration with gas alarm panels for automatic gas isolation on alarm
Emergency stop switch gas isolation
Residential, commercial and industrial gas safety installations requiring 12V DC solenoid valve
EN161 Class A, IP54, 12V DC gas solenoid valve - closes automatically on power loss. Order today for fast shipping.
Specification
Elektrogas 12V DC Gas Solenoid Valve – 1/4" BSP Female Specification
Brand
Elektrogas
Product Type
Normally Closed Gas Solenoid Valve
Voltage
12V DC
Connection
1/4" BSP female × female (in-line)
Nominal Bore
4mm
Max Inlet Pressure
200 mbar
Closing Time
Less than 1 second
Reset Type
Automatic (on power restore)
Normal State
Normally closed (opens when powered)
Applicable Gases
Natural gas & LPG
IP Rating
IP54
Approvals
CE, EN161 Class A
Ambient Temperature
15°C to +60°C
Dimensions (H × W × D)
75 × 46 × 30mm
Weight
0.27 kg
Warranty
1 year
Features
Elektrogas 12V DC Gas Solenoid Valve – 1/4" BSP Female Features
Normally Closed - Fail-Safe - Valve closes automatically when power is removed - gas stops on power failure, alarm signal or emergency stop activation.
Closes in Under 1 Second - Fast automatic isolation on power interruption.
12V DC Operation - Compatible with 12V electrical systems - suitable for marine, caravan, motorhome and domestic installations.
Wires to Alarm Systems and Emergency Stop Switches - Direct integration with gas alarm panels and emergency knock-off switches for automatic gas shut-off.
EN161 Class A Approved, CE Marked - European standard for automatic shut-off valves in gas systems.
IP54 Protection - Dust-tight and splash-proof - suitable for exposed or damp locations.
1/4" BSP Female × Female - In-line installation in 1/4" gas pipework.
200mbar Maximum Inlet Pressure - Suitable for low-pressure (30mbar and higher) gas distribution systems.
Mounts in Any Orientation - Install in any position — observe flow direction arrow on body.
Natural Gas and LPG - Compatible with both gas types.
Compact - 75 × 46 × 30mm, 0.27kg
Automatic Reset - Resets automatically when power is restored - no manual reset required.
