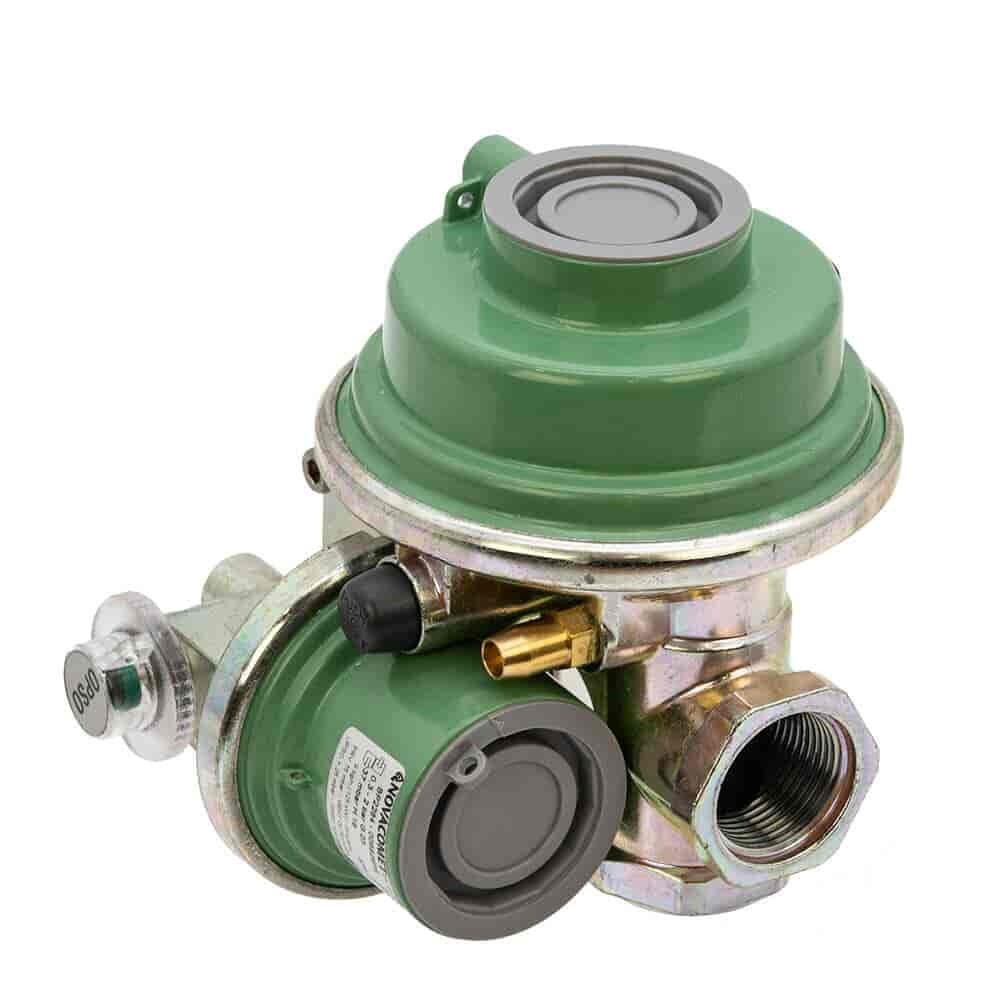

The Clesse BP2284 37mbar OPSO/UPSO LPG Meterbox Regulator is a high-performance, safety-enhanced second-stage regulator for domestic and commercial LPG installations. Produces up to 9kg/hr of propane gas. Precision pressure control with dual inlet and outlet for angled meterbox or straight inline installations.
Designed by Clesse, a leading LPG control systems manufacturer, the BP2284 ensures safe and efficient gas flow with built-in Over Pressure Shut Off (OPSO) and Under Pressure Shut Off (UPSO) and limited relief valve for added safety.
With industry leading reliability and dual safety the Clesse BP2284 37mbar LPG Regulator gives you peace of mind for installers and homeowners. Dual connection design and OPSO/UPSO protection makes it perfect for new installations and regulator replacements in meterboxes or inline.
Upgrade your LPG installation with the Clesse BP2284 37mbar OPSO/UPSO Meterbox Regulator – 9kg/hr. Buy now for safety, ease of installation and long life from Clesse – the LPG regulation experts.
| Brand | Clesse |
|---|---|
| Approvals | BS EN 16129:2013 |
| Capacity | 9 kg/hr |
| Inlet | 2 x 1/2" Bsp Female (one with plug) |
| Outlet | 3/4" Bsp Female |
| Inlet Pressure | 0.3 to 2 bar |
| Operating Pressure | 37 mbar |
| PRV | 75 mbar |
| OPSO | Yes (100 mbar) |
| UPSO | Yes (25 mbar) |
| Pressure Test Point | Yes |
| Vent Postion | Fixed – Suitable for plastic tube venting |
| Stage | Second Stage Low Pressure |
| Suitable Applications | Domestic & Commercial Propane (LPG) Low Pressure Systems |
| Mounting Orientation | Angled Meterbox or Inline Installation |
| Construction | Durable die-cast zinc body with corrosion-resistant components |
| Product Type | 2nd Stage Propane Tank Regulator with OPSO/UPSO |
| Warranty | 2 Years |
Dual Inlet & Outlet Ports – Flexible configuration options for angled or inline installation, reducing installation time and complexity.
Advanced Safety Protection – Integrated OPSO (Over Pressure Shut Off) and UPSO (Under Pressure Shut Off) systems with clear visual indication of activation.
User-Friendly Reset Function – Easy push-button UPSO reset allows for quick reactivation after system shutdown.
Efficient Venting System – Features a vent port suitable for plastic tube piping away, ensuring safe exhaust of vented gases.
Limited Relief Valve – Provides additional safety by controlling minor pressure fluctuations within the system.
Optimised for Low Inlet Pressure – Operates efficiently with inlet pressures as low as 300mbar, maintaining stable outlet performance at 37mbar.
Built-In Pressure Test Point – Simplifies commissioning and maintenance testing.
Reliable & Durable – Manufactured to BS EN 16129:2013 standards and backed by a 2-year warranty for total peace of mind.
