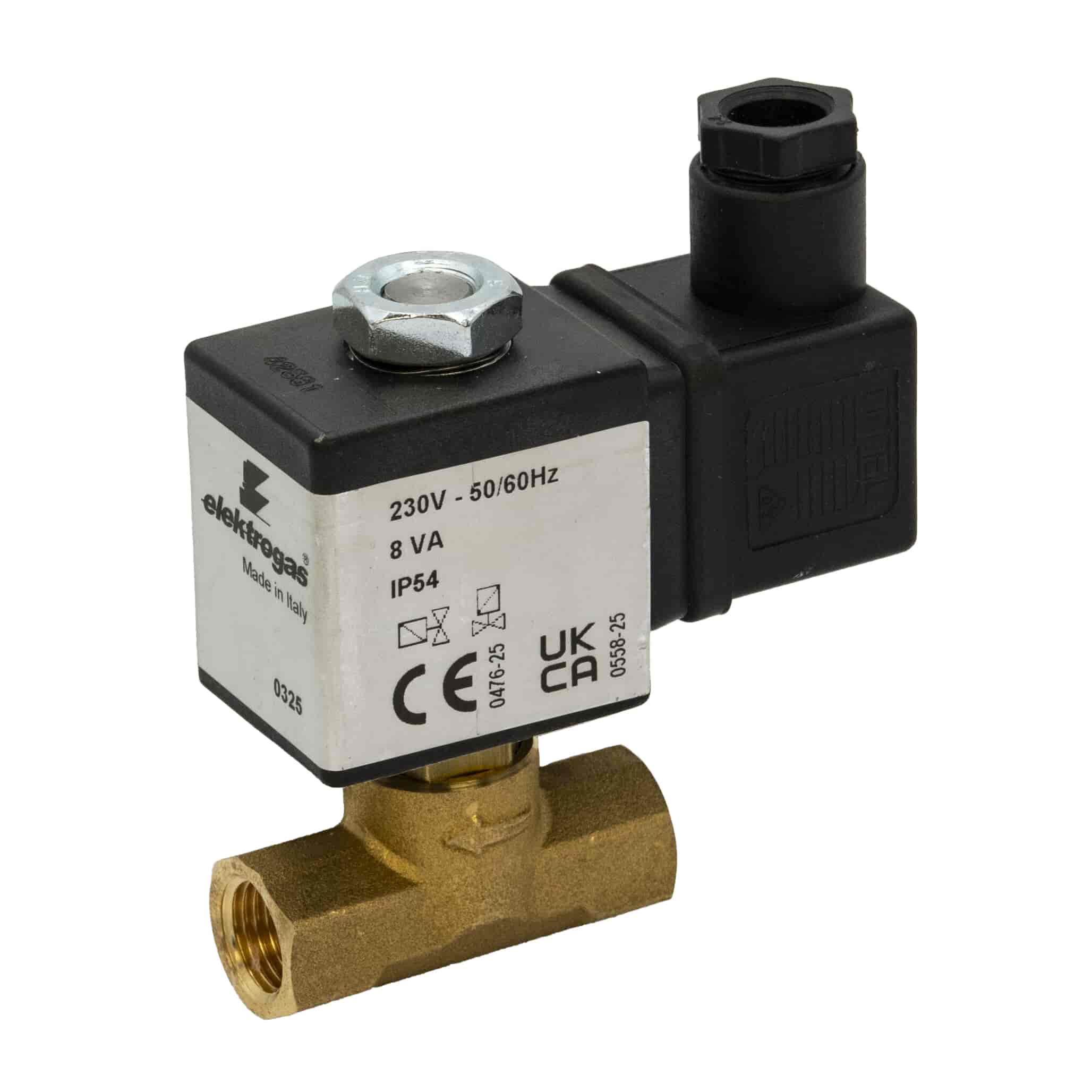

Elektrogas 230V AC Gas Solenoid Valve – 1/4" BSP Female × Female | EN161 Class A | LPG & Natural Gas
Normally closed 230V AC gas solenoid safety shut-off valve with 1/4" BSP female connections. The mains-voltage equivalent of the 12V DC version — same specification and approvals, operating on 230V AC (±10%/-15%, 50–60Hz) for mains-connected installations. CE approved, EN161 Class A. IP54. 200mbar max. Natural gas and LPG. Wires to alarm systems and emergency stop switches. 1-year warranty.
Key Features & Benefits
Normally Closed - Fail-Safe - Closes automatically when power is removed - gas stops on power failure, alarm trigger or emergency stop activation.
230V AC Operation (50–60Hz) - For mains-connected residential, commercial and industrial installations. Voltage tolerance: +10% / -15%.
Closes in Under 1 Second - Fast automatic isolation on power interruption.
Wires to Alarm Systems and Emergency Stop Switches - Direct integration with gas alarm panels and emergency shut-off switches.
EN161 Class A Approved, CE Marked - European standard for automatic shut-off valves in gas systems.
IP54 Protection - Dust-tight and splash-proof.
1/4" BSP Female × Female - In-line installation in 1/4" gas pipework.
200mbar Maximum Inlet Pressure
Automatic Reset - Resets on power restore - no manual reset required.
Mounts in Any Orientation - Observe flow direction arrow on body.
Natural Gas and LPG
Compact - 75 × 46 × 30mm, 0.27kg
Ideal For
Mains-connected gas safety shut-off in residential, commercial and industrial installations
Integration with 230V AC gas alarm panels for automatic gas isolation
Emergency stop switch gas isolation on mains-powered systems
EN161 Class A, IP54, 230V AC gas solenoid valve - closes automatically on power loss.Order today for fast shipping. Also available: 12V DC version for 12V systems.
Specification
Elektrogas 230V AC Gas Solenoid Valve – 1/4" BSP Female Specification
Brand
Elektrogas
Product Type
Normally Closed Gas Solenoid Valve
Voltage
230V AC (+10% / -15%) 50–60 Hz
Connection
1/4" BSP female × female (in-line)
Nominal Bore
4mm
Max Inlet Pressure
200 mbar
Closing Time
Less than 1 second
Reset Type
Automatic (on power restore)
Normal State
Normally closed (opens when powered)
Applicable Gases
Natural gas & LPG
IP Rating
IP54
Approvals
CE, EN161 Class A
Ambient Temperature
15°C to +60°C
Dimensions (H × W × D)
75 × 46 × 30mm
Weight
0.27 kg
Warranty
1 year
Features
Elektrogas 230V AC Gas Solenoid Valve – 1/4" BSP Female Features
Normally Closed - Fail-Safe - Closes automatically when power is removed - gas stops on power failure, alarm trigger or emergency stop activation.
230V AC Operation (50–60Hz) - For mains-connected residential, commercial and industrial installations. Voltage tolerance: +10% / -15%.
Closes in Under 1 Second - Fast automatic isolation on power interruption.
Wires to Alarm Systems and Emergency Stop Switches — Direct integration with gas alarm panels and emergency shut-off switches.
EN161 Class A Approved, CE Marked - European standard for automatic shut-off valves in gas systems.
IP54 Protection - Dust-tight and splash-proof.
1/4" BSP Female × Female - In-line installation in 1/4" gas pipework.
200mbar Maximum Inlet Pressure
Automatic Reset - Resets on power restore - no manual reset required.
Mounts in Any Orientation - Observe flow direction arrow on body.
Natural Gas and LPG
Compact - 75 × 46 × 30mm, 0.27kg
