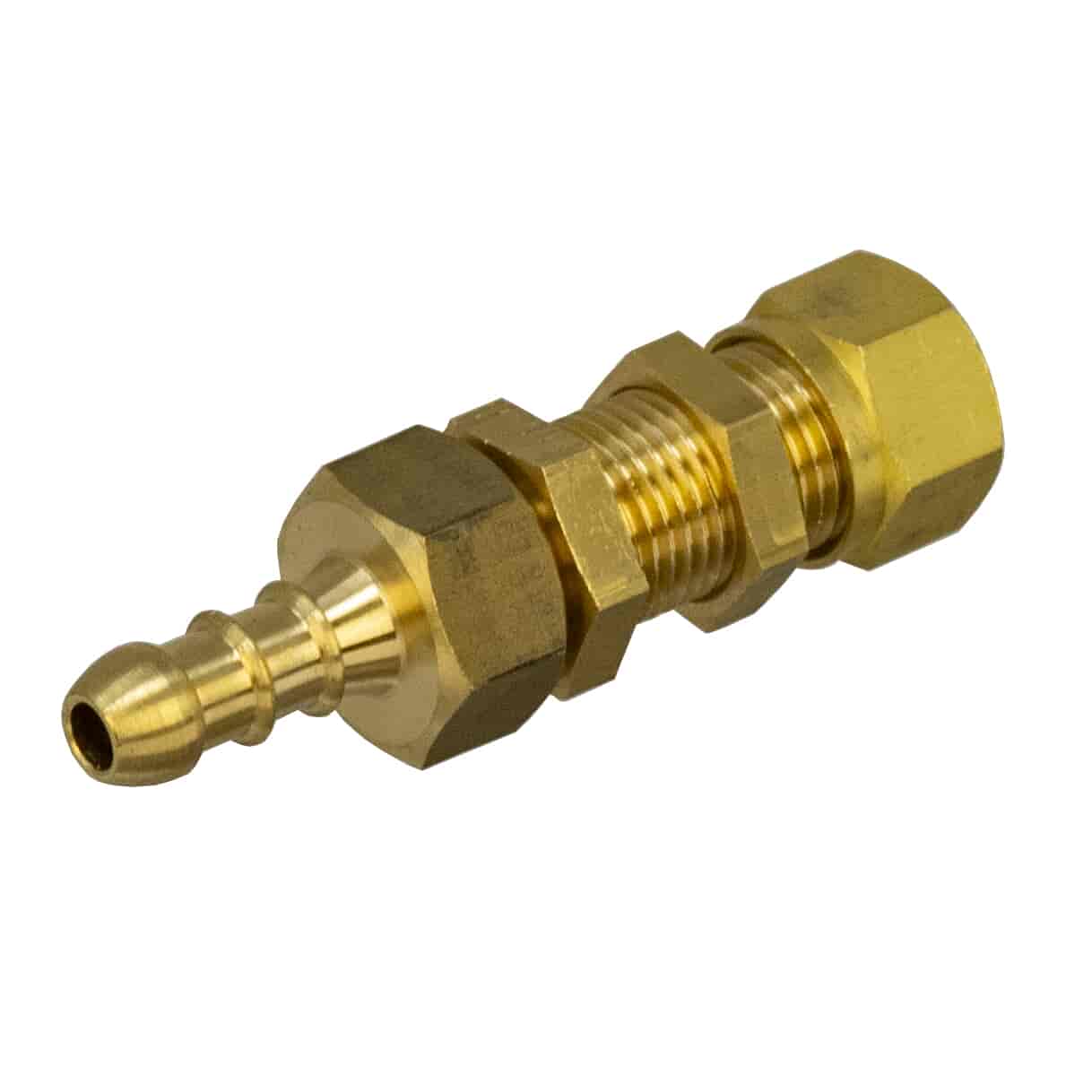

A brass bulkhead coupling has been used as a transition fitting for caravan, motorhome and marine gas installations. It consists of a brass fitting which allows the 10mm compression nut and olive end of the copper rigid gas pipe passing through the locker wall and then transitions into the 10mm OD Fulham barbed nipple (accepting an 8mm bore gas hose) for connecting to a heater, cooker or other LPG appliance.
It passes through the locker wall/bulkhead panel using the M16 x 1.5 bulkhead thread allowing a maximum of 12 mm thick panel. This results in one approved fitting being able to provide a clean, leak free pipe penetration from the rigid copper pipe running through the locker wall into a flexible gas hose leading to an appliance.
Key Features & Benefits
On the copper pipe side it accepts a 10mm compression nut and olive termination of the rigid copper gas pipe; there is no need to use solder.
On the appliance side it accepts a 10mm OD barbed nipple which can accept a 8mm bore gas hose for connection to various appliances such as heaters, cookers etc.
The bulkhead thread used on this fitting is M16 x 1.5 and will allow up to 12mm of panel thickness thus making it suitable for most types of caravan/motor home/marine gas locker panels.
As it complies with both BS2051 part 1 and DIN EN 1254-2, therefore complying with British and European standards relating to gas fittings.
With a pressure rating exceeding 135 bar, far in excess of the domestic/mobile LPG installation pressures.
Temperature operating range of -60°c to +300°c.
Comes supplied complete with a copper olive so is ready to be fitted.
Made from high-quality British-made brass.
Ideal For
Transition fitting for caravan/motorhome gas locker installations — from copper rigid gas pipe to flexible gas hose at the locker wall.
Transition fitting for marine gas installations — e.g. narrow boats, yachts and motorboats.
Any type of installation that requires a transition from copper rigid pipe to a gas hose connection that uses a barbed connector.
The correct single fitting for a copper pipe bulkhead penetration terminating in a gas hose Fulham connection. In stock and ready to ship.
Specification
Bulkhead Coupling - 10mm Compression x Fulham Hose Nozzle Specification
Brand
Hamilton Gas Products
Product Type
Compression Bulkhead Fitting – Copper Pipe to Gas Hose Transition
Pipe Side Connection
10mm compression nut & olive (10mm copper pipe)
Appliance Side Connection
Fulham hose nozzle – 10mm OD barbed nipple for 8mm bore gas hose
Bulkhead Thread
M16 × 1.5
Bulkhead Thread Length
12mm
Maximum Bulkhead Thickness
12mm
Pressure Rating
135 bar (1,958 psi)
Temperature Range
-60°C to 300°C (-76°F to 572°F)
Material
Brass
Approvals
BS2051 Part 1 & DIN EN 1254-2
Supplied With
Copper olive
Warranty
12 months
Features
Bulkhead Coupling - 10mm Compression x Fulham Hose Nozzle Features
10mm Compression on Copper Pipe Side — Connects to the rigid 10mm copper gas pipe run with compression nut and olive — no soldering required.
Fulham Hose Nozzle on Appliance Side — 10mm OD barbed nipple accepts 8mm bore gas hose for connection to heaters, cookers and other LPG appliances.
M16 × 1.5 Bulkhead Thread — 12mm Maximum Panel Thickness — Suits the typical wall thickness of caravan, motorhome and marine gas locker panels.
BS2051 Part 1 & DIN EN 1254-2 Compliant — British and European standards for gas fittings.
135 Bar Pressure Rating — Well in excess of LPG domestic and mobile gas installation pressures.
-60°C to 300°C Operating Range
Supplied with Copper Olive — Ready to fit.
High-Quality British-Made Brass
