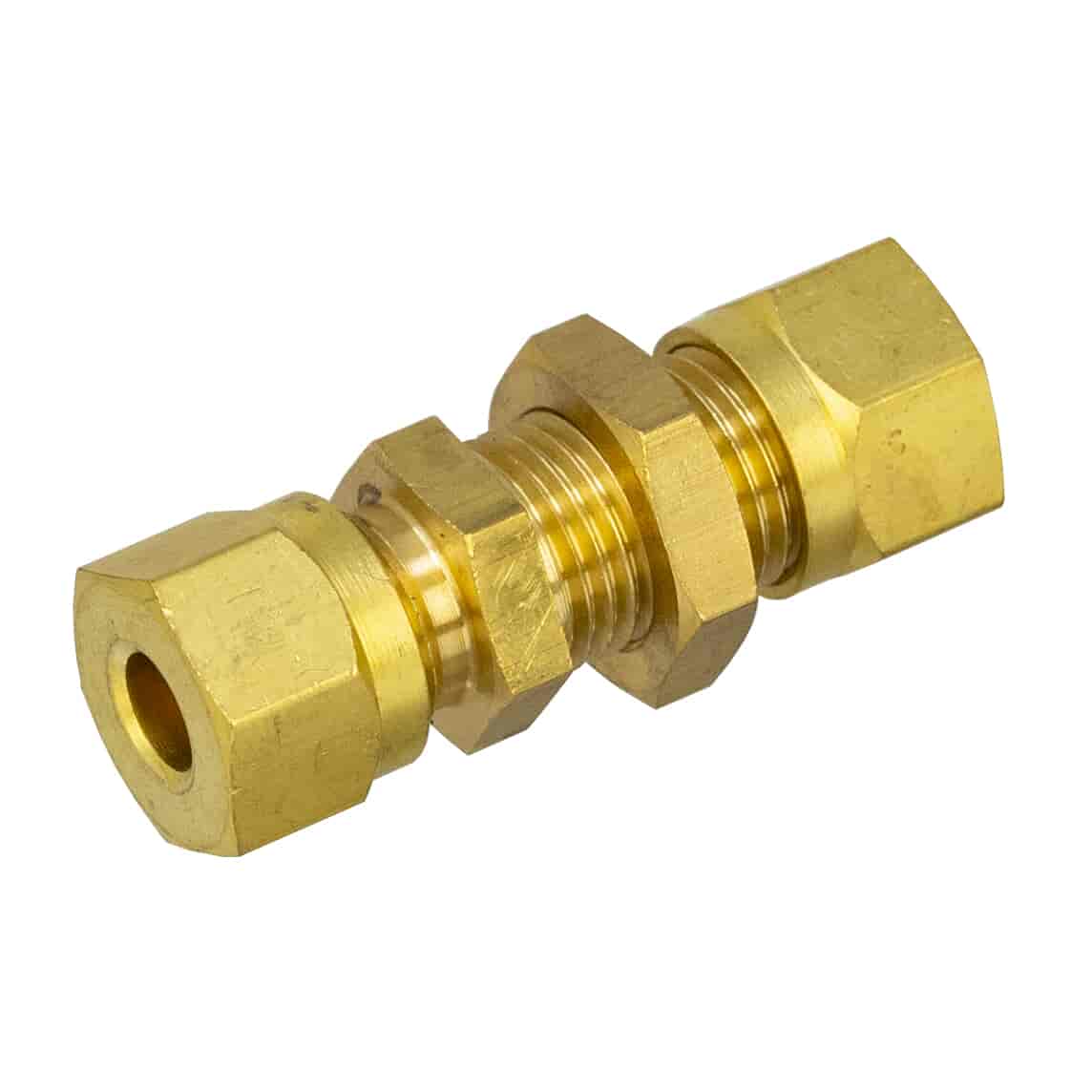

The 1/4" compression bulkhead coupler has been designed to be used as a route for 1/4" copper gas pipes through locker walls and bulkheads. It will meet the requirements of BS2051 part 1 and DIN EN 1254-2. The coupler has an M12 x 1 bulk head thread which allows it to penetrate into a wall up to 10 mm thick. The couplers are rated at 135 bar and can operate down to – 60 degrees C.
The coupler makes use of two 1/4" compression ends for making the connections either side of the bulkhead. This means that when fitted together they provide a sealed connection using copper olives that do not require soldering. This makes them ideal for providing a quick and easy way to connect or disconnect the gas supply lines.
As this product is manufactured to BS2051 part 1 and complies with DIN EN 1254-2 and also meets the operational parameters of most domestic gas installations. The product has been tested to withstand operating temperatures of -60°C to 300°C. Therefore, the product would be suitable for most applications including off grid installations and marine vessels.
Key Features & Benefits
Routing an 1/4" copper gas pipe through a locker wall or bulkhead.
Both sides have 1/4" compression connections made with copper olives.
No soldering is required to make or break the connections.
The M12 x 1 bulkhead thread is designed for panels/walls up to 10mm in thickness.
Complies with British Standard BS2051 part 1 and European Standard DIN EN 1254-2.
Operates safely at up to 135bar pressure.
Operating temperature range is between -60°C to 300°C.
Ideal For
Caravan & motorhome gas locker installations with a fixed bulkhead regulator
Marine gas installations — narrowboats, yachts & motorboats
Off-grid & mobile home gas installations
Any installation requiring a neat, secure gas pipe penetration through a panel or partition
British-made, code-compliant 1/4" gas pipe bulkhead fitting — supplied with copper olives. Order today!
Specification
1/4" Bulkhead Compression Coupling Specification
Brand
Hamilton Gas Products
Product Type
Compression Bulkhead Coupling
Pipe Size
1/4"
Connections
1/4" compression nut & olive – both sides
Bulkhead Thread
M12 × 1
Bulkhead Thread Length
10mm
Maximum Bulkhead Thickness
10mm
Pressure Rating
135 bar (1,958 psi)
Temperature Range
-60°C to 300°C (-76°F to 572°F)
Material
Brass
Approvals
BS2051 Part 1 & DIN EN 1254-2
Supplied With
Copper olives
Warranty
12 months
Features
1/4" Bulkhead Compression Coupling Features
Routes 1/4" Copper Gas Pipe Through a Locker Wall or Bulkhead - The purpose-designed solution for clean, code-compliant gas pipe penetrations through panel walls.
1/4" Compression Connections — Both Sides - M12 × 1 union nuts with copper olives. No soldering required, leak-free compression seal.
M12 × 1 Bulkhead Thread — 10mm Maximum Panel Thickness - Suits the wall thickness of standard caravan, motorhome and marine gas lockers.
BS2051 Part 1 & DIN EN 1254-2 Compliant — British and European standards for gas fittings.
135 Bar Pressure Rating — Substantially above the pressures of any LPG domestic or mobile gas installation.
-60°C to 300°C Operating Range — Suitable for all gas installation environments.
