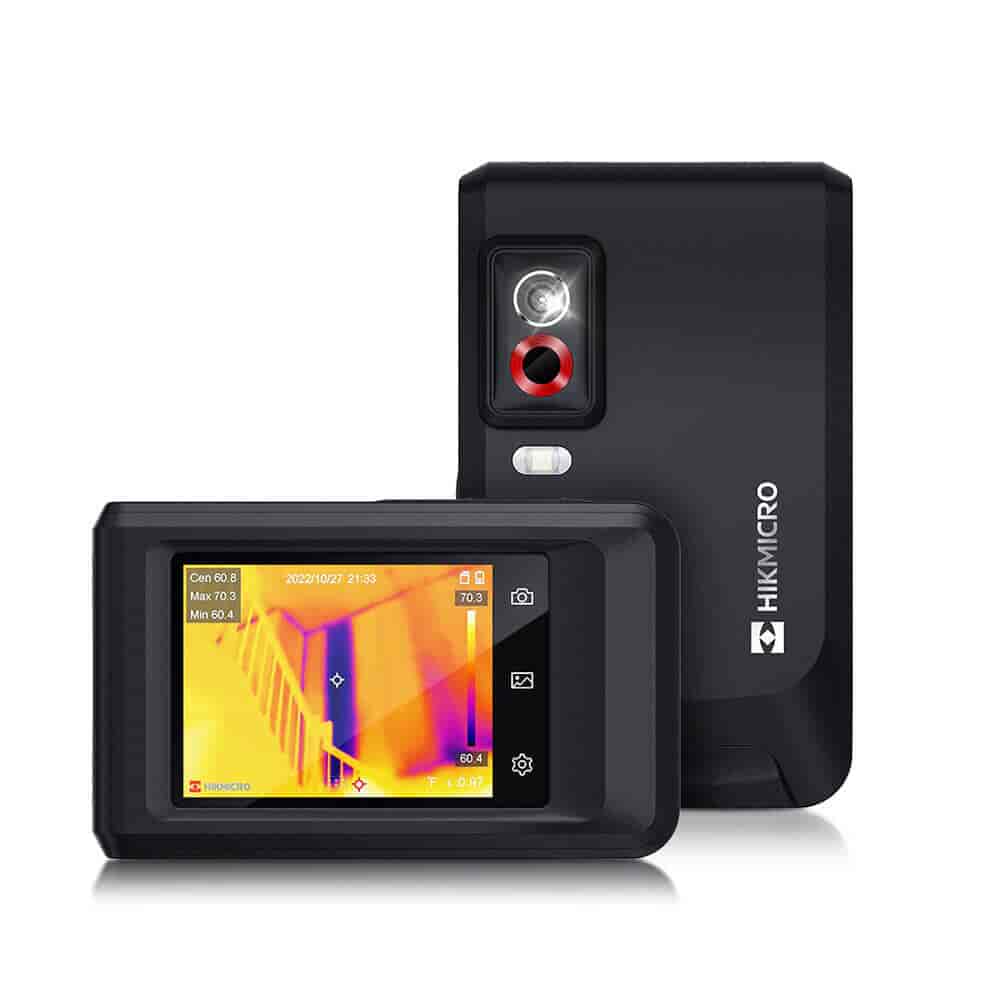

Hikmicro Pocket 2 Thermal Imaging Camera (POCKET2)
The Hikmicro Pocket 2 Thermal Camera is a small but capable thermal imager for professionals in building inspection, HVAC, electrical diagnostics and industrial maintenance. Compact enough to fit in a pocket and packed with features, it combines a 256 x 192 VOx thermal sensor (49,152 pixels) with an 8MP optical lens for clear thermal and visual imaging.
With a wide temperature range from -20°C to +400°C and accuracy of ±2°C/±2%, the Pocket 2 delivers reliable results in demanding environments. A smooth 25Hz frame rate, 3.5" LCD touchscreen and multiple imaging modes (Thermal, Optical, Fusion, PIP) make it an intuitive tool for fast fault detection and reporting.
Key Features & Benefits
High-Resolution Thermal Sensor: 256 x 192 VOx detector with NETD <40 mK for precise heat detection.
8MP Optical Lens: Captures clear visual images to overlay or fuse with thermal data for better clarity.
Wide Temperature Range: Measures from -20°C to +400°C with ±2°C/±2% accuracy for professional results.
3.5" LCD Touchscreen: 640 x 480 high-resolution display with intuitive controls and 1-tap span adjustment.
Multiple Imaging Modes: Thermal, Optical, Fusion and Picture-in-Picture (PIP) for various inspections.
Smart Connectivity: Wi-Fi & Bluetooth for real-time image sharing, analysis and report generation via Hikmicro Viewer App or Analyser PC software.
Onboard Storage: 16GB internal memory holds up to 60,000 radiometric images.
Built-In Tools: Speaker, microphone, LED torch and high-temperature alarms (audio/visual).
Rugged & Reliable: IP54 rated and drop-tested to 2m, designed for industrial use.
Portable & Long Runtime: Compact size and 4-hour battery life, suited to fieldwork.
Ideal For
Building inspectors, insulation failures, air leaks, water ingress.
Industrial professionals working in tough environments.
Why Buy This Product?
An 8MP visual lens gives noticeably clearer context for fusion and picture-in-picture images than the 0.3MP cameras found on the entry-level Hikmicro models, which matters when producing reports that need to clearly show where an issue sits on a wall, panel or piece of equipment. A tiered warranty — 3 years on the device and 10 years on the sensor — reflects real confidence in the core imaging component's longevity.
Order the Hikmicro Pocket 2 Thermal Imaging Camera online today.
Specification
Hikmicro Pocket 2 Thermal Imaging Camera Specification
Brand
Hikmicro
Product Type
Thermal Imaging Camera
Model
Pocket 2
Thermal Resolution
256 x 192 (49,152 Pixels)
Optical Camera
8 MP
NETD Sensitivity
<40 mK (@25°C, F#=1.0)
Frame Rate
25 Hz
Field of View
50° x 37.2°
Temperature Range
-20°C to +400°C (-4°F to 752°F)
Accuracy
±2°C / ±2% of Reading
Image Modes
Thermal, Optical, Fusion, PIP
Colour Palettes
7 (White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain)
Display
3.5" LCD Touchscreen, 640 x 480
Storage
16GB Internal (~60,000 Images)
File Format
Radiometric JPEG, MP4 Video
Connectivity
Wi-Fi (2.4/5 GHz), Bluetooth 4.2, USB-C
Alarms
Audio/Visual High-Temp Alerts
Extra Functions
LED Torch, Microphone, Buzzer, Text Notes (200 Characters)
Battery Life
Up to 4 Hours Continuous Use
Protection
IP54, Drop-Tested 2m
Dimensions
138 x 84 x 22mm
Weight
Approx. 218-227g
Warranty
2 Years (Battery), 3 Years (Device), 10 Years (Sensor)
Included
Pocket 2 Camera, Pouch, Wrist Strap, USB Cable, Power Supply, Calibration Certificate, Quick Start Guide
Features
Hikmicro Pocket 2 Thermal Imaging Camera Features
High-Resolution Thermal Sensor: 256 x 192 VOx detector with NETD <40 mK for precise heat detection.
8MP Optical Lens: Captures clear visual images to overlay or fuse with thermal data for better clarity.
Wide Temperature Range: Measures from -20°C to +400°C with ±2°C/±2% accuracy for professional results.
3.5" LCD Touchscreen: 640 x 480 high-resolution display with intuitive controls and 1-tap span adjustment.
Multiple Imaging Modes: Thermal, Optical, Fusion and Picture-in-Picture (PIP) for various inspections.
Smart Connectivity: Wi-Fi & Bluetooth for real-time image sharing, analysis and report generation via Hikmicro Viewer App or Analyser PC software.
Onboard Storage: 16GB internal memory holds up to 60,000 radiometric images.
Built-In Tools: Speaker, microphone, LED torch and high-temperature alarms (audio/visual).
Rugged & Reliable: IP54 rated and drop-tested to 2m, designed for industrial use.
Portable & Long Runtime: Compact size and 4-hour battery life, suited to fieldwork.
