The Anton Sprint Pro1 Multifunction Flue Gas Analyser kit is a versatile tool designed to measure carbon monoxide (CO), oxygen (O2), and temperature. It also calculates combustion efficiency, CO/CO2 ratio, and carbon dioxide (CO2) levels, making it ideal for professionals working with oil-burning combustion systems and commissioning new boilers.
User-Friendly Operation
Intuitive Interface: The Anton Sprint Pro1 features easily navigated menus, ensuring smooth operation.
Clear Digital Display: Readings are shown on a high-contrast screen, providing clear visibility even in challenging conditions.
Large Push Buttons: Designed for easy use during inspections, the large buttons enhance usability.
Prompts and Warnings: On-screen prompts and warnings assist users throughout the inspection process.
Robust and Reliable Design
Ergonomic Construction: Built to withstand challenging conditions, the Anton Sprint Pro1 offers a robust and ergonomic design.
Double Condensate Trap: Featuring a new, easy-to-empty condensate trap with a washable particulate filter, this analyser provides double protection against moisture ingress, reducing downtime.
USB Charging: The device charges via a USB point, which also facilitates printer connections.

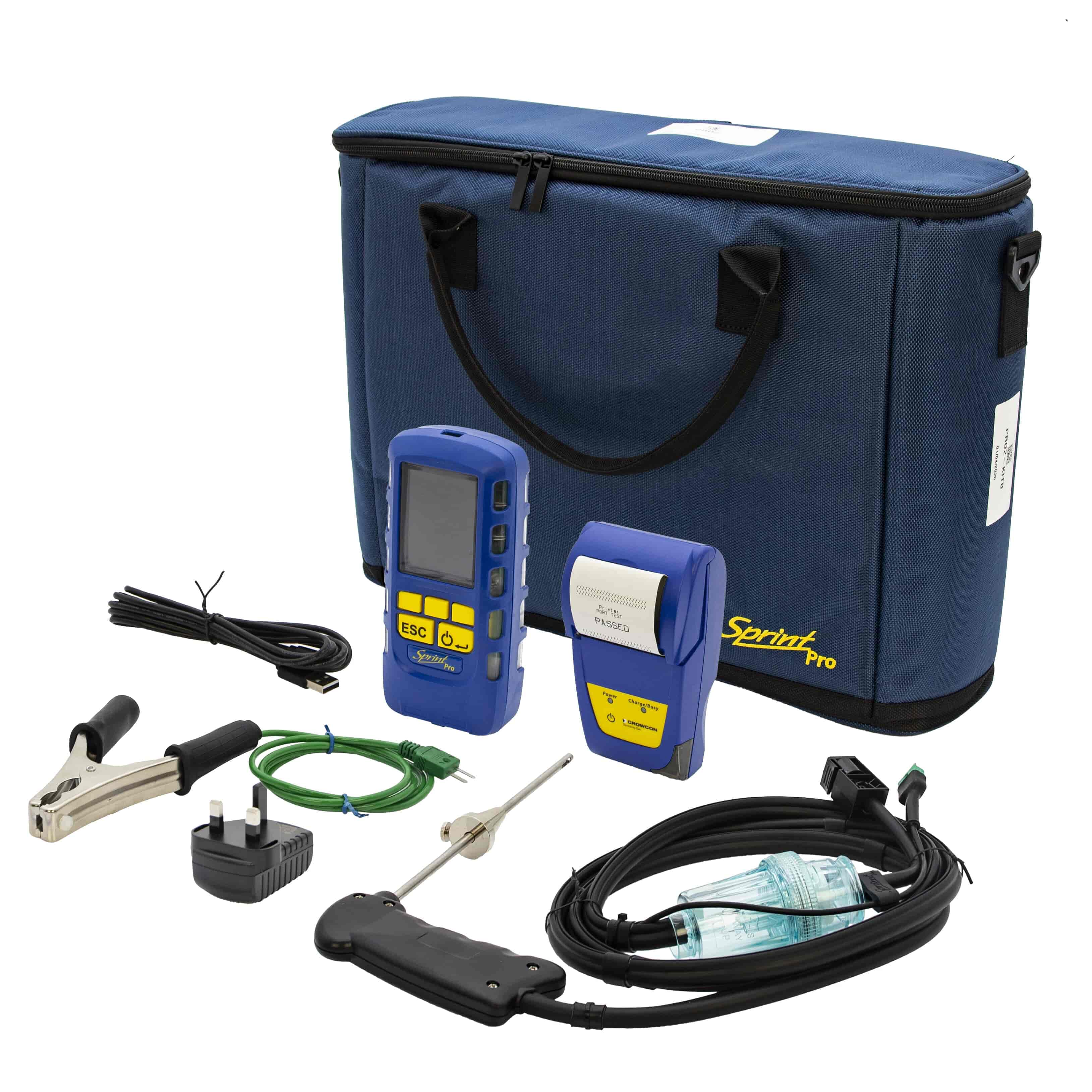

Complete Package
The Anton Sprint Pro1 comes with everything you need for efficient operation:
Carry case
Flue gas probe
Pro Infrared Magnetic Printer (USB Charging)
USB charger with lead
Spare dust filter
AS/10 Clamp Pipe Temperature Probe x
Certificate of Calibration & CD Rom/quick start guide
Advanced Condensate Trap
A standout feature of the Anton Sprint Pro1 is its advanced double condensate trap. This system prevents moisture from reaching the analyser pump, ensuring reliable operation. The robust trap includes a moisture filter to block ingress and a second filter at the click-in connection for added protection. The switch from paper to foam for the particle filter allows for quick drying, eliminating the need for a second filter.
Ideal for Professionals
The Anton Sprint Pro1 Multifunction Flue Gas Analyser kit is perfect for plumbers, oil and commissioning engineers, and those working with oil-burning combustion systems. Its advanced features, robust design, and user-friendly operation make it a reliable and efficient choice for any professional in the field.
Specification
Anton Sprint Pro 1 Multifunction Flue Gas Analyser Kit Specification
Manufacturer
Anton by Crowcon
Product Type
Flue Gas Analyser
Standards
EN 50379-1, EN 50379-3, BS 7967
CO Range
Calculated range: 0 to 21%, Resolution: 0.1%, Accuracy: ±0.3%
Flue Temperature
Range : 5° C to 400° C, resolution : 1° C, accuracy : ±2° C or 1.5% of reading
Gas Measurements
Measures and calculates O₂, CO, CO₂, CO/CO₂ ratio, excess air, temperature and efficiency
Hose Length
2.146 m
Battery Life
Up to 14 hrs - Li-ion Rechargeable Battery
Max. Temperature
K-Type thermocouple measurement range: -50° C to 1000° C, Accuracy: ±2° C or 1.5% of reading
Operating Temperature
-10°C to 50°C
Temperature Measurements
Differential, Flow, Return, Excess Air
Dimensions
Analyser: H 183 x W 85 x D 50 mm
Suitable applications
Fuel options: natural gas, LPG, heavy oil, light oil, coal, wood, wood pellet dry, coke, Biomass and Bagasse.
Warranty
2 Years
Features
Anton Sprint Pro 1 Multifunction Flue Gas Analyser Kit Features
Key Features and Benefits
Comprehensive Measurements
Measures carbon monoxide (CO), oxygen (O2), and temperature.
Calculates combustion efficiency, CO/CO2 ratio, and carbon dioxide (CO2) levels.
Ideal for Professionals
Perfect for oil-burning combustion systems.
Essential for commissioning new boilers.
User-Friendly Interface:
Intuitive, easily navigated menus.
Clear digital display with high contrast.
Large push buttons for easy operation.
On-screen prompts and warnings assist during inspections.
Robust Design:
Built for challenging conditions with ergonomic construction.
Features a new, easy-to-empty condensate trap with a washable particulate filter.
Double condensate protection to prevent moisture ingress.
Convenient Charging and Connectivity:
Charges via a USB charging point.
USB connection allows for printer compatibility.
Complete Package:
Includes a carry case, flue gas probe, USB charger with lead, spare dust filter, Pro Infrared Magnetic Printer (USB Charging), AS/10 Clamp Pipe Temperature Probe x 1 and calibration certificate.
Advanced Condensate Trap:
Double condensate trap prevents moisture from reaching the analyser pump.
Robust and quick to empty design.
Switch from paper to foam particle filter allows for quick drying on the spot.
Compliance and Standards:
Compliant with EN 50379-1:2012 and EN 50379-3:2012 standards.
Suitable for plumbers, oil and commissioning engineers working with BS7967:2015.
