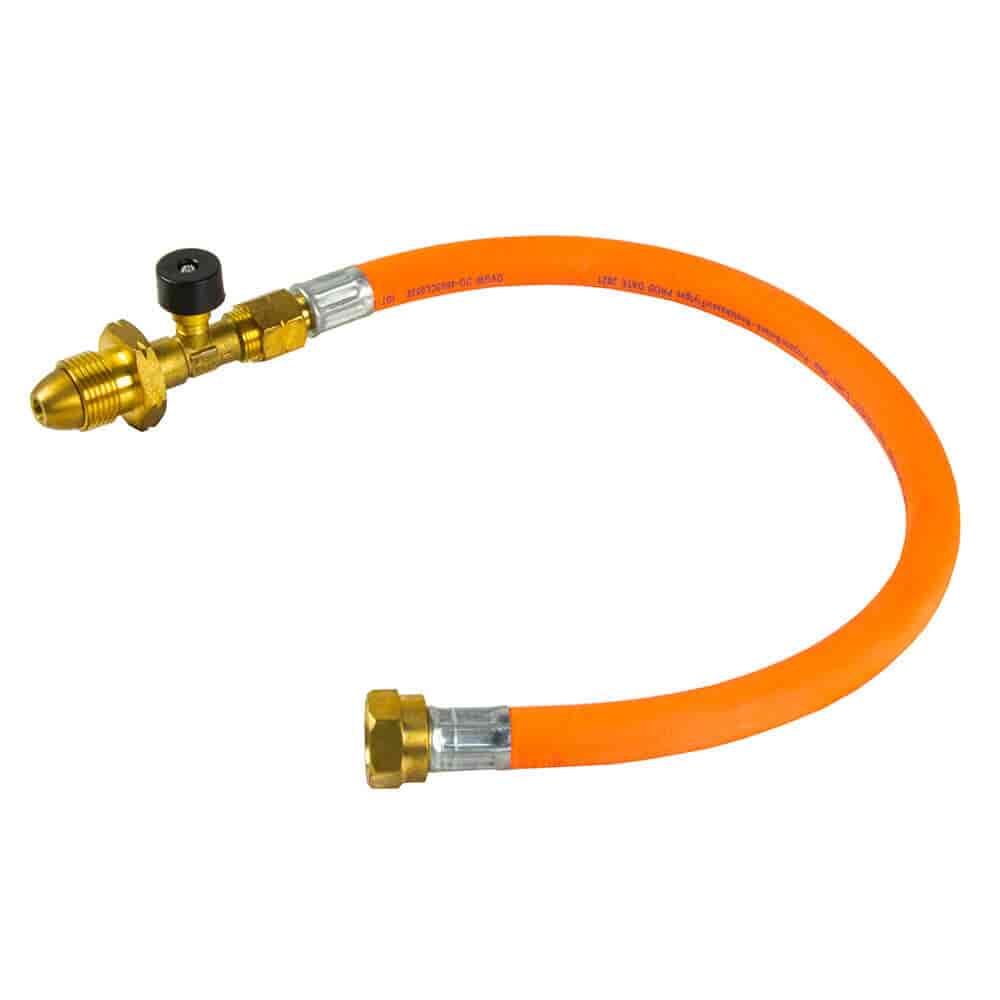

This LPG pigtail hose is 450mm in length and is fitted with Hose Rupture Protection (HRP) to provide maximum safety whilst in transit. If the hose is damaged, the hose rupture protection trips and stops the flow of gas.
Specification
450mm Propane Pigtail with Rupture Protection - POL x W20 Specification
Braiding
Unbraided
Standard (Tested to)
EN 16436-1 Class 3
Burst Pressure
90 bar
Colour
Orange
Connection
POL x W20 Nut & Tail with Rupture Protection
Gas Type
Propane
Inside Diameter
6.3mm
Length
20"
N/R or ST
Straight Through
Operating Pressure
Working Pressure: 30 bar
Outside Diameter
16.3mm
Features
450mm Propane Pigtail with Rupture Protection - POL x W20 Features
Fits most common gas cylinder connections.
450mm in length.
Fitted with Hose Rupture Protection (HRP) for maximum safety.
