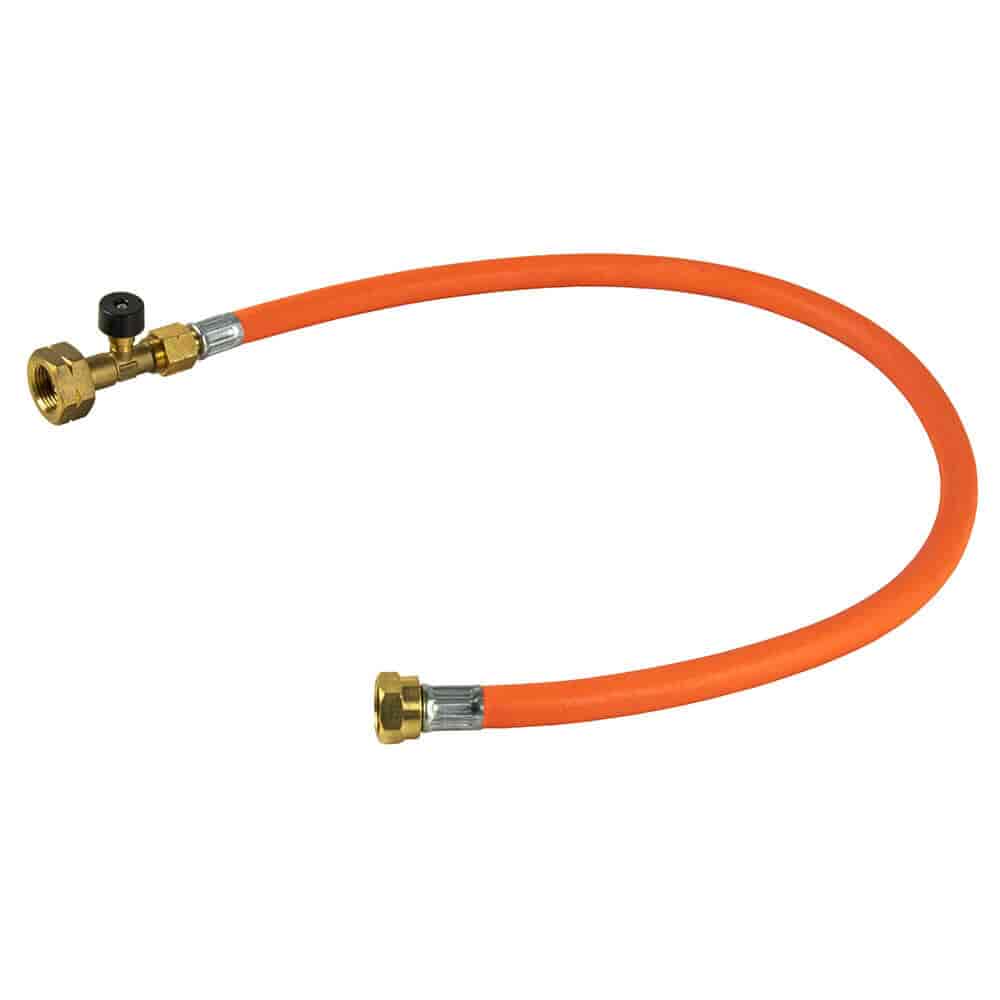

750mm Propane and Butane LPG Pigtail with Hose Rupture Protection, Butane Nut x W20 fittings | EN 16436-1 Class 3 high-pressure hose.
The Gas Products 750mm LPG Pigtail with Rupture Protection provides a flexible high-pressure connection between compatible propane or butane cylinders and LPG regulators or changeover systems.
Its key feature is the integrated hose rupture protection device, designed to restrict uncontrolled gas flow in the event of significant hose damage. This provides additional protection for mobile, leisure and commercial LPG installations.
At 750mm long, this pigtail offers additional reach compared with shorter hose assemblies, making it a practical choice where the cylinder and regulator cannot be positioned close together or additional flexibility is required when routing the hose.
Manufactured using EN 16436-1 Class 3 high-pressure LPG hose, the assembly is rated to a 30 bar working pressure and 90 bar burst pressure. The Butane Nut cylinder connection and W20 Nut & Tail provide compatibility with suitable LPG cylinders, regulators and changeover systems.
Key Features and Benefits
- Integrated Hose Rupture Protection - Designed to restrict uncontrolled gas flow in the event of significant hose damage, providing additional protection for the LPG installation.
- 750mm Extended Hose Length - Provides additional reach and routing flexibility where the gas cylinder and regulator cannot be positioned close together.
- EN 16436-1 Class 3 Hose - Manufactured using high-pressure LPG hose rated to a 30 bar working pressure and 90 bar burst pressure.
- Butane Nut x W20 Connections - Designed to connect compatible propane or butane cylinders to W20 regulators and changeover systems.
- Propane & Butane Compatible - Suitable for LPG installations using compatible propane or butane gas cylinders.
- Straight-Through Configuration - Suitable for installations where a non-return valve is not required within the pigtail assembly.
- Flexible Unbraided Hose - The 750mm hose provides greater flexibility when routing the connection between the LPG cylinder and regulator.
Ideal For
- Caravan and motorhome LPG installations.
- Campervans and camping gas systems.
- Outdoor catering units and food trucks.
- Compatible marine LPG installations.
- Manual and automatic LPG changeover systems.
- Installations requiring additional hose length and rupture protection.
Why Buy This?
The Gas Products 750mm LPG pigtail is a practical choice when additional hose length and rupture protection are required. Its longer 750mm design provides greater installation flexibility than shorter pigtails, particularly where cylinder position or available space makes hose routing more difficult.
Combined with integrated hose rupture protection, EN 16436-1 Class 3 high-pressure hose and Butane Nut x W20 connections, it provides a dependable solution for compatible leisure, mobile and commercial LPG installations.
Order your Gas Products 750mm LPG Pigtail with Rupture Protection today for additional reach, integrated hose protection and a reliable high-pressure LPG connection.
