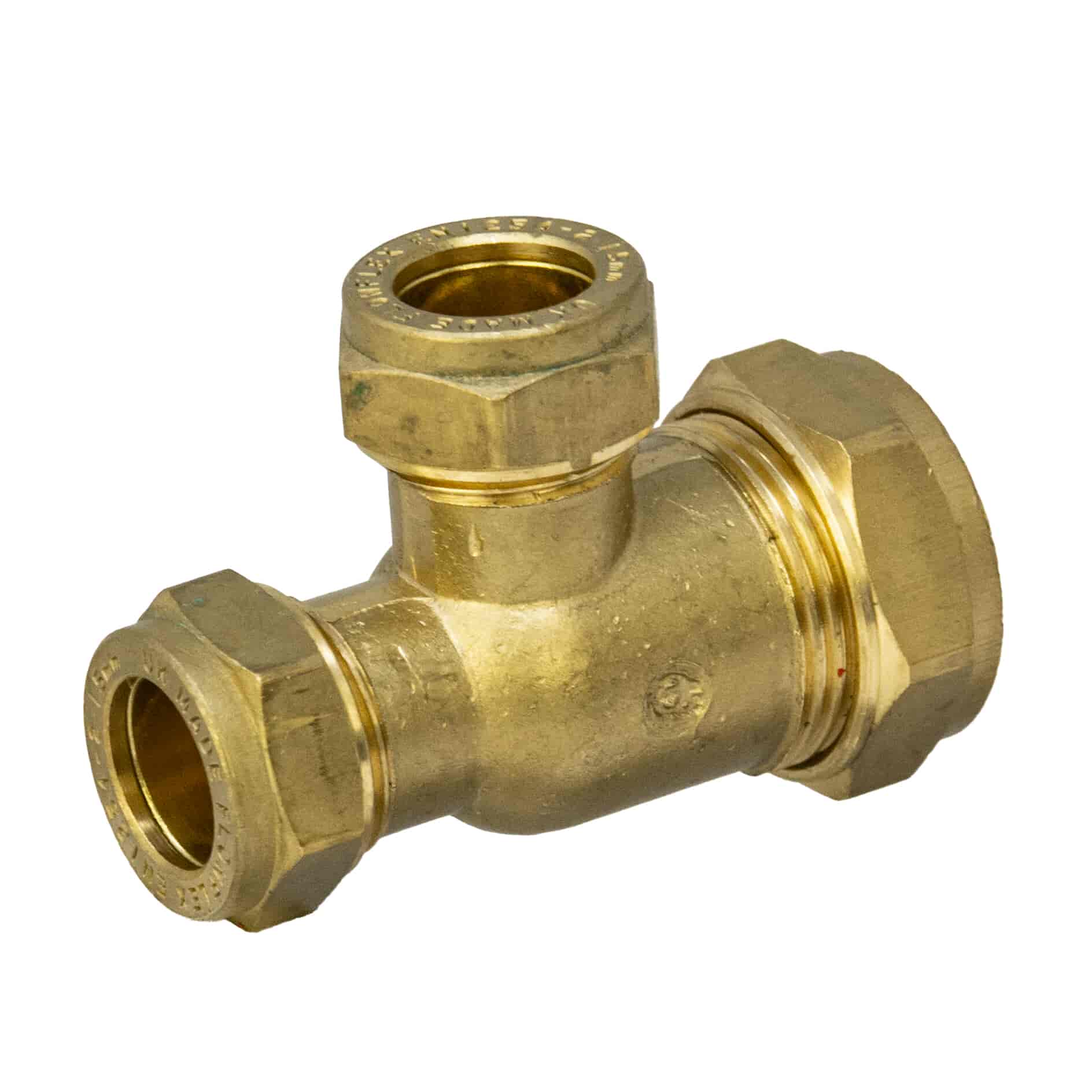

Stepping down from a larger pipe to a smaller run while also taking a branch is a common requirement in mixed-size pipework. The Reduced End & Branch Brass Compression Tee – 22mm x 15mm x 15mm does both in one fitting, connecting a 22mm pipe to two 15mm outlets at 90° using mechanical compression joints, so no soldering or heat is needed.
Made from brass and manufactured to BS EN 1254-2, it's WRAS approved and suitable for hot and cold water, heating circuits, compressed air, and low-pressure gas distribution. It's rated to 1 bar at 30°C for gas, 7 bar at 30°C for compressed air, and up to 25 bar (size dependent) for water between 0°C and 95°C, and works with copper, stainless steel, low carbon steel, and select plastic pipe (with inserts).
Combining a size reduction and a branch in a single fitting means one joint instead of a tee plus a separate reducer, which is one fewer connection point where a leak could develop. A flame-free joint also means no hot works permit and no fire risk, and WRAS approval and BS EN 1254-2 compliance make it a fitting you can specify with confidence across water, heating, and low-pressure gas work.
Order the Brass Reduced End & Branch Compression Tee – 22mm x 15mm x 15mm online today.
| Brand | Hamilton Gas Products Ltd |
|---|---|
| Product Type | Compression Tee, Reduced End and Branch |
| Connection | Compression x Compression x Compression |
| Size | 22mm x 15mm x 15mm |
| Material | Brass |
| Finish | Brass |
| Gas Pressure Rating | 1 Bar @ 30°C |
| Compressed Air Rating | 7 Bar @ 30°C |
| Water Pressure Rating | Up to 25 Bar (Size Dependent) @ 0–95°C |
| Pipe Compatibility | Copper, Stainless Steel, Low Carbon Steel, Select Plastics |
| Standard/Approval | BS EN 1254-2, WRAS Approved |
| Suitable Applications | Water, Heating, Compressed Air, and Low-Pressure Gas (Above Ground) |
