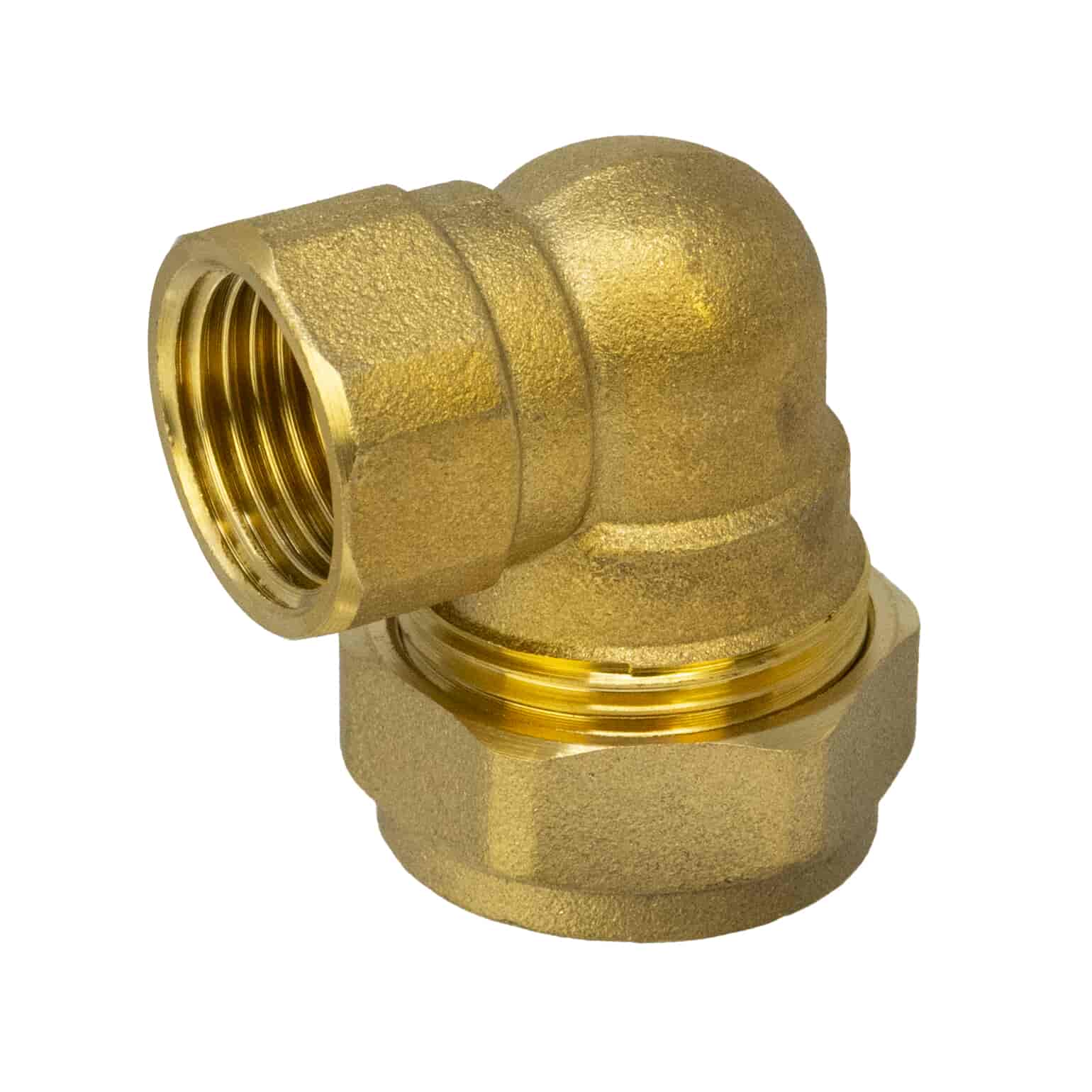

The Brass Compression Elbow – 22mm Compression x 1/2" BSP Female is a flame-free plumbing solution for creating 90° bends in pipework where space is tight or open flames are not allowed. For use with 22mm copper pipe and 1/2" BSP male fittings, this elbow gives a mechanical seal without the need for heat.
Made from brass and WRAS approved, this elbow is suitable for hot and cold water, heating systems, low-pressure gas and oil pipelines and BS EN 1057 copper tube and other pipe materials.
Size – 22mm compression x 1/2" BSP female
Material – Solid brass
Connection Type – Compression (pipe side) x BSP Parallel Female (threaded side)
Pressure Ratings – Gas: 1 bar @ 30°C; Compressed air: 7 bar @ 30°C
Water Pressure Ratings – 8–15mm: 25 bar @ 0–95°C
Mechanical, Heat-Free Joint – Compression fitting gives a strong, flame-free seal.
WRAS Approved – Suitable for use with drinking water systems.
90° Elbow – Ideal for installations where pipe rerouting is needed in tight spaces.
Brass – Durable and corrosion resistant.
EN1254-2 Compliant – Meets UK and EU standards for compression fittings.
Hot and cold water systems
Heating system pipe connections and reroutes
Low-pressure gas and oil distribution (above ground)
Compact installations and maintenance repairs
Create heat-free 90° pipe connections for water, gas or oil systems. Order now for WRAS approved.
| Brand | Hamilton Gas Products Ltd |
|---|---|
| Product Type | Compression Elbow |
| Connection | Compression x BSP Female |
| Size | 22mm Compression x 1/2" BSP Female |
| Material | Brass |
| Finish | Brass |
| Gas Pressure Rating | 1 bar @ 30°C |
| Compressed Air Rating | 7 bar @ 30°C |
| Water Pressure Rating | 25 bar (8–15mm) @ 0–95°C |
| Pipe Compatibility | Copper, stainless steel, low carbon steel, select plastics |
| Standard/Approval | BS EN 1254-2, WRAS Approved |
| Suitable Applications | Water, heating, oil, and low-pressure gas (above ground) |
Size – 22mm compression x 1/2" BSP female thread
Material – Solid brass for strength and corrosion resistance
Connection Type – Compression (pipe side) x BSP Parallel Female (threaded side)
Pressure Ratings – Gas: 1 bar @ 30°C; Compressed air: 7 bar @ 30°C
Water Pressure Ratings – 8–15mm: 25 bar @ 0–95°C
