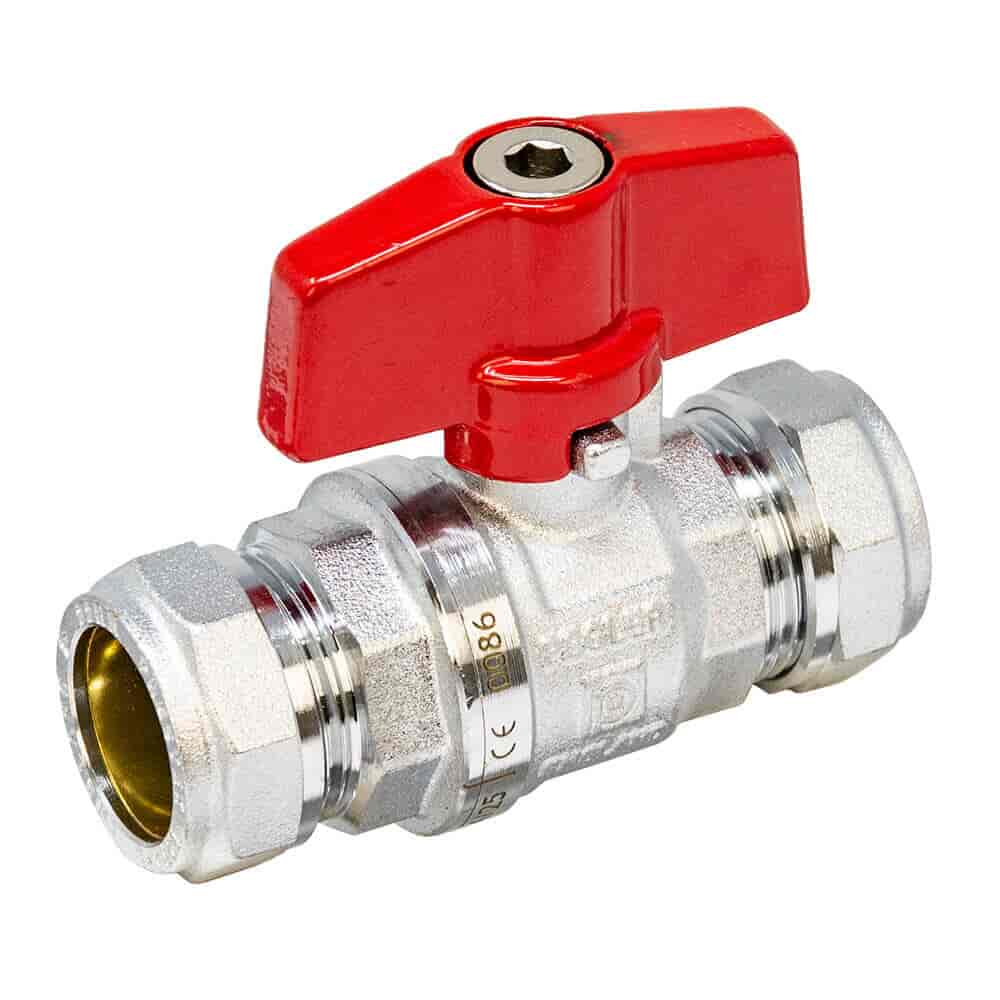

Pegler PB300T 22mm Full Bore Tee Ball Valve – Red Handle | High-Performance Isolation Valve for Water, Gas, and Fluid Systems
The Pegler PB300T 22mm Full Bore Tee Ball Valve is a compact, high spec isolation valve for use in domestic and commercial water, gas and fluid systems. With quarter turn operation, full bore and compression fittings this valve gives low resistance flow, easy installation and long life.
Part of the Prestex Ball Valve range the PB300T has a vandal resistant, blow out proof assembly, PTFE seals and a red T-handle for simple, precise control. Suitable for systems up to 16 bar and 110°C this valve is ideal for hot/cold water, HVAC and general fluid isolation applications.
Key Features & Benefits
Full Bore – Unrestricted flow, for isolating water, gas and other media.
Quarter Turn Tee Handle – Easy on/off control with a compact, red handle.
Compression Ends (22mm) – Fast, tool friendly installation into copper or compatible pipework.
Chrome Plated Brass Body – Corrosion resistant and suitable for exposed or concealed installations.
Blow Out and Vandal Proof Assembly – Safe and secure even under pressure.
PTFE and FPM Seals – Reliable, leak free operation across a wide temperature range.
Applications
Hot and Cold Water Systems
Gas Isolation (LPG/Natural Gas)
Heating and HVAC Circuits
General Purpose Plumbing Isolation
Order Now for Long Lasting Valve Performance
Choose the Pegler PB300T Full Bore Tee Ball Valve for maintenance free isolation in residential, commercial and light industrial applications.
Specification
Pegler PB300T 22mm Full Bore Tee Ball Valve with Red Handle Specification
Brand
Pegler PB300
Approvals
WRAS, BSI
Connection
Compression
Finish
Nickel Plated
Full Bore
Yes
Handle
Tee
Handle Colour
Red
Material
Brass
Max Operating Pressure
PN16
Operating Range
-20° C to 60° C
Applications
Water/Air
Size
22mm
Lockable
Yes
Features
Pegler PB300T 22mm Full Bore Tee Ball Valve with Red Handle Features
Full Bore – Unrestricted flow, for isolating water, gas and other media.
Quarter Turn Tee Handle – Easy on/off control with a compact, red handle.
Compression Ends (22mm) – Fast, tool friendly installation into copper or compatible pipework.
Chrome Plated Brass Body – Corrosion resistant and suitable for exposed or concealed installations.
Blow Out and Vandal Proof Assembly – Safe and secure even under pressure.
PTFE and FPM Seals – Reliable, leak free operation across a wide temperature range.
