Universal 32mm Black MDPE Electrofusion Coupler

In stock
SKU
HA2502
£3.20 £2.67
Or 3 Interest-Free Payments of £1.07
apple pay
klarna
google pay
paypal
  • 10 +
    £2.89 £2.41 each
    save 10%
chevron-up
Description

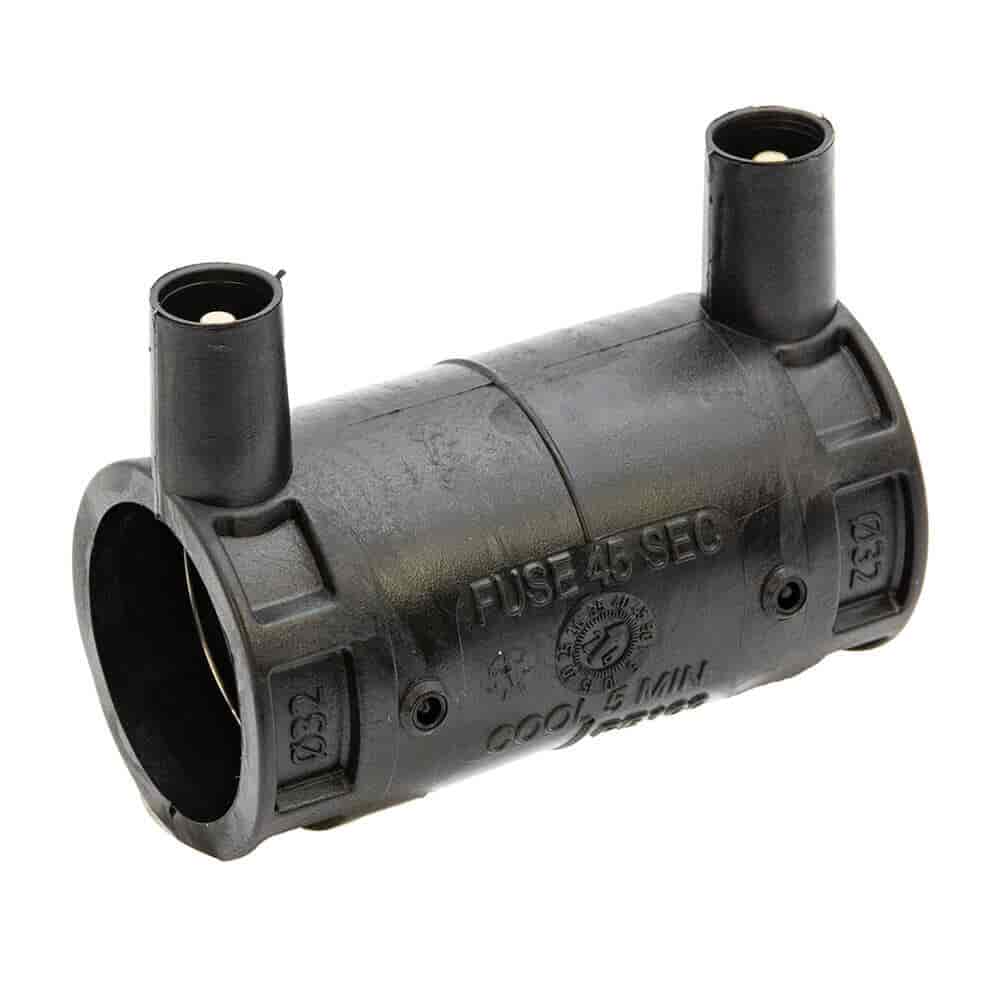

Universal 32mm Black Electrofusion Coupler – for MDPE Gas, LPG & Water Pipe

A joint in buried gas or water pipework has to be as strong as the pipe itself. Electrofusion fuses the coupler to the pipe, using heat from wires built into the coupler, so the joint becomes part of the pipe, not a mechanical seal that can work loose.

This 32mm universal electrofusion coupler is made from PE100 polyethylene in black, for joining 32mm MDPE pipe. It has exposed-wire technology to maximise heat transfer, simultaneous socket fusion, and 4.0mm terminal pins. The fitting carries a barcode that gives automatic temperature-compensated fusion times and fitting traceability. Radius states a service life of over 100 years when installed correctly.

Radius’s electrofusion couplers are Kitemarked to BS EN 1555-3 and GIS/PL2:4 for gas, and to BS EN 12201-3 for water, and use WRAS-approved material. They are tested for use with PE80 and PE100 pipes in a wide range of SDRs, and the maximum operating pressure depends on the pipe and the fitting, so always check the fitting’s packaging label.

Electrofusion needs a compatible electrofusion control unit, correct pipe preparation and a trained installer. Gas work must be carried out by a suitably qualified, registered gas installer in accordance with the relevant standards.

Key Features & Benefits
  • PE100 Construction: High-strength polyethylene fitting that doesn't corrode.
  • Electrofusion Joint: Exposed-wire technology fuses the coupler to the pipe for maximum heat transfer.
  • Universal Fitting: For natural gas, LPG and water pipe systems.
  • 4.0mm Terminal Pins: To suit electrofusion control units with 4.0mm connections.
  • Barcode Fusion Data: Automatic temperature-compensated fusion times and traceability.
  • Kitemarked Range: Radius electrofusion couplers are Kitemarked to BS EN 1555-3, GIS/PL2:4 and BS EN 12201-3.
Suitable Applications
  • MDPE (PE80) pipe systems for natural gas, installed by a registered gas installer.
  • LPG installations where the system is confirmed suitable for the application.
  • Potable and non-potable water systems.
  • Buried or damp locations where a corrosion-free joint is needed.
Why Buy This Product?

For buried pipework, a fused joint is as strong as the pipe around it, and the PE100 fitting doesn’t corrode. This coupler works for gas and water pipe, and the barcode sets the right fusion time for you, with full traceability.

Order the Universal 32mm Electrofusion Coupler online today.

Specification

Universal 32mm Black MDPE Electrofusion Coupler Specification

Brand Radius
Product Type Electrofusion Coupler
Pipe Size 32mm
Material Polyethylene (PE100)
Colour Black
Terminal Pin Diameter 4.0mm
Connection Type Electrofusion Socket
Fusion Technology Exposed Wire, Barcode Fusion Data
Standards (Gas) BS EN 1555-3, GIS/PL2:4
Standards (Water) BS EN 12201-3, WRAS-Approved Material
Operating Pressure Gas: up to 5.5 bar; Water: up to 16 bar
Suitable Applications Natural Gas, LPG and Water
Features

Universal 32mm Black MDPE Electrofusion Coupler Features

  • PE100 Construction: High-strength polyethylene fitting that doesn't corrode.
  • Electrofusion Joint: Exposed-wire technology fuses the coupler to the pipe for maximum heat transfer.
  • Universal Fitting: For natural gas, LPG and water pipe systems.
  • 4.0mm Terminal Pins: To suit electrofusion control units with 4.0mm connections.
  • Barcode Fusion Data: Automatic temperature-compensated fusion times and traceability.
  • Kitemarked Range: Radius electrofusion couplers are Kitemarked to BS EN 1555-3, GIS/PL2:4 and BS EN 12201-3.
