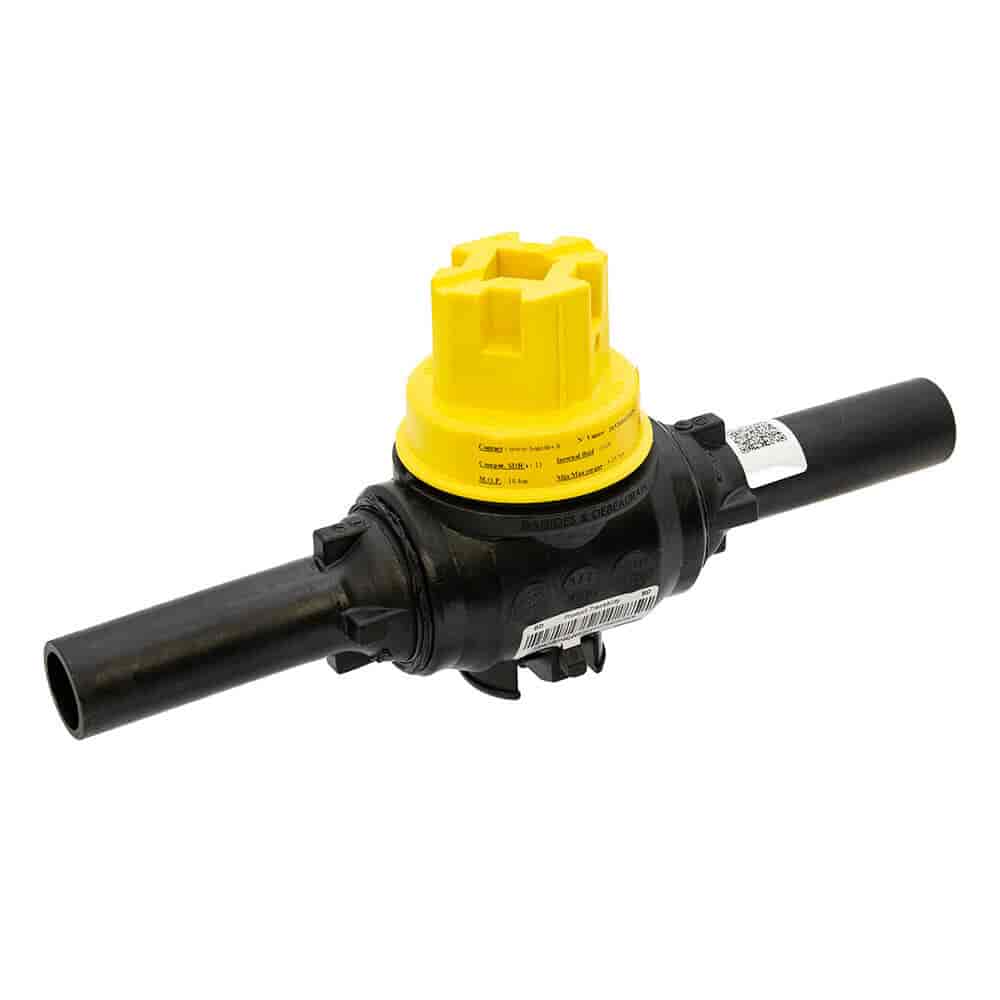

The 32mm Electrofusion Gas Distribution Valve is a top quality component for safe and efficient gas pipeline control in domestic and industrial applications. Made from tough MDPE (PE80) and meets BS EN 1555-4 and GIS/PL2-4:2008 this valve has high mechanical strength, reliable sealing and low torque operation even in harsh conditions.
This 1/4 turn valve has bi-directional flow, external sealing and zero maintenance performance making it ideal for Natural Gas and LPG distribution. Its electrofusion ready design allows for easy integration into gas pipe systems using standard 32mm PE80 MDPE pipe.
1/4 Turn Shut-Off – Quick close valve with clockwise rotation in line with EN 1555-4
Bi-Directional Flow – Gas flow in either direction
Low Operating Torque – Easy to operate under pressure even at low temperatures
Electrofusion Compatible – 4.7 mm terminal pins for weldable joints
Zero Maintenance – Long term reliability with no servicing required
High Pressure Rated – Up to 10 bar (MOP10)
UV & Corrosion Resistant – Made from 100% virgin high density PE-HD 100 resin
Underground and above ground Natural Gas and LPG distribution networks
Gas service control for domestic, commercial or municipal installations
Integration into existing MDPE gas systems with electrofusion fittings
Use in areas requiring low maintenance, high integrity shut off valves
The 32mm Electrofusion Distribution Valve is built for long term performance and ease of installation. High reliability, zero maintenance and robust safety features make it the go to valve for professional gas installers.
| Brand | Radius |
|---|---|
| Product Type | Electrofusion Gas Distribution Valve |
| Pipe Size | 32mm MDPE (PE80) Yellow Gas Pipe |
| Material | MDPE (PE80) |
| Valve Operation | 1/4 Turn Clockwise Close |
| Flow Direction | Bi-directional |
| Max Operating Pressure | 10 bar (MOP10) |
| Material | PE-HD 100 Black High-Density Polyethylene |
| Colour | Black & Yellow |
| Temperature Range | -20°C to +40°C |
| Terminal Pin Size | 4.7 mm |
| Compliance | BSI Approved, Kitemarked, BS EN 1555-4, GIS/PL2-4:2008 |
| Maintenance | None required |
1/4 Turn Shut-Off – Quick-close valve with clockwise rotation in line with EN 1555-4
Bi-Directional Flow – Designed for gas flow in either direction
Low Operating Torque – Easy to operate under pressure, even at low temperatures
Electrofusion-Compatible – 4.7 mm terminal pins for secure weldable joints
Zero Maintenance – Long-term reliability with no servicing required
High Pressure Rated – Handles pressures up to 10 bar (MOP10)
UV & Corrosion Resistant – Manufactured from 100% virgin high-density PE-HD 100 resin
