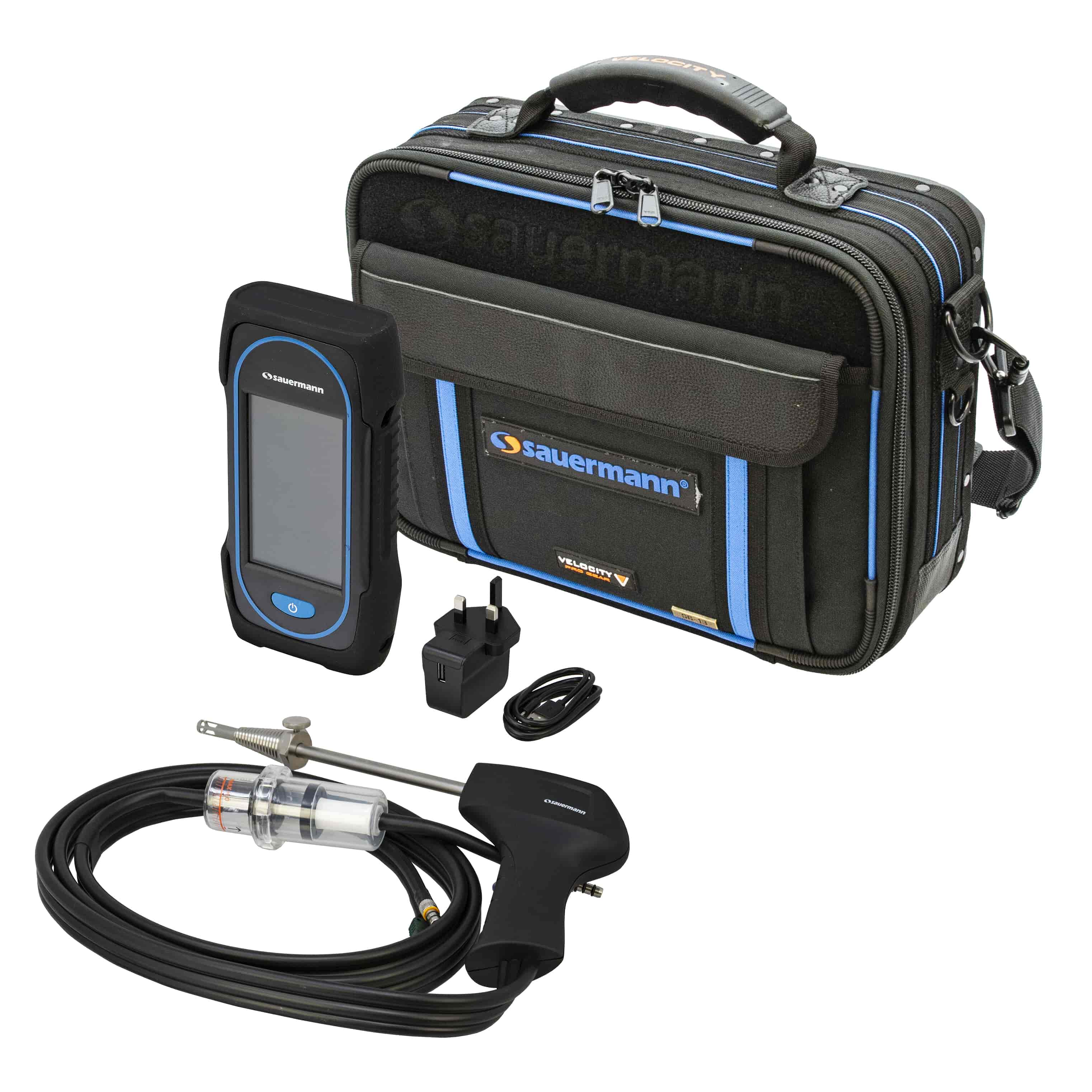

The Sauermann Si-CA 130 Elite is an advanced combustion flue gas analyser in a compact, ergonomic package, built for residential and commercial gas system monitoring. The base unit ships with two field-replaceable sensors — O₂ and CO (up to 8,000 ppm) — with NO or low-range NO available to add a third sensor for accurate NOx measurement, including in low NOx or high moisture environments.
Built-in diagnostics such as sensor life indicators and calibration reminders help minimise downtime. The analyser calculates CO₂ percentage, combustion efficiency and excess air, and measures draft and differential pressure. It also monitors CO and CO₂ in ambient air, giving a combined safety and performance tool for combustion engineers.
The large colour touchscreen has a customisable interface for real-time graphical data display. Data is logged automatically and can be transferred via Wi-Fi or USB to Sauermann's free Combustion app or PC software for reporting, analysis and record-keeping. An optional wireless printer allows reports to be printed on site for compliance and client documentation.
Field-replaceable sensors mean the Si-CA 130 can be expanded from a two-gas O₂/CO configuration to include NO or low-range NO as requirements change, without buying a new analyser. The touchscreen interface and automatic data logging remove much of the manual work from reporting, with results exportable to PC software or the Sauermann Combustion app, and an optional wireless printer available for on-site documentation. Ambient CO and CO₂ monitoring alongside standard combustion analysis gives engineers a genuinely combined safety and performance tool rather than two separate instruments.
Order the Sauermann Si-CA 130 Elite Combustion Flue Gas Analyser online today.
| Brand | Sauermann |
|---|---|
| Product Type | Si-CA 130 Elite Flue Gas Analyser |
| Measurement Units | °C, %, ppm, mbar |
| O₂ Measuring Range | 0.00% to 25.00% |
| CO Measuring Range | 0.00 ppm to 8000.00 ppm |
| CO₂ Calculated Range | 0.00% to 99.90% |
| Nitric Oxide (NO – Optional) | 0.00 ppm to 5000.00 ppm |
| Low Range NO | 0.00 ppm to 300.00 ppm |
| NOx (Calculated – Optional) | 0.00 ppm to 7500.00 ppm |
| Low NOx | 0.00 ppm to 450.00 ppm |
| Flue Temperature Range | -20.00°C to 1250.00°C |
| Air Temperature Range | -20.00°C to 120.00°C |
| Differential Temperature | 0.00°C to 1250.00°C |
| Pressure / Draft Range | -200.00 mbar to 200.00 mbar |
| Excess Air Range | 0.00% to 999.00% |
| Combustion Efficiency | 0.00% to 100.00% |
| Measured Parameters | O₂, CO, CO₂ (Calculated), NO, NO₂, NOx (Calculated) |
| Display | Large Colour Touchscreen Graphical Display |
| IP Protection Rating | IP42 |
| Battery Life | Up to 8 Hours |
| Power Supply | Rechargeable Li-Ion 5100 mAh, 3.6V Battery |
| Charging Method | USB |
| Wireless Connectivity | Yes – with Sauermann Mobile App |
| Mobile App Support | Yes – Sauermann Combustion App for Live Data, Reporting, Logging |
| Auto Zero | Yes |
| Sensor Protection | CO Sensor Protected by Automatic Pump Stop |
| Remote Printer Support | Yes – Compatible with Sauermann Wireless Printer |
| Certifications & Standards | 2015/863 EU (RoHS 3), NF EN 50379-1, NF EN 50379-3, 2014/53/UE RED, TÜV SÜD, UKCA |
| Dimensions | 19.4 x 9.9 x 4.9 cm |
| Weight | 350g |
| Keypad | 5 Keys |
| Environmental Conditions of Use | Temperature: -5 to 45°C (23 to 113°F), Hygrometry: Non-Condensing (<85% RH), Max Altitude: 2000m (6561') |
| Storage Temperature | -20 to 50°C (-4 to 122°F) |
| Languages | English, French, German, Spanish, Italian, Portuguese |
| Suitable Applications | Combustion Analysis, Boiler Servicing and Emissions Monitoring in Residential and Commercial Systems |
| Warranty | 2 Years |
