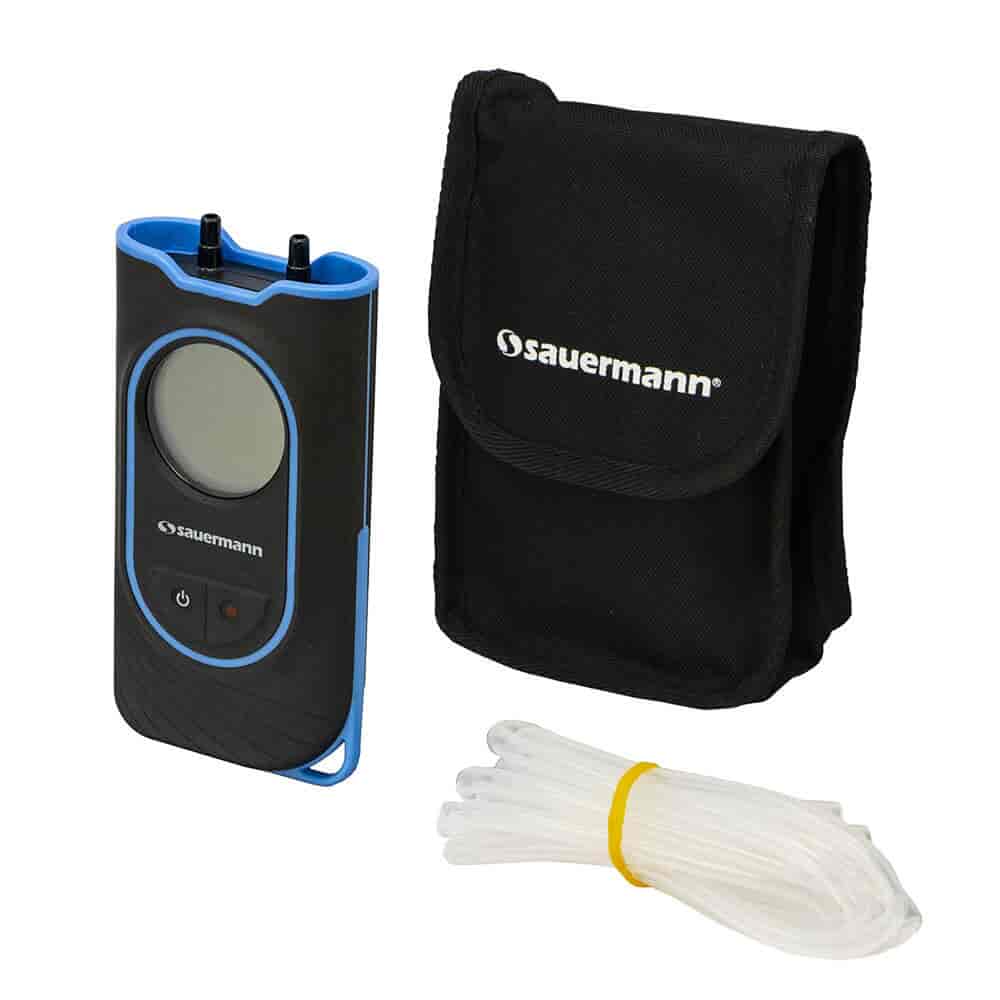

The Sauermann Kimo Si-PM3 Manometer is a compact, handheld instrument for precise differential pressure and pressure measurement in HVACR systems. With a measuring range of -150 to 150 hPa (-60 to 60 inH₂O), it suits commissioning, troubleshooting and maintenance of heating, ventilation and air conditioning systems.
A backlit LCD screen, Min/Max/Hold/Live functions and auto-zeroing make it straightforward to use on site. Battery life is rated at up to 170 hours, with an auto-off function after 10 minutes of inactivity to preserve battery life, and a magnetic back allows hands-free use on metal surfaces. A carrying bag is included to protect the unit during transport.
The Si-PM3 measures differential and static pressure directly as standard. Air velocity and airflow can also be calculated, but this requires a Pitot tube accessory, which is sold separately and not included with the unit.
It's fully compatible with the free Sauermann Si-HVACR Measurement Mobile App (iOS/Android), allowing live readings, data logging, and report generation (PDF, CSV, XML) with up to 4 images added for professional reporting and diagnostics.
Auto-zeroing, Min/Max/Hold functions and a 170-hour battery life make this a practical, low-maintenance tool for regular HVACR diagnostics, and the magnetic back is a genuinely useful detail for hands-free readings while working on a system. App connectivity removes the need to manually transcribe readings, with live data logging and export straight to PDF, CSV or XML for professional reporting.
Order the Sauermann Kimo Si-PM3 Manometer online today.
| Manufacturer | Sauermann |
|---|---|
| Product Type | Digital Differential Pressure Manometer |
| Measurement Units | inH₂O, Pa, mbar, hPa, mmH₂O, psi |
| Pressure Range | -150.00 hPa to +150.00 hPa |
| Air Velocity & Airflow | Calculated via Optional Pitot Tube (Sold Separately, Not Included) |
| Measured Parameter (Standard) | Differential Pressure |
| Display | 2-Line Backlit LCD Display |
| IP Protection Rating | IP40 |
| Wireless Connectivity | Yes – Compatible with Si-HVACR Measurement Mobile App |
| Battery Life | Up to 170 Hours (3 x AAA LR03 Batteries) |
| Auto Power-Off | Yes, After 10 Minutes of Inactivity |
| Power Supply | 3 x AAA LR03 1.5V Batteries |
| Dimensions | 70mm (L) x 33mm (W) x 141mm (H) |
| Weight | 200g (7 oz) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Standards Compliance | RoHS II 2011/65/EU, (EU)2015/863, UKCA, 2012/19/UE DEEE, 2014/53/EU RED |
| Warranty | 2 Years |
