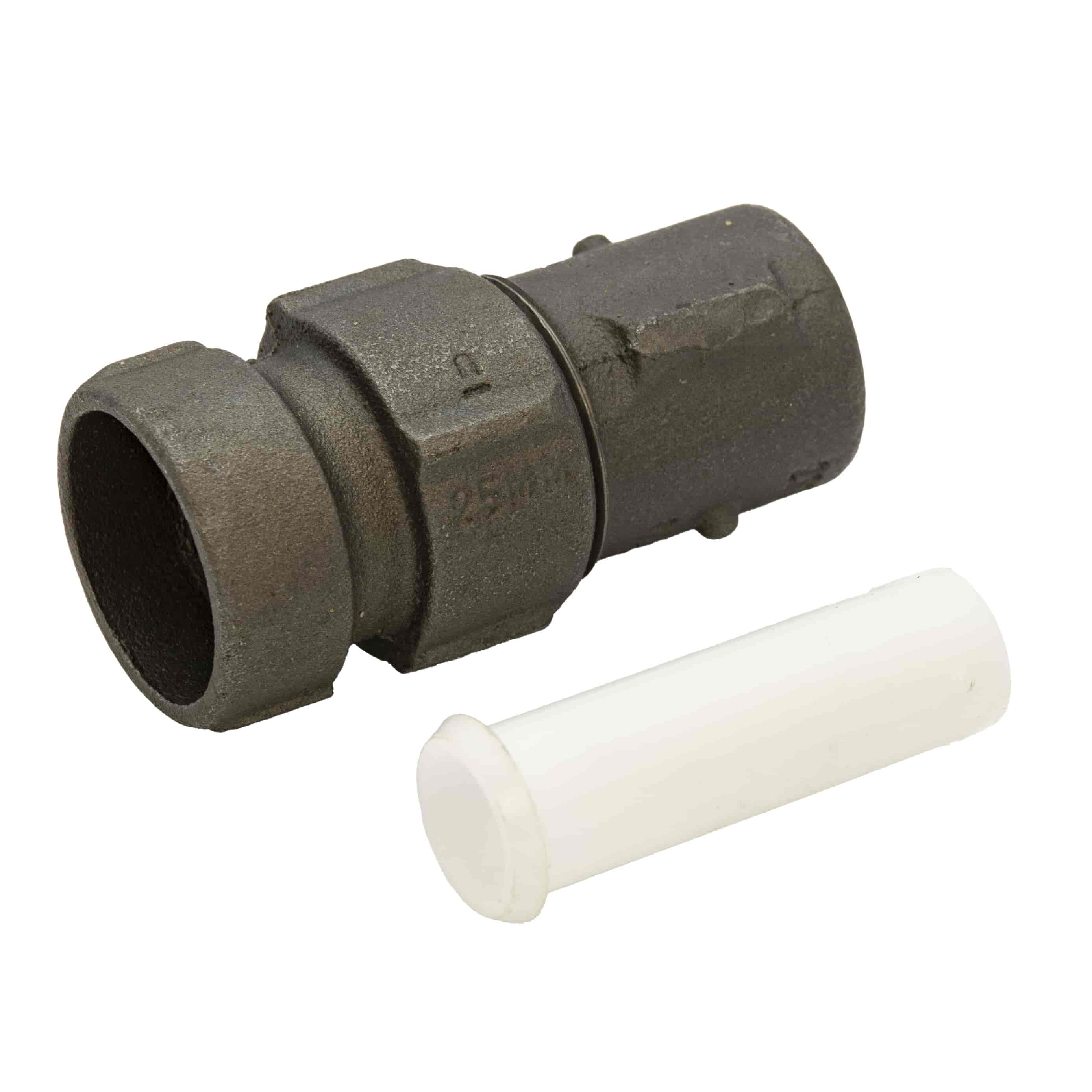

The Georg Fischer PRIMOFIT® Female Adaptor is a 25mm x 3/4" BSP black malleable iron compression fitting featuring an anti-shear nut. It provides a secure, end-load resistant transition between metric PE (polyethylene) or steel pipe and parallel threaded female BSP connections.
These PRIMOFIT compression female adaptors have anti-shear nuts and NBR gaskets, and are for connection to PE SDR 11/S 5 pipe and Rp/EN 10226-1 threaded pipe. The fitting is pre-assembled and ready to install straight out of the box, with no dismantling or special tools required — it tightens securely via standard manual rotation without the need for pressing or welding equipment.
An anti-shear nut gives genuine end-load resistance at the joint, protecting against pipe pull-out under strain in a way a standard compression nut wouldn't. Being pre-assembled and installable with just manual rotation means no welding or specialist pressing equipment is needed, making it a practical choice for retrofit work or confined spaces.
Order the Primofit® 25mm x 3/4" BSP FM Adaptor with Anti-Shear-Nut online today.
| Brand | Georg Fischer PRIMOFIT |
|---|---|
| Part Number | 775 211 102 |
| Material | Malleable Iron (Whiteheart) |
| Colour | Black |
| Connection Size | 25mm Compression x 3/4" BSP Female Thread |
| Gasket Material | NBR |
| Pipe Compatibility | PE SDR 11/S 5, Rp/EN 10226-1 Threaded Pipe |
| Pressure Rating | Up to 8 bar (Gas), Up to 16 bar (Water) |
| Operating Temperature | -20°C to +80°C |
| Angular Deflection | Up to 3° per Joint |
