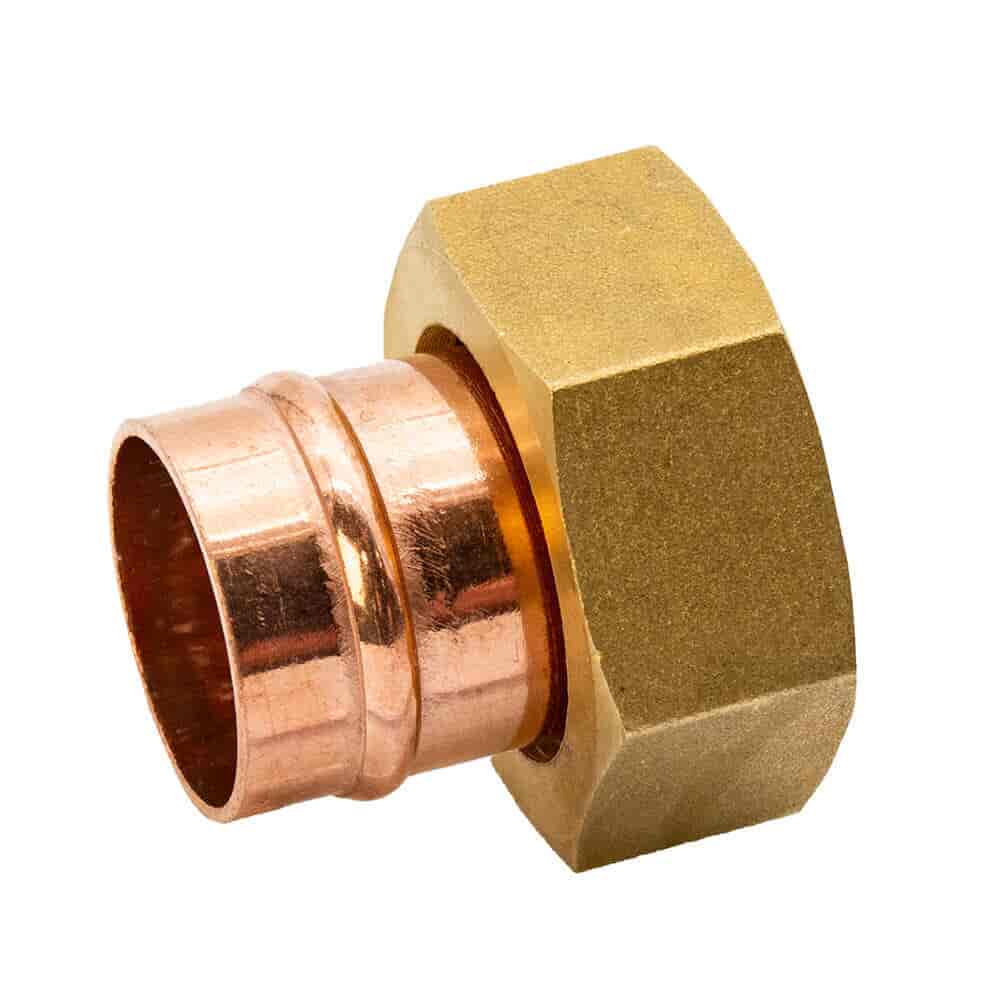

Copper Solder Ring Straight Cylinder Union – 22mm x 1" BSP FM
The Copper Solder Ring Straight Cylinder Union – 22mm x 1" BSP FM is a top quality plumbing fitting for secure connections in hot and cold water systems. Made from copper and yellow brass, this fitting has an integrated solder ring for a fast, clean and watertight joint without the guesswork.
For use in drinking water, sanitary, heating and chilled water systems, this WRAS approved fitting meets UK water regulations and British standards.
Key Features & Benefits
Quick & Easy Joints – Built in solder ring for perfect joints every time with no excess solder or waste.
WRAS Approved – Safe for drinking water systems.
High Quality – Made from copper and yellow brass for long life.
Lead Free Solder – EN 29453 and ISO 9453 compliant for safe and environmentally friendly use.
Versatile – Hot & cold drinking water, heating, chilled water, gas and compressed air systems.
Precision Engineering – Marked for full traceability and EN 1254 / BS 864 compliant.
Easy to Install – Connects 22mm copper tube to 1” BSP female threaded.
Ideal For
Domestic and commercial hot & cold water systems
Central heating and chilled water applications
Drinking and sanitary installations
Gas and compressed air systems
Why Buy
The Copper Solder Ring Bent Cylinder Union – 22mm x 1" BSP FM is a professional grade connection that’s easy to fit and built to last. WRAS approved and made to British standards it’s perfect for domestic and commercial plumbing systems.
Get leak free, long lasting joints — add the Copper Solder Ring Bent Cylinder Union – 22mm x 1" BSP FM to your basket today for fast UK & Ireland delivery.
Specification
Copper Solder Ring Straight Cylinder Union - 22mm x 1" BSP FM Specification
Brand
Masterflow
Product Type
Copper Solder Ring Straight Cylinder Union
Size
22mm x 1" BSP Female
Material
Copper & Yellow Brass
Solder Type
Lead-Free (EN 29453 / ISO 9453)
Certification
WRAS Approved, EN 1254-1, BS 864
Pipe Compatibility
Copper tube to EN 1057
Operating Pressure
16 bar @ 0–30°C, 10 bar @ 65°C, 7 bar @ 95°C, 6 bar @ 110°C
Applications
Drinking Water, Sanitary, Heating, Chilled Water, Gas, Compressed Air
Features
Copper Solder Ring Straight Cylinder Union - 22mm x 1" BSP FM Features
Quick & Secure Joints – Built-in solder ring ensures perfect joints every time without excess solder or waste.
WRAS Approved – Certified safe for use in drinking water systems.
High-Quality Construction – Manufactured from durable copper and yellow brass for long-lasting performance.
Lead-Free Solder – Complies with EN 29453 and ISO 9453 for safe, environmentally responsible use.
Versatile Applications – Suitable for hot & cold drinking water, heating, chilled water, gas, and compressed air systems.
Precision Engineering – Marked for full traceability and compliant with EN 1254 / BS 864.
Easy to Install – Designed to connect 22mm copper tubing to a 1” BSP female threaded connection.
