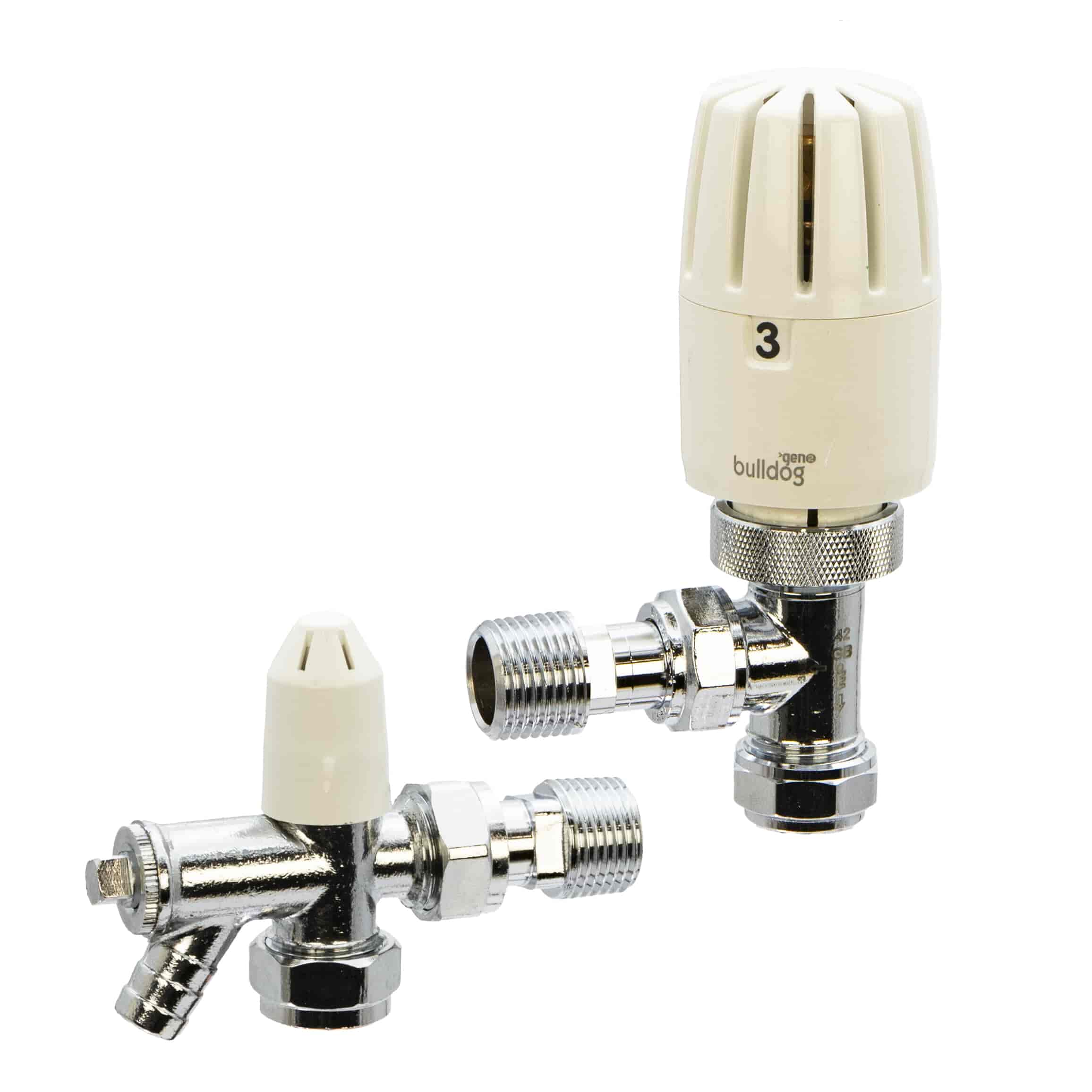

Pegler Bulldog GEN2 TRV & Lockshield Drain Off Set – 15mm
A really versatile, EN 215-compliant radiator valve set for 15mm x ½" BSP installs. This Pegler Bulldog GEN2 angled TRV and lockshield drain off set can be stuck on vertically or horizontally, either on the flow or return, and even has a frost setting that kicks in at 7°C. The adjustable temp range goes from 11 to 29°C and will handle a maximum static pressure of 10 bar.
The Pegler Bulldog range has been a go-to for heating installers for years, and the GEN2 TRV and Lockshield Drain Off builds on that by offering a well-specified, pretty flexible valve pack suitable for a wide range of domestic and light commercial radiator installs. The angled shape of the valve makes installing it in tight spots - alcoves, low level radiators and restricted pipework runs - way less fiddly. And since you can install on either flow or return & in vertical or horizontal positions, you've got loads more flexibility to get the valves in the right place.
The TRV includes both shut-off & frost protection settings. Frost setting kicks in at 7°C, which is high enough to prevent your system freezing when you're not using the heating, and the adjustable temp range lets you control the room temperature to perfection (11-29 degrees, to be exact). The lockshield valve keeps the water flowing smoothly and balances the system, and the drain off function lets you isolate & drain an individual radiator without having to drain the whole system. Standard domestic pipework is catered for by the 15mm x ½" BSP connections, and the 10 bar max static pressure rating covers all typical heating system operating requirements.
Key Features & Benefits
EN 215 Compliant - just what you want from a thermostatic radiator valve : a guaranteed top-quality and performing product for pro installs.
Frost Protection at 7°C - gets triggered when the heating is off on a cold period to stop your system freezing up.
Adjustable Temp Range 11-29°C - get the room just right, whatever the season.
Angled Valve Design - helps you out when there's not a lot of room to play with & your valves are stuck in a tight spot.
Vertical or Horizontal Installation - flexibility is key here, and the ability to install in either orientation & on either the flow or return is just what you need when the install conditions get tricky.
Drain Off Function - just what you need to isolate & drain one radiator without having to drain the whole system.
10 Bar Max Pressure - gets the job done in even the most demanding heating system situations.
15mm x ½" BSP Connections - standard domestic sizing, so you should be able to fit this to just about any plumbing system.
Ideal For
Doing up domestic radiators
Heating system commissioning and balancing
Tight spots where installation is tricky
Properties that need frost protection
Plumbers, heating engineers
Light commercial heating installs
Why Buy the Pegler Bulldog GEN2 TRV & Lockshield Drain Off Set?
The drain off function saves you loads of time on maintenance - being able to isolate one radiator at a time means a lot less hassle when you're on a service or maintenance call. Specifying valves with this built-in, from the start, avoids the inconvenience of having to do it the hard way later on.
Angled design makes installation a breeze in tight spots - no more awkward pipe bends or forcing those pipes into tight spaces just to get the valve in - the angled Bulldog GEN2 just slips in and does its job.
EN 215 compliance matters, especially on pro installs - for any documentation on a heating install, you really want to use EN 215-compliant components - this product ticks that box, being a genuine Pegler Yorkshire product.
Reliable, flexible, EN 215 compliant - just what you need. The Pegler Bulldog GEN2 TRV & Lockshield Drain Off Set 15mm is in stock & ready to ship. Order today and get a valve pack built to handle the demands of a pro heating install.
Specification
Pegler Yorkshire Bulldog II TRV & Lockshield Drain Off Set - 15mm Specification
Brand
Pegler Yorkshire
Sub Brand
Bulldog
Model
Bulldog GEN2 TRV & Lockshield Drain Off Set
Type
Radiator Valve Pack
Valve Shape
Angled
Connection Size
15mm x ½" BSP
Temperature Range
11 to 29°C
Frost Setting
7°C
Maximum Static Pressure
10 bar
Installation Orientation
Vertical or horizontal
Flow / Return
Suitable for both flow and return
Standard
EN 215
Includes
Angled TRV, lockshield valve with drain off
Features
Pegler Yorkshire Bulldog II TRV & Lockshield Drain Off Set - 15mm Features
EN 215 Compliant — Meets the European standard for thermostatic radiator valves — assured quality and performance for professional installations.
Frost Protection Setting at 7°C — Activates automatically to protect the heating system against freezing during cold periods when the heating is not in use.
Adjustable Temperature Range 11–29°C — Precise, comfortable room temperature control across a wide operating range.
Angled Valve Design — Easier installation in confined and restricted spaces — fits where straight valves can't.
Vertical or Horizontal Installation — Installs in either orientation, on flow or return — full flexibility for varied installation conditions.
Drain Off Function — Allows individual radiator isolation and draining without draining the full system.
Maximum Static Pressure 10 Bar — Reliable and durable across all typical domestic heating system pressures.
15mm x ½" BSP Connections — Standard domestic pipe sizing — compatible with a wide range of plumbing systems.
