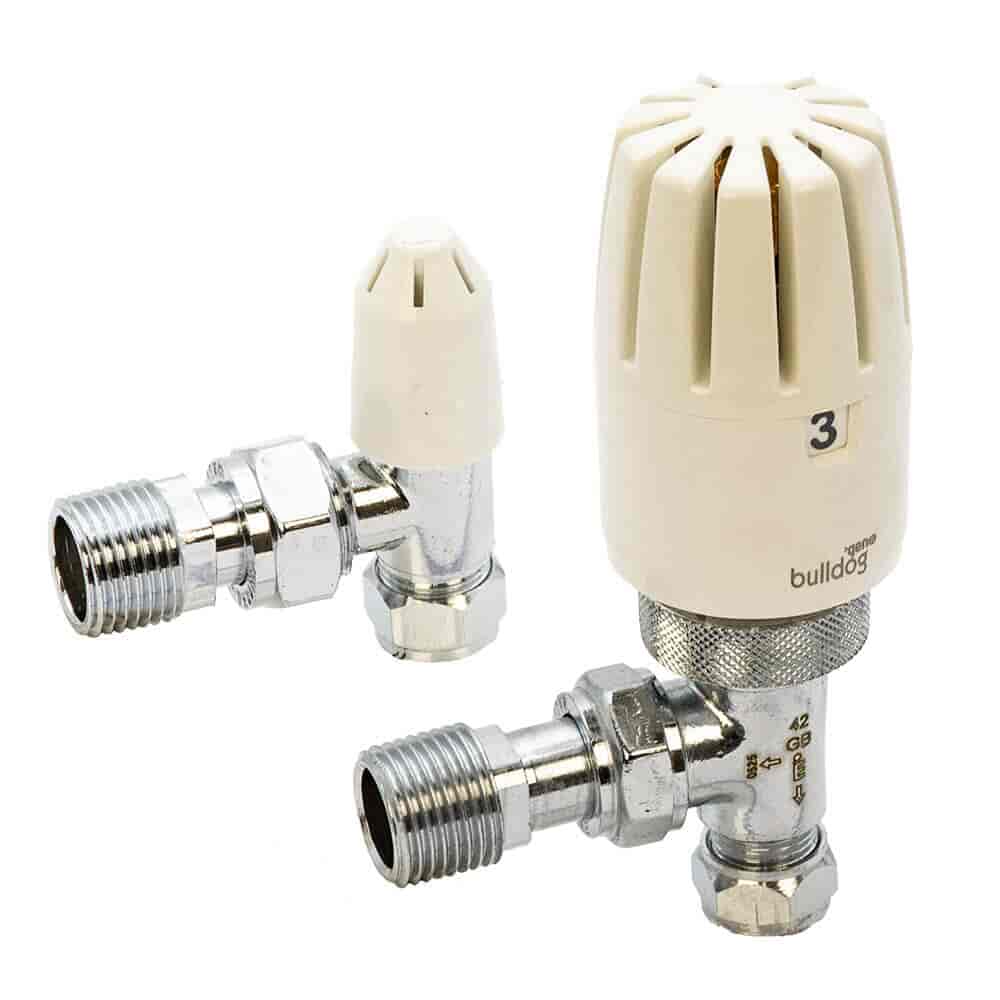

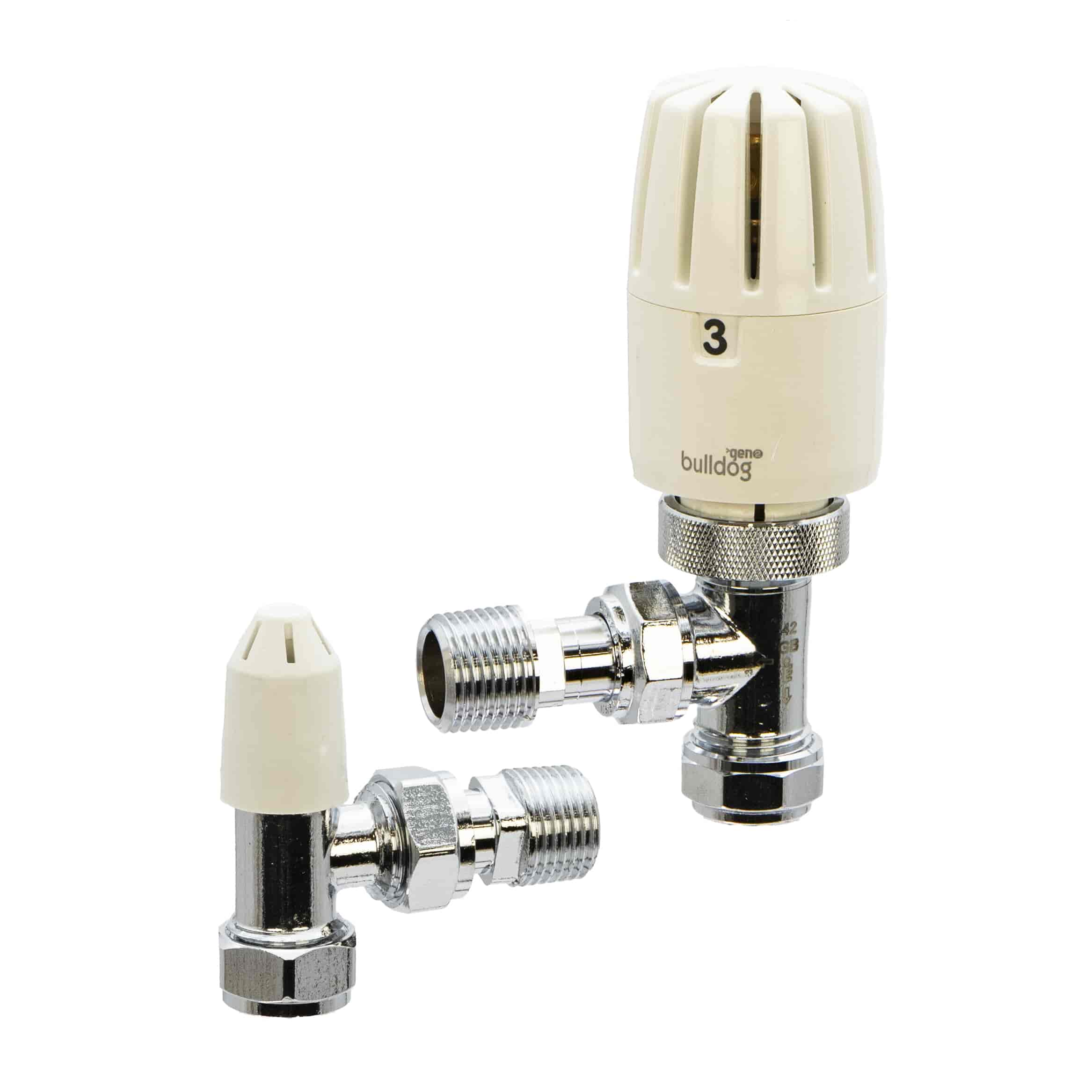

Pegler Bulldog GEN2 Angled TRV & Lockshield Set – 10/8mm
A super flexible, EN 215-approved angled TRV and lockshield combo for 10/8mm x ½" BSP radiator installations. The Pegler Bulldog GEN2 is pretty versatile - it can be installed vertically or horizontally on either the flow or return pipes - and it's got frost protection kicking in at a chilly 7°C, a shut off setting for when you need to isolate the radiator and an adjustable temperature range of 11-29°C. Plus it can handle a max static pressure of 10 bar.
The Pegler Bulldog GEN2 Angled TRV & Lockshield Set is the standard issue valve pack for 10/8mm radiator installs where things get tight. The angled body makes it a synch to install in cramped spaces and low-level radiator positions - no need for loads of extra pipework or awkward bends. It's super flexible in terms of where you can install it - vertical or horizontal, flow or return, it'll work with whatever pipework configuration you've got.
One of the useful features of the TRV is the frost setting at 7°C. It'll automatically kick in when the heating's turned off to prevent any ice damage to the system - pretty handy for when you're leaving your place empty during cold snaps. There's also a shut off setting that lets you isolate the radiator without having to affect the rest of the system. And with temp control going from 11 to 29°C, you've got all your domestic heating needs covered. The lockshield keeps the water flow balanced across the system as well. And it's all good to go up to 10 bar static pressure - which is about the max you'll ever get in a standard home heating system and meets all the EN 215 standards for thermostatic radiator valves.
Key Features & Benefits
EN 215 compliant - Yep, we're talking top-notch European standard for TRVs - the right spec for pros.
Frost protection kicks in at 7°C - Automatically protects the system when you're not around in the cold weather.
Shut-off setting so you can isolate the radiator - No need to drain the system or whatever - just turn the tap.
Adjustable temperature range 11-29°C - All the comfort and energy efficiency you need for your heating.
Angled valve design for tight spaces - Saves you a job by not needing loads of pipework or extra bends.
Vertical or horizontal installation - no probs - Installs either way, flow or return, no problem.
Maximum static pressure 10 bar - All the pressure you'll ever need for a standard home heating system.
10/8mm x ½" BSP connections - Standard gear, fits in with what you've already got - no need for any fancy adaptors.
Ideal For
Domestic radiator installs & replacement jobs
When you're working in cramped spaces
Flow or return pipe configurations - no need to think about that either
Vertical or horizontal pipework - it'll fit it all.
It solves the problem of straight TRVs not fitting - Most of the time you're dealing with some sort of space constraint. The angled design gets it in where a straight one can't.
Having frost and shut-off on one TRV makes life easier - No need for loads of extra bits - just one valve head to turn and you're good to go.
Pegler Yorkshire's Bulldog range is respected in the trade - They're the real deal - lots of installers already swear by them.
A reliable angled TRV set from a name you can trust. If you need an EN 215-compliant valve pack for your next install you've come to the right place. The Pegler Bulldog GEN2 Angled TRV & Lockshield Set is in stock and ready to roll. Order now and sort your next radiator install with a valve combo that's going to get the job done right.
Specification
Pegler Yorkshire Bulldog II Angled TRV & Lockshield Set - 10/8mm Specification
Brand
Pegler Yorkshire
Sub Brand
Bulldog
Model
Bulldog GEN2 Angled TRV & Lockshield Set
Type
Thermostatic Radiator Valve (TRV) Set
Valve Shape
Angled
Connection Size
10/8mm x ½" BSP
Temperature Range
11 to 29°C
Frost Setting
7°C
Shut-Off Setting
Yes
Maximum Static Pressure
10 bar
Installation Orientation
Vertical or horizontal
Flow / Return
Suitable for both flow and return
Standard
EN 215
Includes
Angled TRV & lockshield valve
Features
Pegler Yorkshire Bulldog II Angled TRV & Lockshield Set - 10/8mm Features
EN 215 Compliant — Meets the European standard for thermostatic radiator valves — the correct specification for professional heating installations.
Frost Protection at 7°C — Activates automatically to protect the heating system during cold periods when not in use.
Shut-Off Setting — Allows the radiator to be fully isolated without draining the system or affecting other radiators.
Adjustable Temperature Range 11–29°C — Full practical range for domestic heating comfort and energy-efficient temperature control.
Angled Valve Design — Fits in confined spaces and tight pipe runs where straight valves would require additional bends or adaptors.
Vertical or Horizontal Installation — Installs in either orientation, on flow or return — no constraints on installation position.
Maximum Static Pressure 10 Bar — Covers all standard domestic heating system operating pressures reliably.
10/8mm x ½" BSP Connections — Standard domestic sizing — integrates directly into existing plumbing systems.
