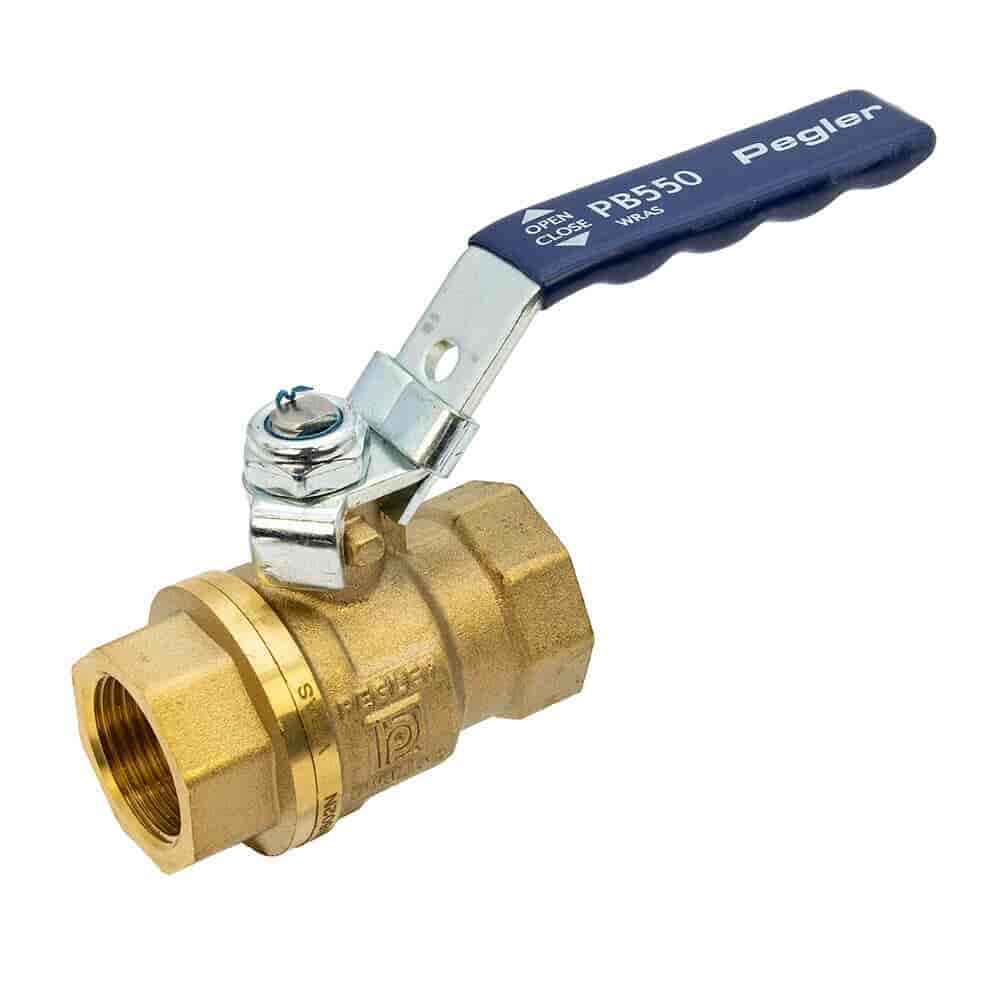

Pegler PB550PT 3/4" BSP F x F Full Bore Ball Valve – Blue Lever Handle - WRAS Approved Isolation Valve for Water, Heating & Gas Systems
The Pegler PB550PT 3/4" Full Bore Lever Ball Valve with blue handle is a top of the range, WRAS-approved valve designed for reliability, durability and long life. Quarter turn operation and PTFE ball seats ensure smooth control, leak free sealing and minimal pressure loss.
Made from DZR brass with a PN25 rating, the PB550PT is corrosion resistant and strong for potable water, heating, air and steam applications. The compact full bore design gives high flow capacity and the blue lever handle makes it easy to identify and operate in cold service systems.
Key Features & Benefits
WRAS Approved – Safe for use in potable water systems, meets industry standards.
3/4" BSP Female x Female Threads – Standard BSP parallel connections for quick and easy installation.
Full Bore Design – Maximises water flow and minimises pressure drop, more efficient.
DZR Brass Body – Corrosion resistant and durable in aggressive water conditions.
PTFE Ball Seats – Reliable, leak proof seal and smooth operation.
PN25 Rated – Up to 25 bar, suitable for residential, commercial and industrial systems.
Blue Lever Handle – Easy to identify for cold service, 90° quarter turn operation.
Blow-Out & Vandal Resistant – Safe and long lasting.
Versatile Use – Water, air, steam and potable water isolation.
Low Maintenance – Long trouble free service with minimal maintenance required.
Buy the Pegler PB550PT 3/4" Blue Lever Ball Valve Now
Choose the Pegler PB550PT Full Bore Lever Ball Valve for reliability, WRAS approved safety and long life. For isolating pipes in residential, commercial and industrial systems. Add to Basket Now and get safe, efficient flow control with Pegler
Specification
Pegler PB550PT 3/4" BSP F x F Full Bore Ball Valve – Blue Lever Handle Specification
Brand
Pegler
Approvals
WRAS Approved
Connection
3/4" BSP Female x Female (Parallel)
Valve Type
Full Bore Lever Ball Valve
Handle Type
Lever
Handle Colour
Blue
Body Material
DZR Brass, PTFE Seats
Finish
Brass
Max Operating Pressure
25 bar (PN25)
Operating Temperature Range
-10°C to +150°C
Applications
Water, Air, Steam, Potable Water
Size
3/4" BSP
Lockable
No
Features
Pegler PB550PT 3/4" BSP F x F Full Bore Ball Valve – Blue Lever Handle Features
WRAS Approved – Certified safe for use in potable water systems, meeting strict industry standards.
3/4" BSP Female x Female Threads – Standard BSP parallel connections for quick and secure installation.
Full Bore Design – Maximises water flow while minimising pressure drop, improving efficiency.
DZR Brass Body – Provides superior corrosion resistance and durability in aggressive water conditions.
PTFE Ball Seats – Ensure a reliable, leak-proof seal and smooth operation.
PN25 Rated – Handles up to 25 bar, suitable for demanding residential, commercial, and industrial systems.
Blue Lever Handle – Easy identification for cold service, with quick 90° quarter-turn operation.
Blow-Out & Vandal Resistant – Engineered for safety and long-term reliability.
Versatile Use – Suitable for water, air, steam, and potable water isolation.
Low Maintenance – Designed for long, trouble-free service with minimal upkeep required.
