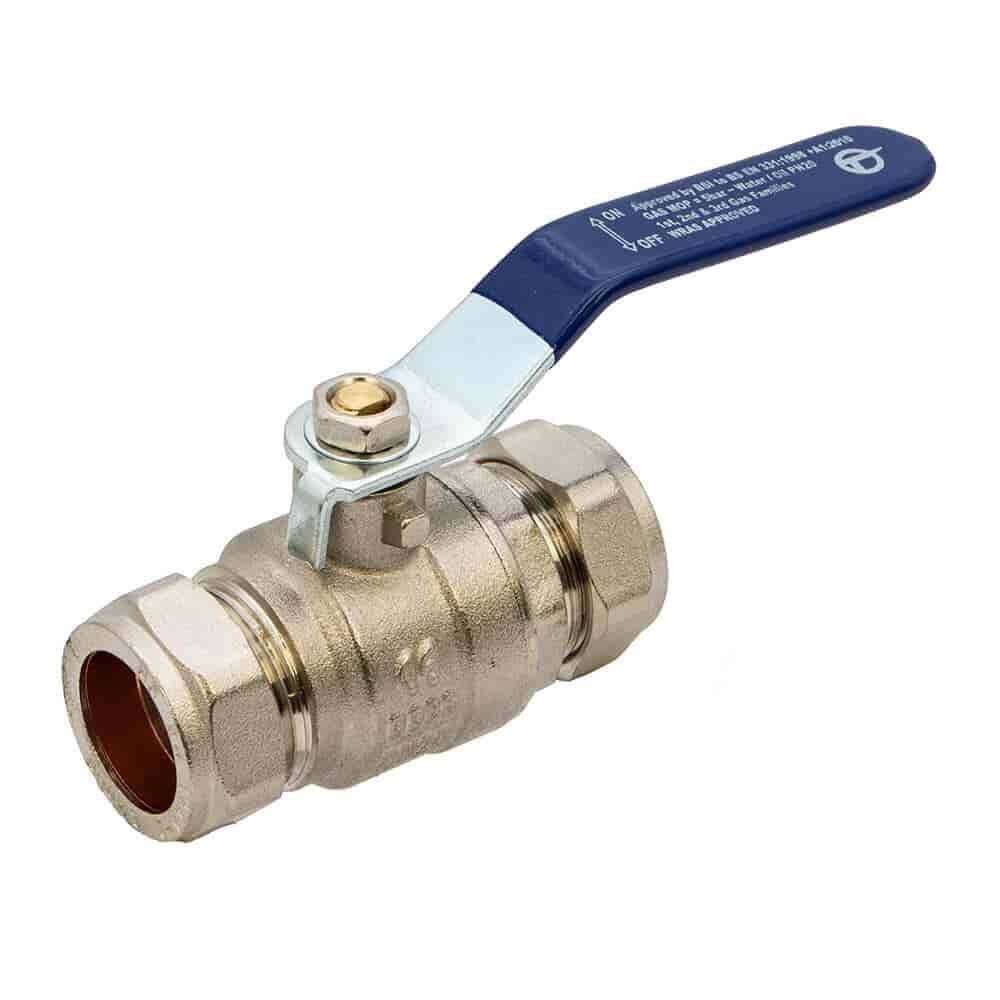

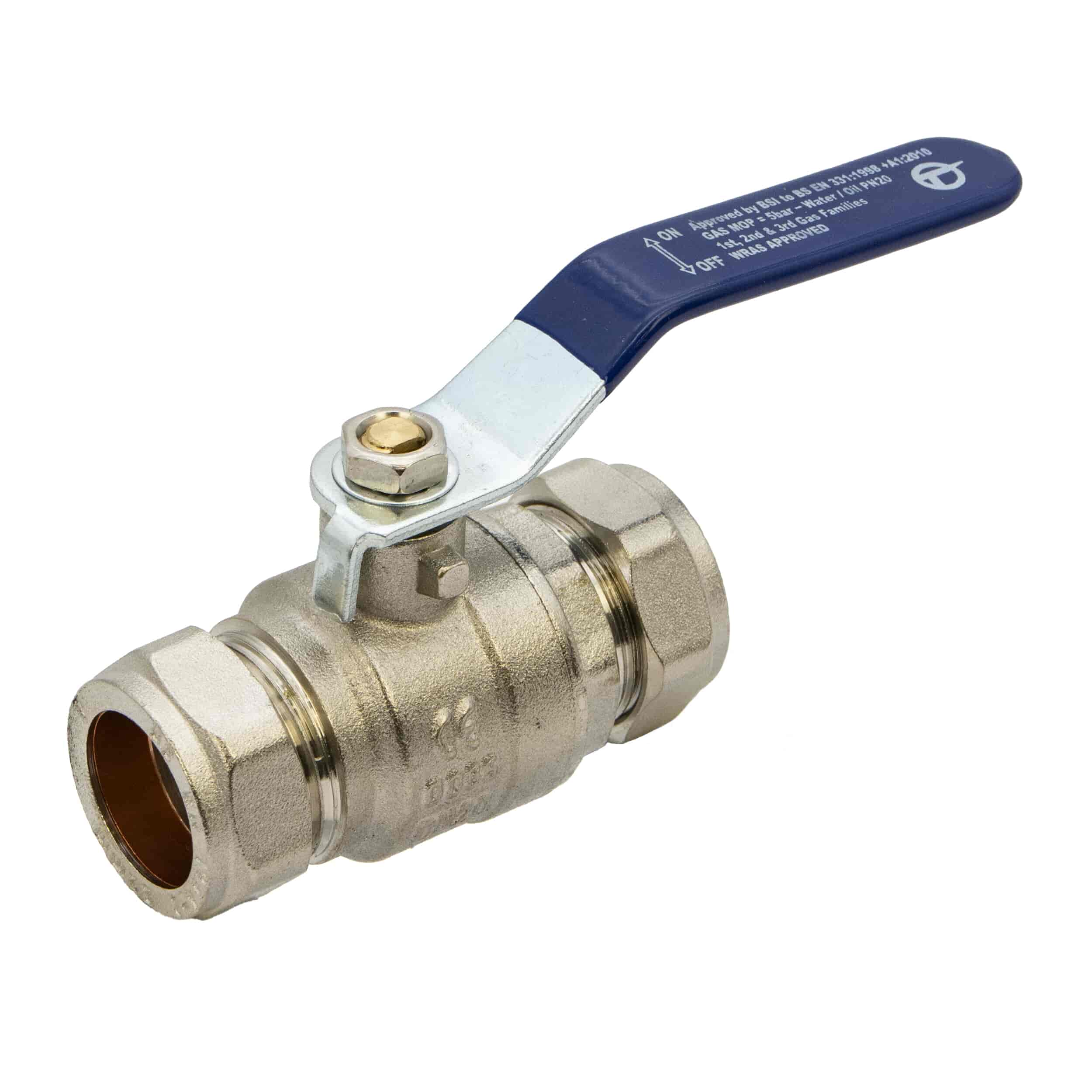

The Tesla 22mm Lever Ball Valve is a robust, WRAS-approved full bore compression valve for fast, secure and efficient shut-off control in domestic, commercial and industrial systems. With a nickel-plated brass body and a blue lever handle, this valve is reliable across a wide range of applications including water, steam, oil, gas and air.
It complies with EN 331:1998+A1:2010 standards for performance, safety and compliance, suiting installers and engineers looking for quality, longevity and ease of use.
A full bore design means this valve doesn't restrict flow the way a reduced-bore valve would, keeping pressure drop minimal across the isolation point. Being rated across water, steam, oil, air and gas in one valve gives genuine versatility, so the same part can be stocked for multiple job types rather than needing separate valves for each media.
Order the Tesla 22mm Lever Ball Valve with Blue Handle online today.
| Brand | Tesla |
|---|---|
| Part Number | GB/BVL22B |
| Approvals | WRAS Approved, EN 331:1998+A1:2010 |
| Connection | 22mm Compression |
| Valve Type | Full Bore Ball Valve |
| Handle Type | Lever |
| Handle Colour | Blue |
| Body Material | Brass, Nickel Plated |
| Max Operating Pressure | 20 bar |
| Operating Temperature Range | -5°C to 150°C |
| Applications | Water, Steam, Oil, Air, Gas |
| Size | 22mm |
| Lockable | No |
