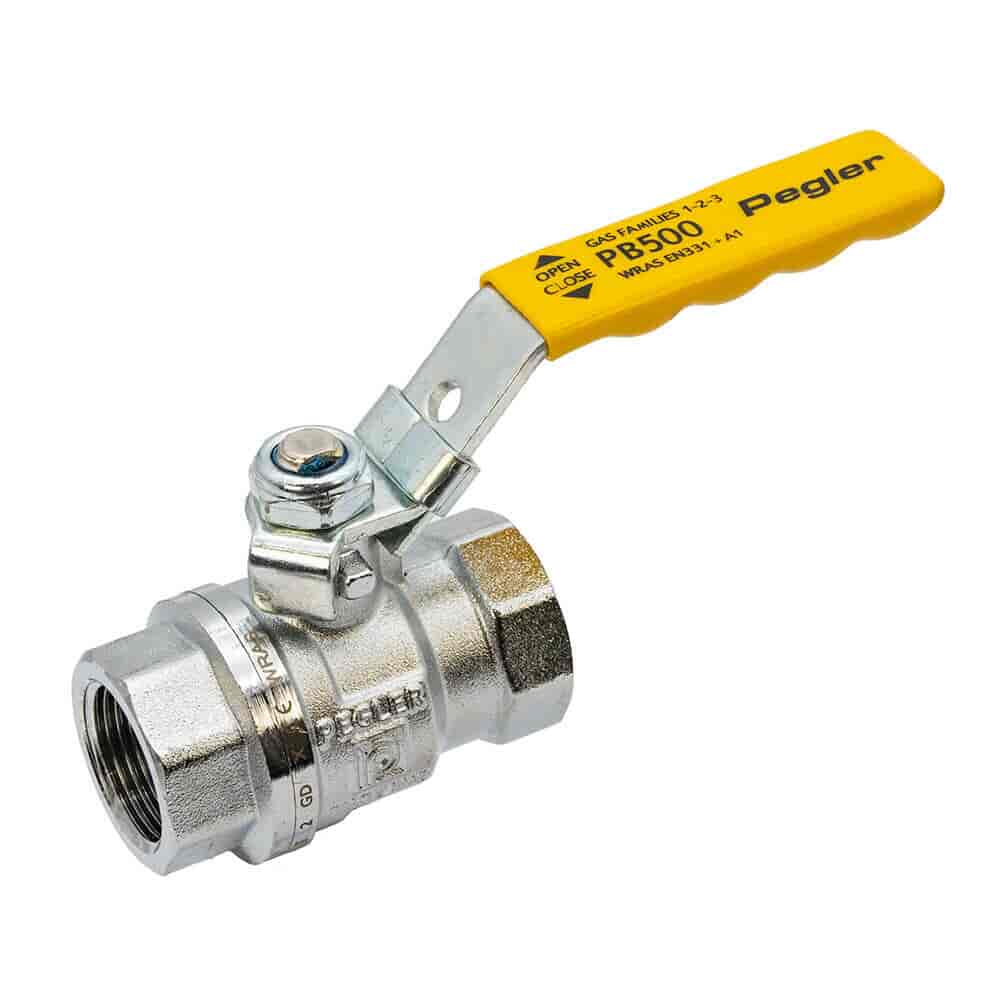

The PB500 valve, part of the Pegler range, is a compact and user-friendly quarter-turn ball valve, engineered for extended, hassle-free performance. It serves as an efficient solution for isolating various fluids or gases in pipelines. Key features include:
PN25 rating for high-pressure applications
Full bore design for optimal flow
Blow-out and vandal-proof construction for enhanced safety and security
PTFE ball seals for reliable sealing and low maintenance
Equipped with a handle that incorporates a locking device for additional safety and operational control.
Specification
Pegler PB500 Full Bore Gas Lever Ball Valve - 1/2" Bsp FM Specification
Brand
Pegler Yorkshire
Standards
BS EN 331:1998+A1:2010
Kitemark
BS EN 331:1998+A1:2010
Connection
BSP Female
Finish
Plated
Full Bore
Yes
Handle
Lever
Handle Colour
Yellow
Material
Brass
Max Operating Pressure
25 Bar
Operating Temperature
-10° C to 150° C
Size
1/2" Bsp Female
Dimensions
125 x 25 x 60mm
Applications
Natural Gas & LPG
Gas Family
1st, 2nd & 3rd Families
Lockable
Yes
Features
Pegler PB500 Full Bore Gas Lever Ball Valve - 1/2" Bsp FM Features
PN25
Full bore
Blow-out and vandal proof assembly
PTFE ball seals
Handle with locking device
