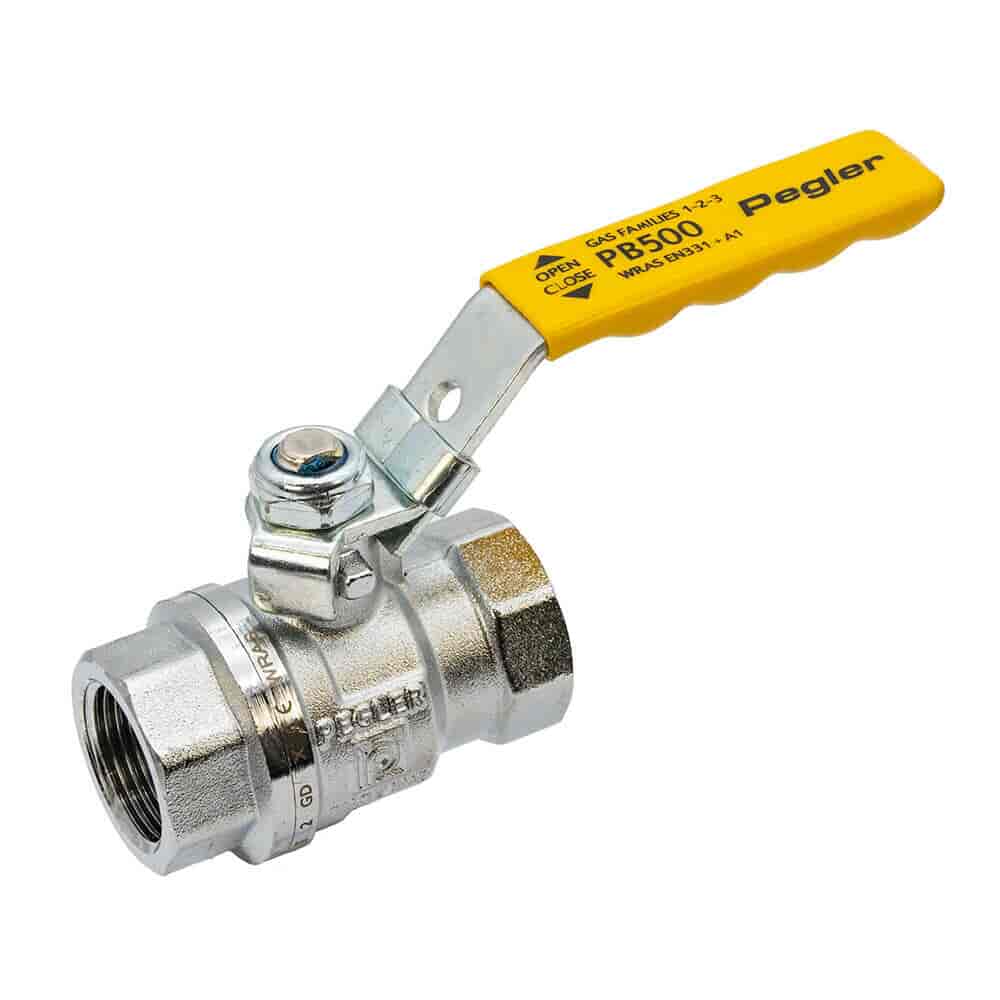

Pegler PB500 Full Bore Gas Lever Ball Valve - 3/4" Bsp FM

Only 2 in Stock
Only 2 left
SKU
PG101
£10.56 £8.80
Or 3 Interest-Free Payments of £3.52
apple pay
klarna
google pay
paypal
  • 24 +
    £9.24 £7.70 each
    save 12%
chevron-up
Description

The PB500 valve, part of the Pegler range, is a compact and user-friendly quarter-turn ball valve, engineered for extended, hassle-free performance. It serves as an efficient solution for isolating various fluids or gases in pipelines. Key features include:

  • PN25 rating for high-pressure applications
  • Full bore design for optimal flow
  • Blow-out and vandal-proof construction for enhanced safety and security
  • PTFE ball seals for reliable sealing and low maintenance
  • Equipped with a handle that incorporates a locking device for additional safety and operational control.
Specification

Pegler PB500 Full Bore Gas Lever Ball Valve - 3/4" Bsp FM Specification

Brand Pegler Yorkshire
Standards BS EN 331:1998+A1:2010
Kitemark BS EN 331:1998+A1:2010
Connection BSP Female
Finish Plated
Full Bore Yes
Handle Lever
Handle Colour Yellow
Material Brass
Max Operating Pressure 25 Bar
Operating Temperature -10° C to 150° C
Size 3/4" Bsp Female
Dimensions 140 x 35 x 65mm
Applications Natural Gas & LPG
Gas Family 1st, 2nd & 3rd Families
Lockable Yes



Features

Pegler PB500 Full Bore Gas Lever Ball Valve - 3/4" Bsp FM Features

  • PN25
  • Full bore
  • Blow-out and vandal proof assembly
  • PTFE ball seals
  • Handle with locking device
