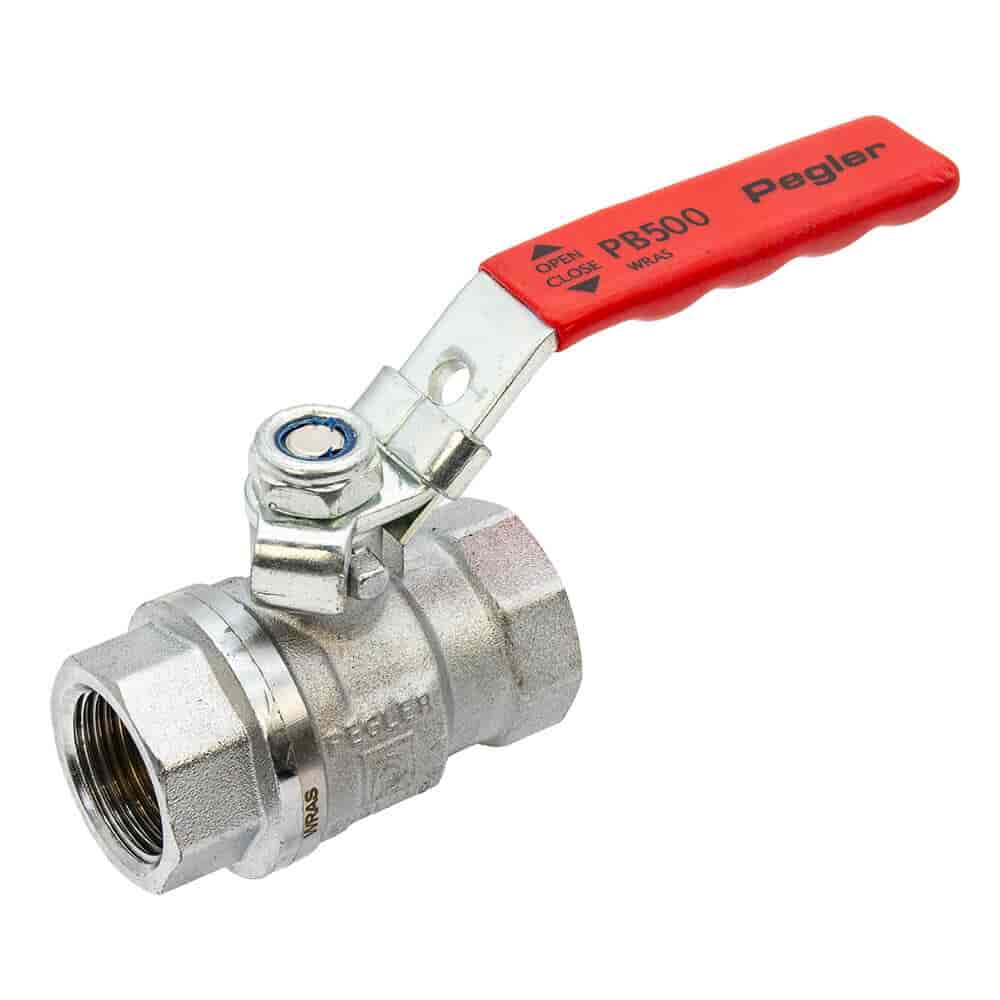

Pegler PB500 3/4" BSP F x F Full Bore Ball Valve – Red Lever Handle - Heavy-Duty, WRAS Approved Quarter-Turn Isolation Valve
The Pegler PB500 3/4" BSP Full Bore Ball Valve with red lever handle is a top quality, WRAS-approved valve for high performance, long life and low maintenance. Suitable for isolating a wide range of fluids and gases this full bore valve gives maximum flow with minimal pressure drop ideal for domestic and commercial systems.
Built to last the PB500 has PTFE ball seals for leak proof reliability, vandal and blow out resistant design and locking lever handle for added safety and control. With 3/4" BSP female to female connections it fits into pipelines for fast and secure installation.
Key Features & Benefits
WRAS Approved – Safe for potable water systems meets strict regulations.
3/4" BSP Female x Female Connections – Easy to fit into plumbing and pipeline systems.
Full Bore Design – Maximum flow efficiency with minimal pressure loss.
Brass Construction – Nickel plated for corrosion resistance and long life.
PTFE Ball Seals – Tight seal prevents leaks and improves system reliability.
Red Lever Handle – Quick 90° quarter turn operation, hot water or general service.
Lockable Handle – Built in locking mechanism for added safety.
High Pressure Rated – PN25 rated up to 25 bar.
Wide Operating Range – -10°C to +150°C suitable for multiple applications.
Low Maintenance – Trouble free operation and long life.
Buy the Pegler PB500 Ball Valve Now
The Pegler PB500 3/4" BSP Full Bore Ball Valve with Red Lever Handle is the isolation solution for water, air, steam and potable water systems. Strong, precise and easy to use this WRAS approved valve is safe and reliable for residential, commercial and industrial use. Add to Basket Now for a reliable isolation valve.
Specification
Pegler PB500 3/4" BSP F x F Full Bore Ball Valve – Red Lever Handle Specification
Brand
Pegler
Approvals
WRAS Approved
Connection
3/4" BSP Female x Female
Valve Type
Full Bore Lever Ball Valve
Handle Type
Lever
Handle Colour
Red
Body Material
Brass, Nickel Plated
Ball Material
Hard Chrome Plated Brass
Seat Material
PTFE
Max Operating Pressure
25 bar (PN25)
Operating Temperature Range
-10°C to +150°C
Applications
Water, Air, Heating, Chilled Systems, HWS Primary Side
Size
3/4" BSP
Lockable
Yes
Features
Pegler PB500 3/4" BSP F x F Full Bore Ball Valve – Red Lever Handle Features
WRAS Approved – Certified safe for potable water systems, meeting strict regulatory standards.
3/4" BSP Female x Female Connections – Provides straightforward integration into plumbing and pipeline systems.
Full Bore Design – Ensures maximum flow efficiency with minimal pressure loss.
Durable Brass Construction – Nickel-plated finish provides corrosion resistance and long service life.
PTFE Ball Seals – Engineered for a tight seal, preventing leaks and improving system reliability.
Red Lever Handle – Quick 90° quarter-turn operation, clearly indicating hot water or general service.
Lockable Handle – Built-in locking mechanism provides extra safety and security.
High Pressure Rated – PN25 rating ensures robust performance up to 25 bar.
Wide Operating Range – Withstands temperatures from -10°C to +150°C, suitable for multiple applications.
Low Maintenance – Designed for trouble-free operation and long-lasting performance.
