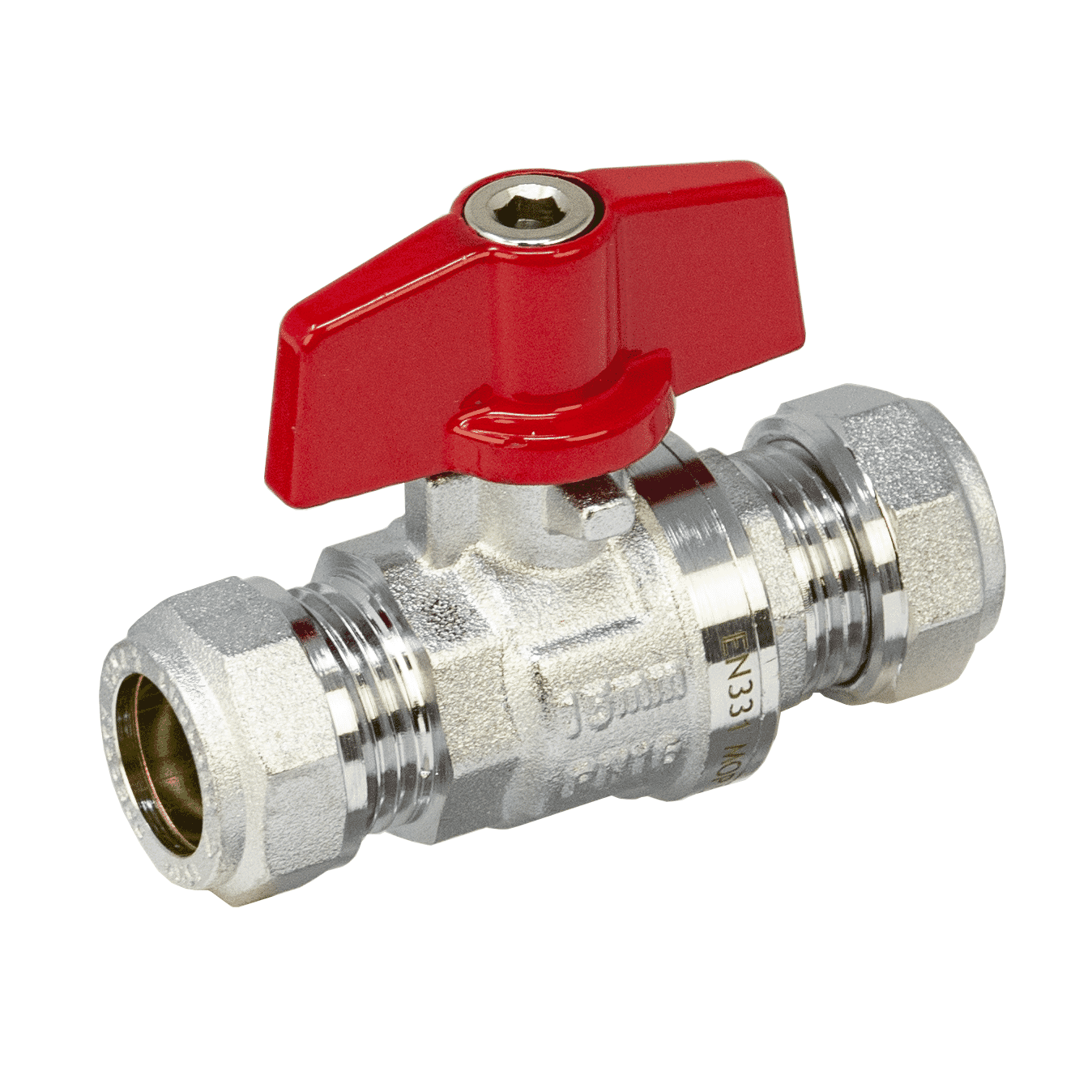

The Pegler PB300T 15mm Full Bore Tee Ball Valve is a compact, high-spec isolation valve for use in domestic and commercial water and fluid systems. With quarter-turn operation, full bore and compression fittings, this valve gives low-resistance flow, easy installation and long life.
Part of the Prestex Ball Valve range, the PB300T has a vandal-resistant, blow-out proof assembly, PTFE seals and a red T-handle for simple, precise control. It's rated for no minimum operating pressure, up to 16 bar at temperatures up to 30°C, and up to 5 bar at temperatures up to 120°C, making it suited to hot/cold water, HVAC and general fluid isolation applications.
Full bore design keeps flow resistance minimal at the isolation point, and a vandal-resistant, blow-out proof assembly makes this a dependable choice for exposed installations where tampering or accidental knocks are a concern. The tiered pressure/temperature rating genuinely reflects real-world performance across both cold and hot water applications rather than a single blanket figure.
Order the Pegler PB300T 15mm Full Bore Tee Ball Valve with Red Handle online today.
| Brand | Pegler PB300 |
|---|---|
| Part Number | 255002 |
| Approvals | WRAS, BSI |
| Connection | Compression |
| Finish | Chrome Plated Brass |
| Full Bore | Yes |
| Handle | Tee |
| Handle Colour | Red |
| Material | Forged Brass, Chrome Plated |
| Max Operating Pressure | No Minimum; 16 bar up to 30°C; 5 bar up to 120°C |
| Applications | Water |
| Size | 15mm |
