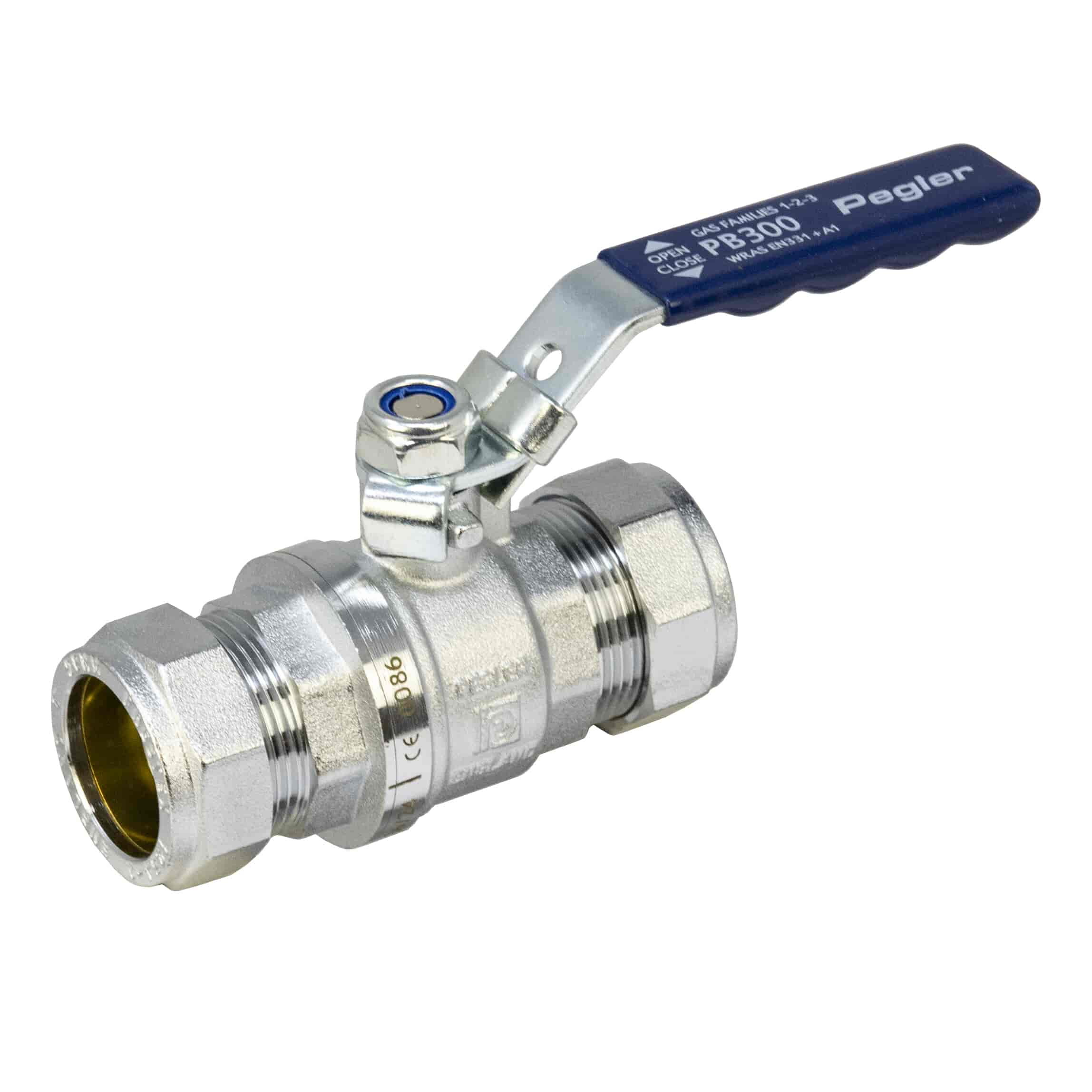

The Pegler PB300 28mm Full Bore Ball Valve is a premium-quality flow control valve designed for use in residential and commercial plumbing and heating systems. With its full bore design, the valve allows maximum flow with minimal pressure loss, making it ideal for installations that demand high efficiency and reliability.
Manufactured by Pegler, a trusted name in plumbing solutions, the PB300 is made from chrome-plated brass, with compression ends to EN 1254/2, and a blue lever handle for clear visual identification and smooth, quarter-turn operation.
With 28mm compression connections, this ball valve offers easy installation into standard pipework systems and is rated for no minimum operating pressure, up to 16 bar at temperatures up to 30°C, and up to 5 bar at temperatures up to 120°C — suitable for water, steam, oil and air applications.
Full bore design keeps flow resistance minimal at the isolation point, and quarter-turn lever operation gives fast, easy shut-off with a clear visual colour indication. The tiered pressure/temperature rating genuinely reflects real-world performance across both cold and hot water applications, and versatility across water, steam, oil and air makes it useful beyond standard plumbing work.
Order the Pegler PB300 28mm Full Bore Ball Valve with Blue Lever Handle online today.
| Brand | Pegler PB300 |
|---|---|
| Part Number | 254023 |
| Approvals | WRAS, BSI |
| Connection | Compression (EN 1254/2) |
| Finish | Chrome Plated Brass |
| Full Bore | Yes |
| Handle | Lever |
| Handle Colour | Blue |
| Material | Brass, Chrome Plated |
| Max Operating Pressure | No Minimum; 16 bar up to 30°C; 5 bar up to 120°C |
| Applications | Water, Steam, Oil, Air |
| Size | 28mm |
