GFS® 1000mm x 1/2" BSP TM, with a 1/2" diameter bore, in yellow is designed for compatibility with all three types of gas families, this hose is crafted from 316L stainless steel, featuring a corrugated and braided design, and is coated with PVC for added protection. These hoses are produced to meet high standards, holding BSI approval and the Kitemark for BS EN 14800, alongside CE certification.
The bayonet fitting includes a swivel metal elbow and a knurled metal locking collar, ensuring compatibility with BS 669-1 standard and EN 15069 approved sockets, all in stainless steel. The hose's all-metal connection points are designed to withstand the high temperature requirements of BS EN 1775. This product is manufactured in the EU by a company certified with EN ISO 9001.
For use on LPG, Natural Gas, 98% Hydrogen and Methane Hydrogen blend.

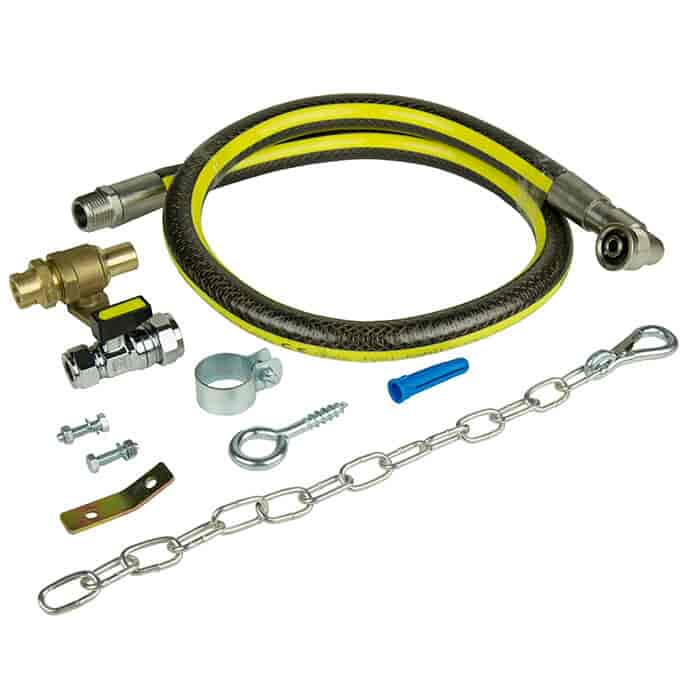

Gas Cooker Installation Kit 2 consists of:
| Brand | GFS® |
|---|---|
| Approvals | Manufactured in accordance with EN 14800:2007 standard |
| Connection | 1/2" Bsp Taper Male x Micropoint |
| Colour | Yellow/Clear |
| Length | 1000mm |
| Material | Stainless Steel/PVC |
| Size/Bore | 1/2" |
| Max Operating Pressure | 0.5 bar |
| Gas Type | 1st, 2nd & 3rd Family gases (Suitable for use with Natural Gas & LPG) |
| Operating Range | -20° C to 80° C |
| Application | Gas Cooker Hose |
| Kit Contents |
HA127 - GFS® Micropoint Plug-In Bayonet Gas Cooker Hose 1000mm HA559 - Micropoint socket and backplate HA170 - Stability chain HA187 - 15mm x 10mm Mini ball valve |
