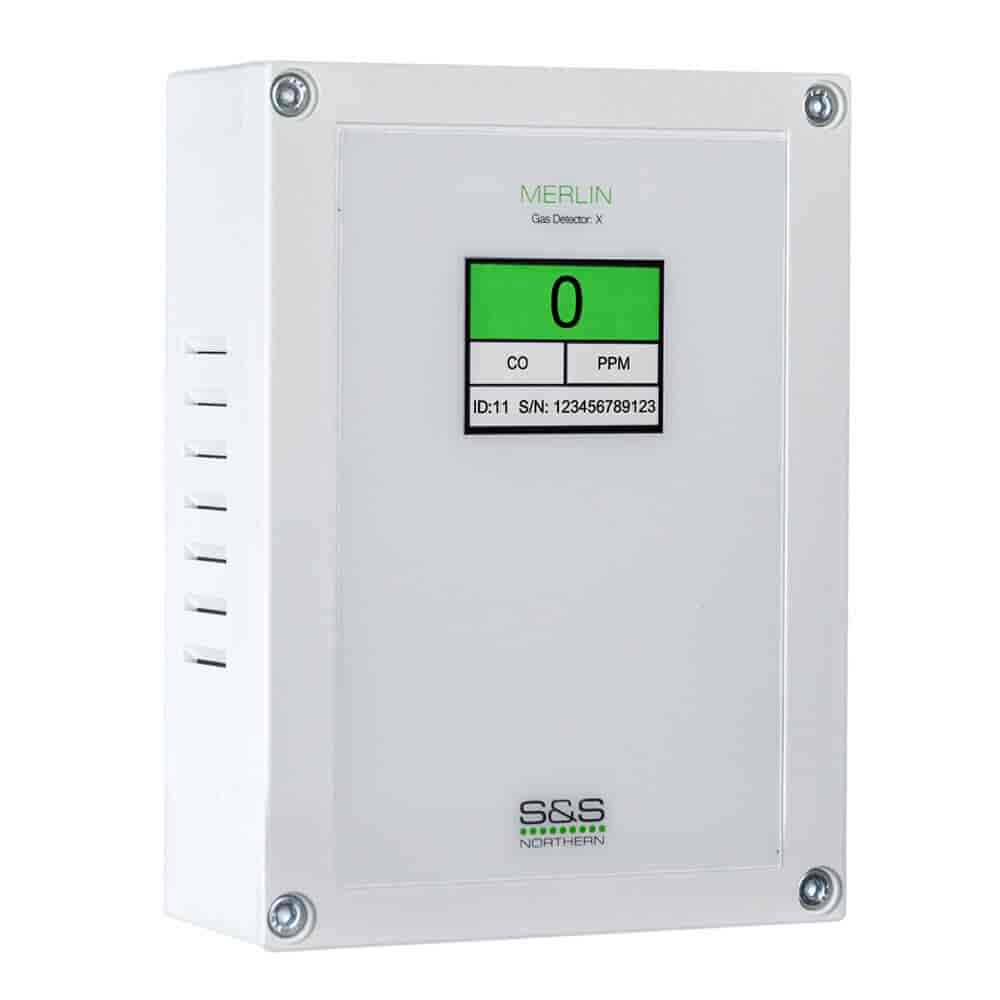

The Merlin Gas Detector X-Range for Carbon Monoxide (CO) is designed to work seamlessly with the S&S Merlin range of Gas Detection Panels and Safety Systems. Featuring a semiconductor-type sensor, this detector is ideal for industrial and commercial indoor applications, offering a compact, modern, and digital design that is both aesthetically pleasing and easy to install.
Precise CO Detection: Designed to detect carbon monoxide buildup effectively, with the sensor positioned at 1700mm above ground level for optimal detection.
Ideal for Car Parks: Recommended installation height is 1600mm above ground level, ensuring efficient detection in parking areas.
Alarm Activation: Triggers an alarm state when carbon monoxide levels exceed 50ppm for over 4 minutes, isolating the gas valve instantly.
Reset Functionality: Requires rectifying the gas leak, clearing the sensor head, and resetting the attached Merlin panel to resume normal operations.
Dual-Level Alarms: Features both low and high-level alarms for comprehensive safety monitoring.
Visual Indicators: Traffic light-style gas level display indicator provides clear visual feedback on gas levels.
Modbus RTU Compatibility: Ensures easy integration with existing systems.
Built-In Test Button: Facilitates onsite commissioning and ensures proper functionality.
Easy Installation: Straightforward to install, making it suitable for various applications.
System Compatibility: Can be used with other Merlin Gas Safety Systems for enhanced safety management.
Reliable Warranty: Backed by a 3-year warranty from S&S Northern Ltd for peace of mind.
Specification
Merlin Gas Detector X-Range - CO (Carbon Monoxide) Specification
Manufacturer
S&S Northern
Product Type
CO (Carbon Monoxide) Sensor
Approvals
BS EN 50270 / BS EN 61010-1
Power Supply
12-32V DC (24vdc Nominal)
Power Consumption
90mA at 24vdc
Communication
RS485, Modbus RTU
BMS Terminal
Volt Free (Normally Closed / Common / Normally Open)
Relay(s)
1 x 30vdc 2A (Non Latching)
Indicators (LED)
Green (Safe), Yellow (Special State) & Red (Alarm). Gas Type & Detected Concentration Level. Measured Value Detector ID No. Serial No. End of Life. Sensor Fault. Service.
Working Temperature Range
-10°C to 50°C
Protective Rating
IP40
Mounting
Wall Mounted
Dimensions
145mm x 95mm x 30mm
Autosetting
Yes
Warranty
3 Years
Sensor Compatability
Merlin Gas Control Sytems
Features
Merlin Gas Detector X-Range - CO (Carbon Monoxide) Features
Advanced CO Detection: Designed to detect carbon monoxide effectively.
Optimal Installation Height: Position sensor at 1700mm above ground level, 1600mm for car parks.
Dual-Level Alarms: Features both low and high-level alarms for comprehensive safety.
Visual Indicators: Traffic light-style gas level display for clear visual feedback.
Automatic Alarm Activation: Triggers at 50ppm CO level for over 4 minutes, isolating the gas valve.
Reset Functionality: Requires locating and resolving the gas source, clearing the sensor head, and resetting the Merlin panel.
Modbus RTU Compatibility: Ensures easy integration with existing systems.
Built-In Test Button: Facilitates easy onsite commissioning and functionality testing.
Easy Installation: Compact and modern design allows straightforward installation.
System Compatibility: Works seamlessly with S&S Merlin Gas Detection Panels and Safety Systems.
Reliable Warranty: Covered by a 3-year warranty from S&S Northern Ltd.
