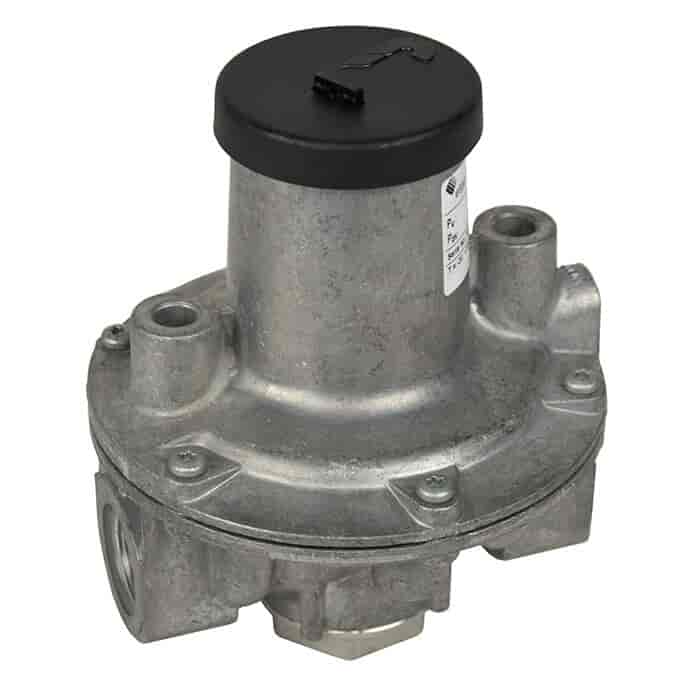

The J48, is a highly adaptable and reliable series of Industrial Low Pressure Regulators, designed to meet the diverse needs of pressure reduction applications. The latest iteration of this trusted regulator series features an innovative quick release spring adjustment mechanism, enhancing accessibility for effortless spring tuning and routine upkeep.
Versatile Applications for Every Need:
The J48 serves as an efficient service and appliance regulator, making it perfect for a variety of settings, from residential and commercial environments to industrial operations. Engineered to work seamlessly with natural, LPG, and manufactured gases, the J48 is a versatile solution for your gas regulation needs.
Flexible Installation Options:
Designed for installation in both horizontal and vertical pipelines, the J48 offers angled connections for specific meter services applications, ensuring a perfect fit for your system. Renowned for its positive lock-up feature, the J48 promises high efficiency and sensitivity, enabling maximum flow with minimal pressure loss.
Precision Control Made Simple:
Choose from a wide selection of springs to achieve the precise outlet pressure control you need. The spring adjustment unit, located conveniently under the top cap, allows for easy and accurate modifications without the hassle of friction or spring wind-up. The entire spring adjustment mechanism is also detachably designed for straightforward maintenance and spring replacement. Additionally, units can be pre-set at the factory and secured with a seal for an extra layer of security.
All sizes may be fixed in any position. Inlet pressures up to 350mbar. Outlet pressures up to 160mbar. Suitable for Natural Gas and LPG
| Brand | Honeywell Elster |
|---|---|
| Model | J48 |
| Approvals | BS EN 88-1:2007. GAD 2009/142/EC |
| Connection | 1" BSP Female |
| Inlet Pressure | Max: 350 mbar |
| Operating Temperature | -20ºC to +70ºC |
| Outlet Pressure | 12.5 - 25 mbar (9-160 mbar with the purchase of optional springs) |
| Pattern | Straight |
| Size | 1" |
| Suitable Applications | Service and appliance regulator for a wide range of domestic, commercial & industrial applications |
| Dimensions | W 125mm x H 166mm x W (∅) 134mm |
