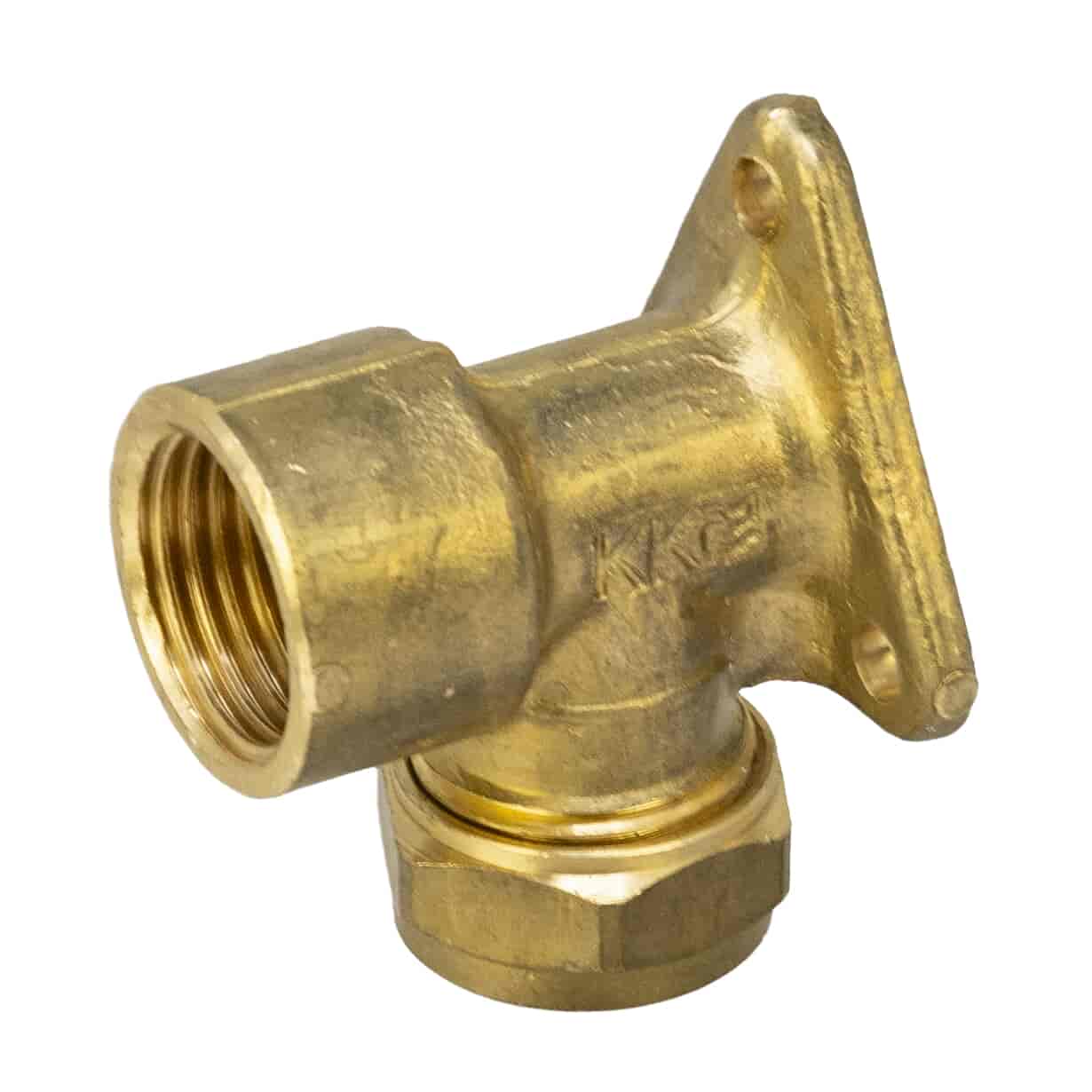

Mounting a tap, valve, or appliance connection to a wall calls for a fitting that provides both a secure pipe connection and a fixed mounting point, and a wallplate elbow does both. This 15mm compression x ½" BSP parallel female wallplate elbow gives a 90° change of direction with integral mounting holes, letting it be fixed rigidly to a surface rather than relying on the pipe alone to hold position.
Made from brass and manufactured to BS EN 1254-2, it's WRAS approved and suitable for use with copper tube to BS EN 1057. The compression joint uses an olive seal that grips the copper pipe mechanically, so there's no soldering or naked flame required — useful for repair and maintenance work in damp conditions or anywhere heat isn't practical. Where used on natural gas or LPG, EN 1254-2 fittings are limited to a maximum operating pressure of 5 bar in accordance with EN 1775.
A tap or valve connection that's only held in place by the pipe behind it will work loose over time, and the wallplate mounting holes on this elbow solve that by fixing the connection point rigidly to the wall. Being heat-free also means it goes in without a torch, which matters on a repair job in a confined or damp space where soldering isn't a practical option.
Order the Wallplate Elbow - 15mm Compression x 1/2" BSP Female online today.
| Brand | Hamilton Gas Products Ltd |
|---|---|
| Product Type | Wallplate Elbow |
| Connection | 15mm Compression x ½" BSP Female (Parallel) |
| Angle | 90° |
| Material | Brass |
| Finish | Brass |
| Mounting | Wallplate with Fixing Holes |
| Pipe Compatibility | Copper Tube to BS EN 1057 |
| Standard/Approval | BS EN 1254-2, WRAS Approved |
| Suitable Applications | Water, Heating, and Low-Pressure Gas (Above Ground, Max 5 Bar per EN 1775) |
