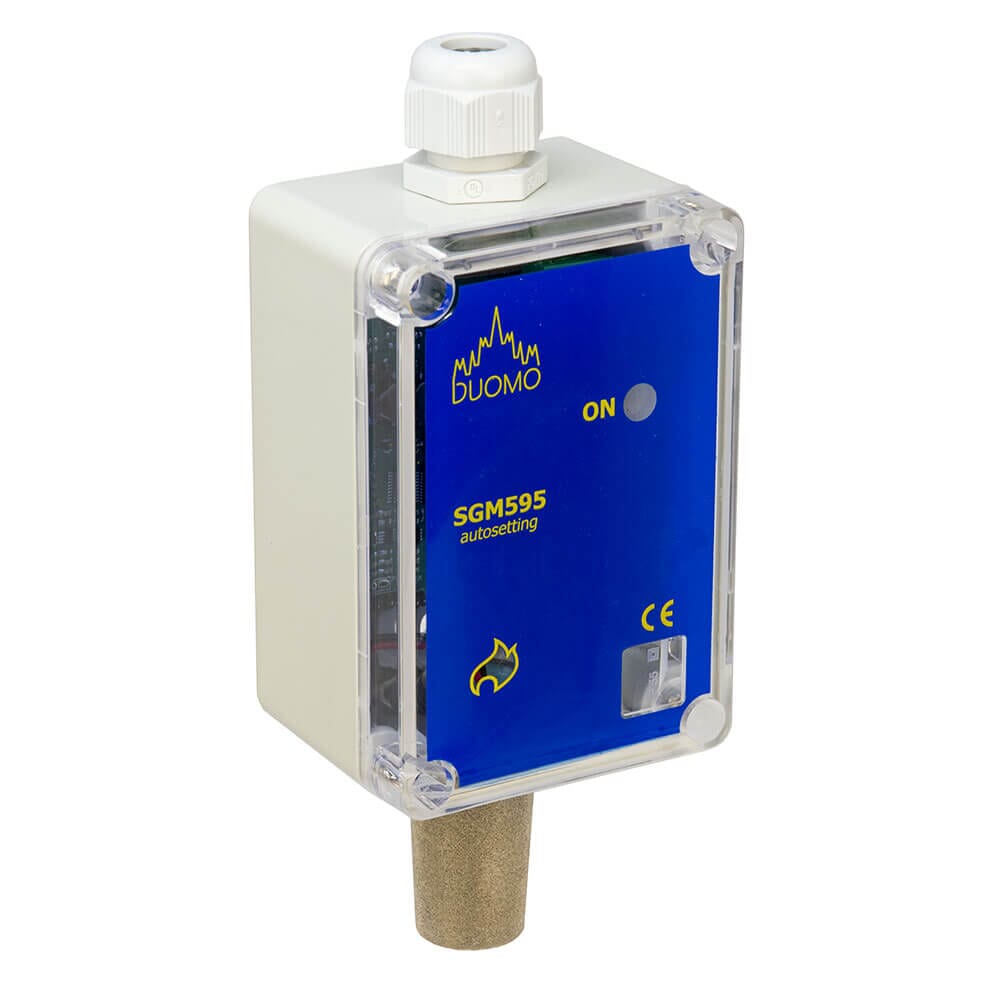

The Duomo SGM595 LPG Gas Sensor is a highly reliable and efficient gas detection device designed for use with the complete range of Duomo conventional detector panels. Specifically targeting Methane CH4 (Natural Gas), this sensor is ideal for a variety of applications, including boiler rooms, kitchens, car parks, aircraft hangars, factories, and shopping centers.
Easy to install, the SGM595 sends signals back to the Duomo gas detector panel, which powers it and interprets the signal to sound alarms and shut off gas supplies to the protected area. This prevents gas from escaping into the atmosphere, ensuring safety.
Featuring automatic drift compensation, the SGM595 offers enhanced performance and extended sensor life. Regular servicing, recommended every 12 months, ensures the sensor remains effective. Manufactured to meet relevant European standards, the SGM595 is recognized for its low cost, high reliability, and suitability for various applications in the gas industry.
Target Gas: LPG
Output Signal: 4-20mA
Auto Calibration: Ensures accurate detection and reliability
Sintered Head: Durable and robust design
Catalytic Sensor Technology: Provides precise gas detection
Sensor Active Indicator: Confirms sensor functionality
Compatibility: Works with GS100M, GS300M, GS300Mc, BX444Mc, BX150, and BX316
Enclosure: IP55 rated for protection against dust and water
Standard Compliance: Designed to EN50194
Warranty: 3-year guarantee for peace of mind
Specification
Duomo SGM595 LPG Gas Alarm Sensor Specification
Manufacturer
Duomo
Product Type
LPG Gas Sensor
Approvals
CE Certification: No.96125
Power Supply
12-24V DC ± 10% from Controller
Power Consumption
80mA at 13.8 V
Output Signal
4-20mA
Device Precision
1% FS
Clean Air Shift
<±3% LEL
Working Temperature Range
-10°C to 50°C
Protective Rating
IP55
Mounting
Wall Mounted
Dimensions
76mm x 176mm x 57mm
Autosetting
Yes
Warranty
2 Years (Extendable to 3 Years with online registration)
Sensor Compatability
All Duomo Controllers (Not BXI32)
Max Sensor Distance
100m
Features
Duomo SGM595 LPG Gas Alarm Sensor Features
LPG Detection: Specifically targets LPG for accurate monitoring.
4-20mA Output Signal: Ensures reliable communication with gas detector panels.
Automatic Calibration: Maintains accuracy and reliability over time with auto-calibration feature.
Durable Sintered Head: Robust design for long-lasting performance.
Catalytic Sensor Technology: Provides precise and efficient gas detection.
Sensor Active Indicator: Confirms that the sensor is functioning correctly.
Wide Compatibility: Compatible with Duomo models GS100M, GS300M, GS300Mc, BX444Mc, BX150, and BX316.
IP55 Enclosure: Offers protection against dust and water, ensuring durability.
Designed to EN50194: Meets stringent European standards for safety and performance.
3-Year Guarantee: Comes with a 3-year warranty for added peace of mind.
Easy Installation: Simple to install, reducing setup time and complexity.
Applications: Ideal for boiler rooms, kitchens, car parks, aircraft hangars, factories, and shopping centers.
Automatic Drift Compensation: Enhances sensor performance and extends lifespan.
Regular Servicing Recommended: Ensures continued efficacy with a minimum of 12-month servicing intervals.
High Reliability: Recognized for providing dependable gas detection solutions across various applications.
