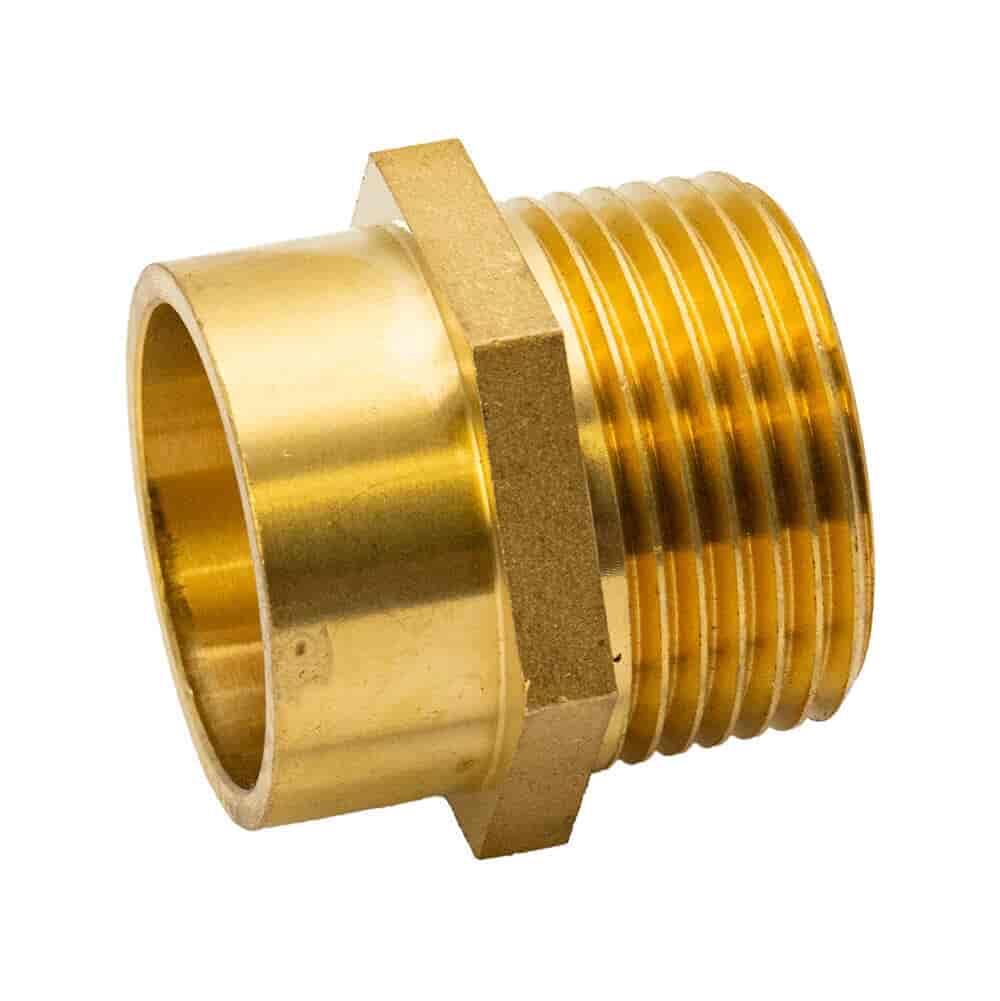

Copper Solder Ring Male Straight Coupler - 28mm x 1" Bsp M

In stock
SKU
M/112808
£3.16 £2.63
Or 3 Interest-Free Payments of £1.05
apple pay
klarna
google pay
paypal
chevron-up
Description

Manufactured from high quality copper material, the solder ring range is ideal for use in drinking and sanitary water systems, both heating and chilled. The embedded ring of solder within the fittings ensures a quick and secure joint whilst removing the need for guess work.

  • WRAS approved.
  • Marked for full traceability.
  • Lead-free solder complying with EN 29453 and ISO 94533.
  • Supported by full manufacturer's warranty.
  • Compliant with relevant British standards - EN1254 / BS864.
Specification

Copper Solder Ring Male Straight Coupler - 28mm x 1" Bsp M Specification

Drinking Water Yes
Sanitary Water Yes
Heating & Chillid Water Systems Yes
Compressed Air Yes
Gas Yes
Available Sizes 8 - 54mm
Operating Parameters

16 bar at 0°c - 30°c

10 bar at 65°c

7 bar at 95°c

6 bar at 110°c

Material Copper & Yellow Brass



Features

Copper Solder Ring Male Straight Coupler - 28mm x 1" Bsp M Features

  • Suitable for hot and cold drinking water, heatingand chilled water systems.
  • Contains lead-free solder complying with EN 29453 and ISO 9453.
  • Embedded solder ensures a quick and secure fitting without the guess-work.
  • Available in sizes 8 - 54 mm.
  • Manufactured from high quality copper material in accordance with EN 1254-1.
  • Suitable for connecting copper tubes in accordance with EN 1057.
