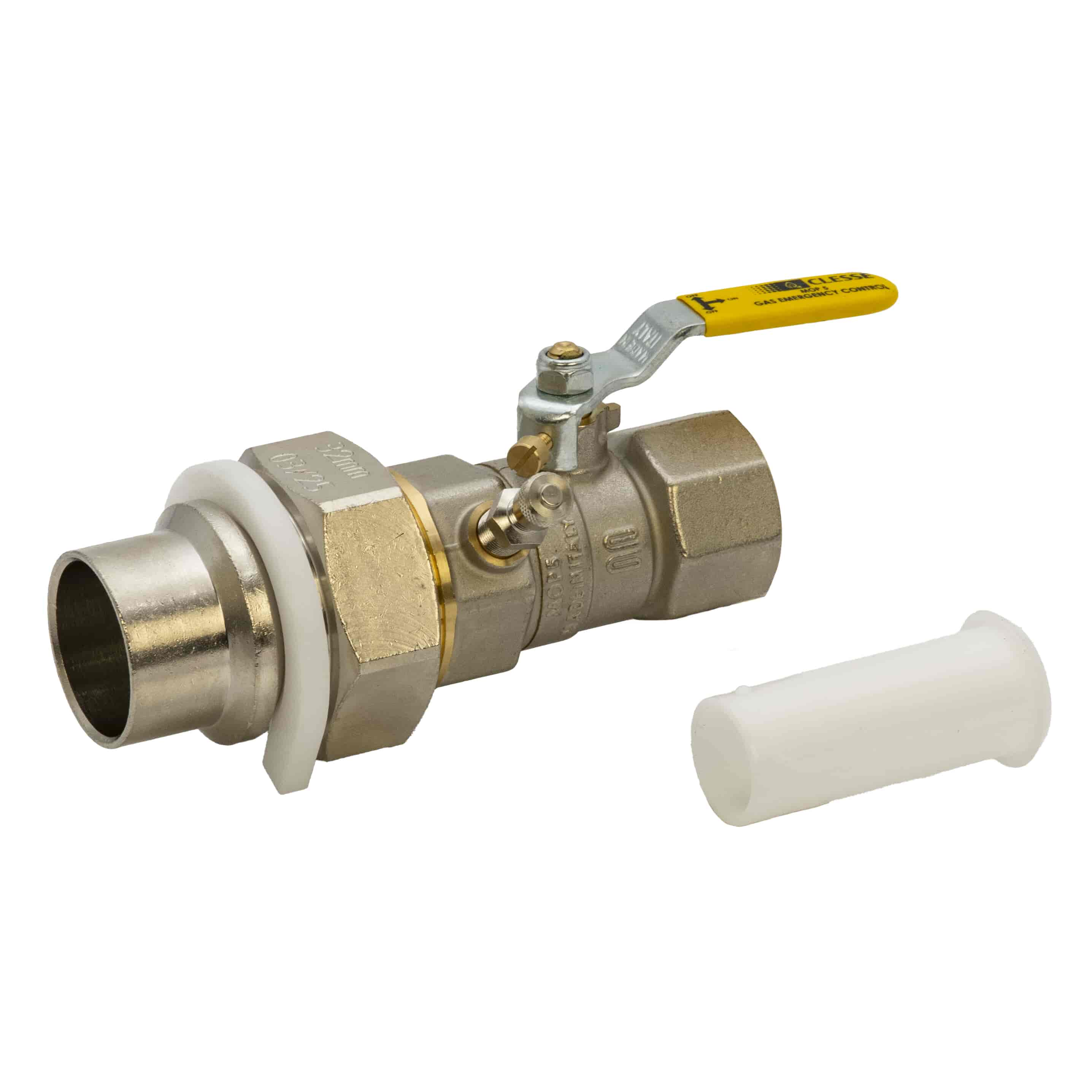

Clesse EvoFit Transition Fitting 1" BSP FM x 32mm MDPE (UU32MMX1TF-VFK)
Installing a gas isolation point on 32mm MDPE pipework usually means sourcing a transition fitting, an isolation valve, and a test point separately — the Clesse EvoFit combines all three into one compact unit. The mechanical compression fitting makes a safe, leak-free transition between 32mm MDPE pipe and 1" BSP threaded equipment, with the C-Clip retention system securing the pipe without tools.
Built into the same unit is a MOP 5 ball valve compliant with EN 331, giving a proper emergency isolation point, along with an integrated test point using a 1/8" BSP Schrader valve for pressure testing and commissioning. The nickel-plated brass body is built for long-term outdoor reliability, and the whole assembly is designed to EN 1555-2.
Key Features & Benefits
All-in-One Valve & Transition: Combines isolation valve, test point, and PE transition into a single compact fitting.
32mm MDPE C-Clip Connection: Fast, secure, and tool-free pipe retention.
1" BSP Female Outlet: Connects directly to regulators, meter tails, and pipework.
MOP 5 Isolation Valve: Fully compliant emergency control valve to EN 331.
Integrated Test Point: 1/8" BSP Schrader valve for pressure testing and commissioning.
Nickel-Plated Brass Body: Corrosion-resistant for long-term outdoor reliability.
Fewer Joints, Fewer Leaks: One compact unit replaces multiple separate fittings.
Ideal For
32mm MDPE LPG gas installations.
Meter box transitions.
External pipework requiring isolation and test points.
New builds and renovations.
Gas engineers and installers.
Why Buy This Product?
Fitting a transition, an isolation valve, and a test point separately means three joints where things can leak, and three separate parts to source and check. This EvoFit unit replaces that with one engineered assembly, giving a compliant isolation and test point on 32mm MDPE pipework with fewer places for something to go wrong.
Order the Clesse EvoFit Transition Fitting 1" BSP FM x 32mm MDPE online today.
Specification
Clesse EvoFit Transition Fitting 1" BSP FM x 32mm MDPE Specification
Product
Clesse EvoFit PE Transition Valve
Product Code
UU32MMX1TF-VFK
Thread Type
1" BSP Female
PE Pipe Size
32mm MDPE with C-Clip
Isolation Valve
MOP 5 – EN 331 Approved
Locking Pin
Yes
Test Point
1/8" BSPT Schrader Valve & Cap
Standard
EN 1555-2:2002
Seal Material
Nitrile Rubber (EN 682 GBL)
Body Material
Nickel-Plated Brass
Operating Temperature
-20°C to +60°C
Marking
CLESSE
Features
Clesse EvoFit Transition Fitting 1" BSP FM x 32mm MDPE Features
All-in-One Valve & Transition: Combines isolation valve, test point, and PE transition into a single compact fitting.
32mm MDPE C-Clip Connection: Fast, secure, and tool-free pipe retention.
1" BSP Female Outlet: Connects directly to regulators, meter tails, and pipework.
MOP 5 Isolation Valve: Fully compliant emergency control valve to EN 331.
Integrated Test Point: 1/8" BSP Schrader valve for pressure testing and commissioning.
Nickel-Plated Brass Body: Corrosion-resistant for long-term outdoor reliability.
Fewer Joints, Fewer Leaks: One compact unit replaces multiple separate fittings.
