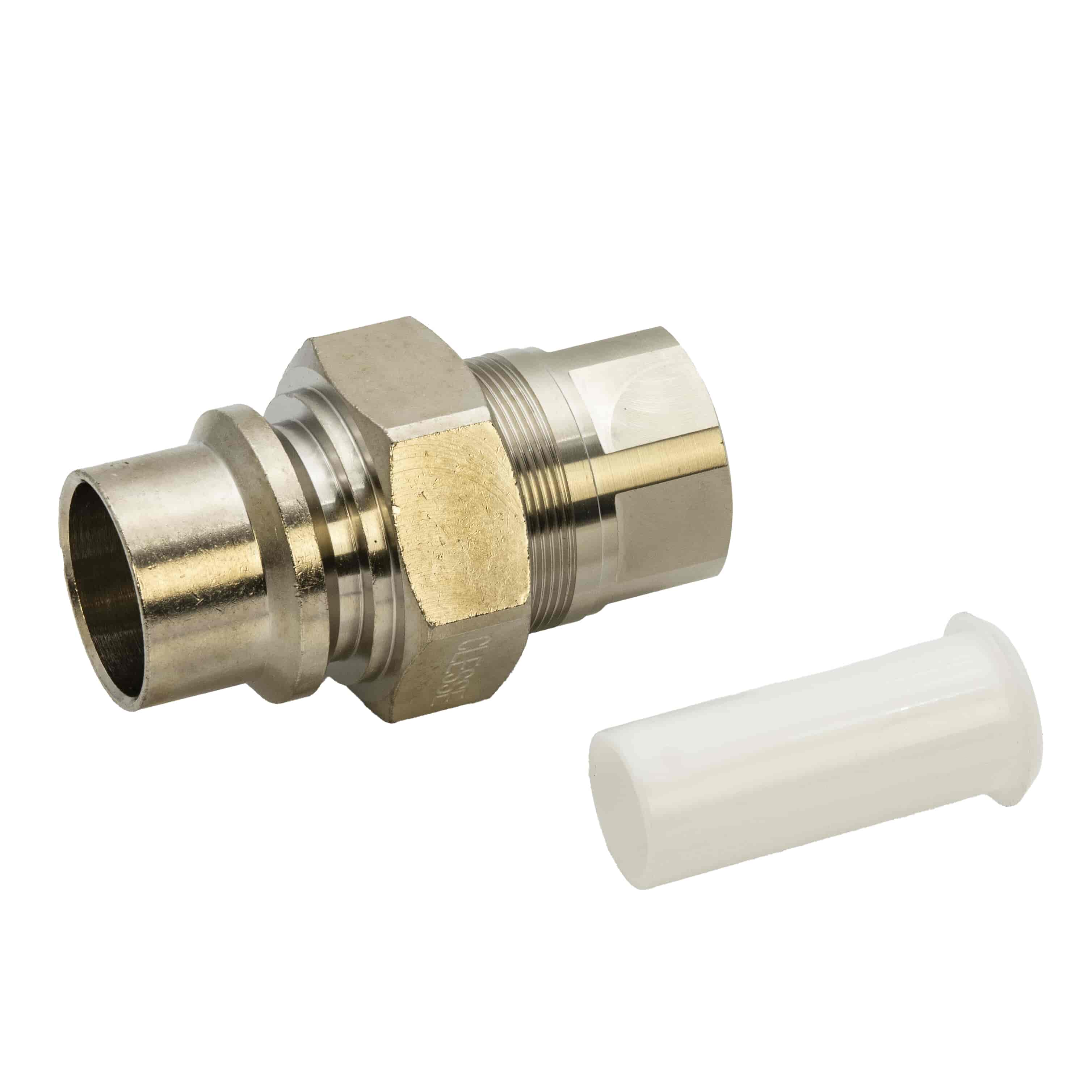

Clesse EvoFit Transition Fitting 1" BSP FM x 32mm MDPE (UU32MMX1TF-FK)
Transitioning 32mm MDPE gas pipe onto a BSP threaded system without heat fusion equipment is exactly what the Clesse EvoFit is designed for. The mechanical compression design gives a leak-proof connection without welding or fusion tooling, and the integrated C-Clip retention keeps the MDPE pipe securely gripped once fitted, removing the risk of pipe pull-out under load.
Built from nickel-plated brass for corrosion resistance, the fitting uses a conical nitrile rubber seal tested to EN 682, the recognised standard for elastomeric seals in gas applications, and meets EN 1555-2 for mechanical PE pipe fittings. It's rated across a wide temperature range of -20°C to +60°C, making it suitable for both underground and exposed installations.
Key Features & Benefits
Mechanical PE Transition Fitting: Connects 32mm MDPE pipe to 1" BSP threaded systems without fusion tooling.
Integrated C-Clip Retention: Secure, reliable pipe grip without additional fixings.
Nickel-Plated Brass Construction: Corrosion-resistant and built for long service life.
Leak-Proof Compression Design: Reliable sealing without welding or heat fusion equipment.
Conical Nitrile Rubber Seal: Tested to EN 682 for gas applications.
Wide Temperature Range: Suitable from -20°C to +60°C.
European Manufactured: Designed and marked by Clesse to EN 1555-2.
Ideal For
LPG and gas distribution systems.
Transitioning 32mm MDPE to threaded pipework.
Underground and external gas installations.
Professional gas engineers and installers.
Why Buy This Product?
No fusion equipment on site, no welding, and the C-Clip means the pipe is mechanically retained rather than relying on compression alone to hold it in place under load. Nickel-plated brass and an EN 682-tested seal give this fitting the durability and sealing integrity that underground or exposed LPG installations need over the long term.
Order the Clesse EvoFit Transition Fitting 1" BSP FM x 32mm MDPE online today.
Specification
Clesse EvoFit Transition Fitting 1" BSP FM x 32mm MDPE Specification
Brand
Clesse
Product Type
PE Transition Fitting
Female Thread Type
1" BSP Taper Female
Transition Size
32mm MDPE with C-Clip
Material & Finish
Nickel-Plated Brass
Seal Type
Conical Nitrile Rubber (EN 682 GBL)
Standard
EN 1555-2:2002
Temperature Limits
-20°C to +60°C
Marking
CLESSE – 32mm
Suitable Applications
LPG & Gas PE Pipe Transition Installations
Features
Clesse EvoFit Transition Fitting 1" BSP FM x 32mm MDPE Features
Mechanical PE Transition Fitting: Connects 32mm MDPE pipe to 1" BSP threaded systems without fusion tooling.
Integrated C-Clip Retention: Secure, reliable pipe grip without additional fixings.
Nickel-Plated Brass Construction: Corrosion-resistant and built for long service life.
Leak-Proof Compression Design: Reliable sealing without welding or heat fusion equipment.
Conical Nitrile Rubber Seal: Tested to EN 682 for gas applications.
Wide Temperature Range: Suitable from -20°C to +60°C.
European Manufactured: Designed and marked by Clesse to EN 1555-2.
