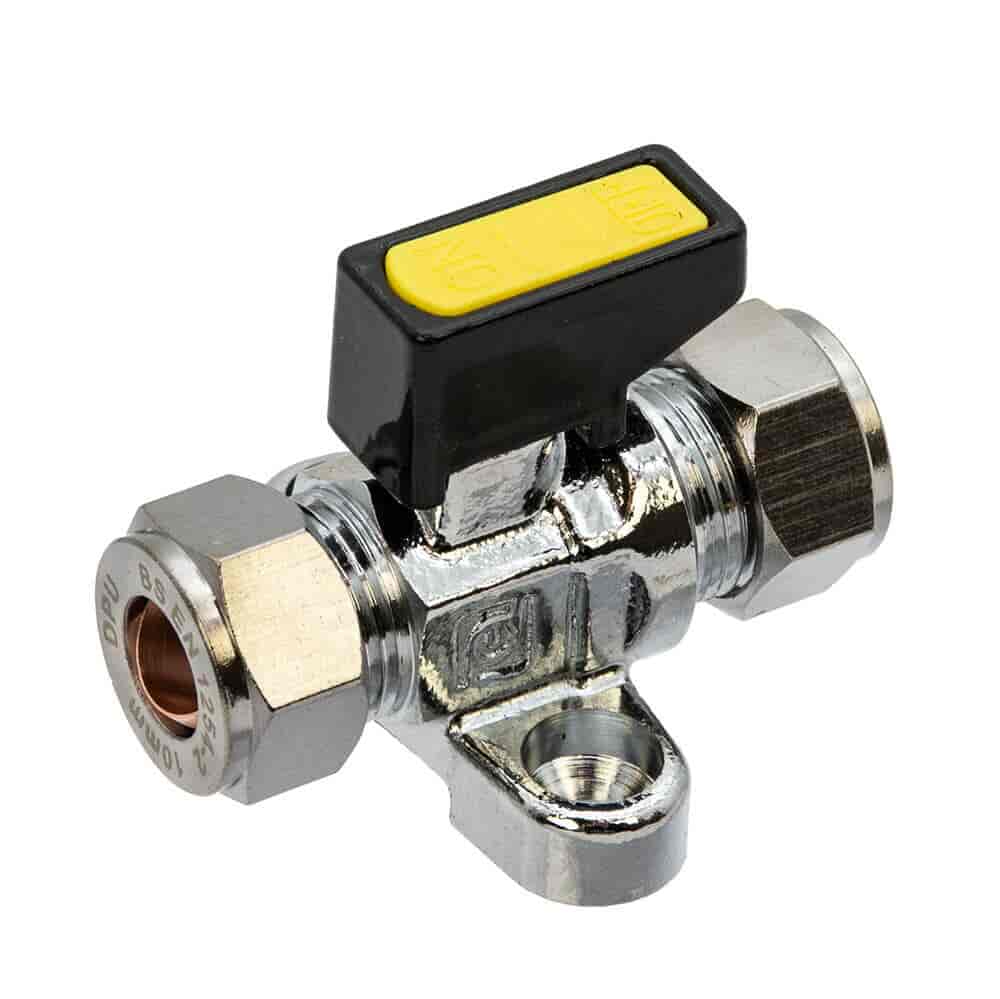

The Mini Gas Ball Valve 10mm x 10mm with Foot Plate is a durable and compact solution for controlling gas flow in caravans, motorhomes, boats, and other gas systems. Designed for convenience and reliability, this valve features an 8mm compression fitting on both ends and a sturdy foot plate for secure mounting.
Constructed from high-quality, corrosion-resistant materials, this mini ball valve ensures long-lasting performance, even in demanding environments. Its compact design makes it ideal for installations in confined spaces, providing precise and safe gas control. Suitable for use with Natural Gas, LPG, water, oils, and compressed air.
Key Features and Benefits
Perfect for Caravans, Marine Use, and Off-Grid Applications
The Mini Gas Ball Valve 10mm x 10mm with Foot Plate is an essential component for secure and efficient gas flow control in compact spaces. Its robust design and reliable performance make it a trusted choice for mobile and off-grid gas systems.
Upgrade your gas system with the Mini Gas Ball Valve 10mm x 10mm with Foot Plate for precise, safe, and reliable gas control.
| Brand | Tesla |
|---|---|
| Approvals | BS EN ISO 9001 & BS EN 331 |
| Connection | 10mm Compression (x2) |
| Finish | Plated |
| Full Bore | No |
| Handle | Lever (removable for screwdriver/spanner operation) |
| Handle Colour | Yellow |
| Material | Brass |
| Max Operating Pressure | 20 Bar |
| Operating Range | -20° C to 80° C |
| Applications | Natural Gas & LPG |
| Size | 10mm |
| Lockable | No |
| Suitable Applications | For Natural Gas, LPG, water, oils and compressed air. |
| Product Type | Mini Gas Ball Valve |
10mm Compression Fittings – Compatible with standard 8mm gas pipework for a secure, leak-free connection.
Foot Plate for Stability – Provides secure mounting on caravans, motorhomes, boats, or fixed installations.
Dual Operation – Yellow lever handle can be removed for screwdriver slot or spanner flat control.
Durable Brass Body – Plated finish for corrosion resistance and long service life.
Certified Safety – Conforms to BS EN 331 standards, tested by an EN ISO 9001 registered company.
High Pressure Performance – Handles up to 20 bar operating pressure.
Multi-Fuel Compatible – Suitable for Natural Gas, LPG, water, oils, and compressed air.
