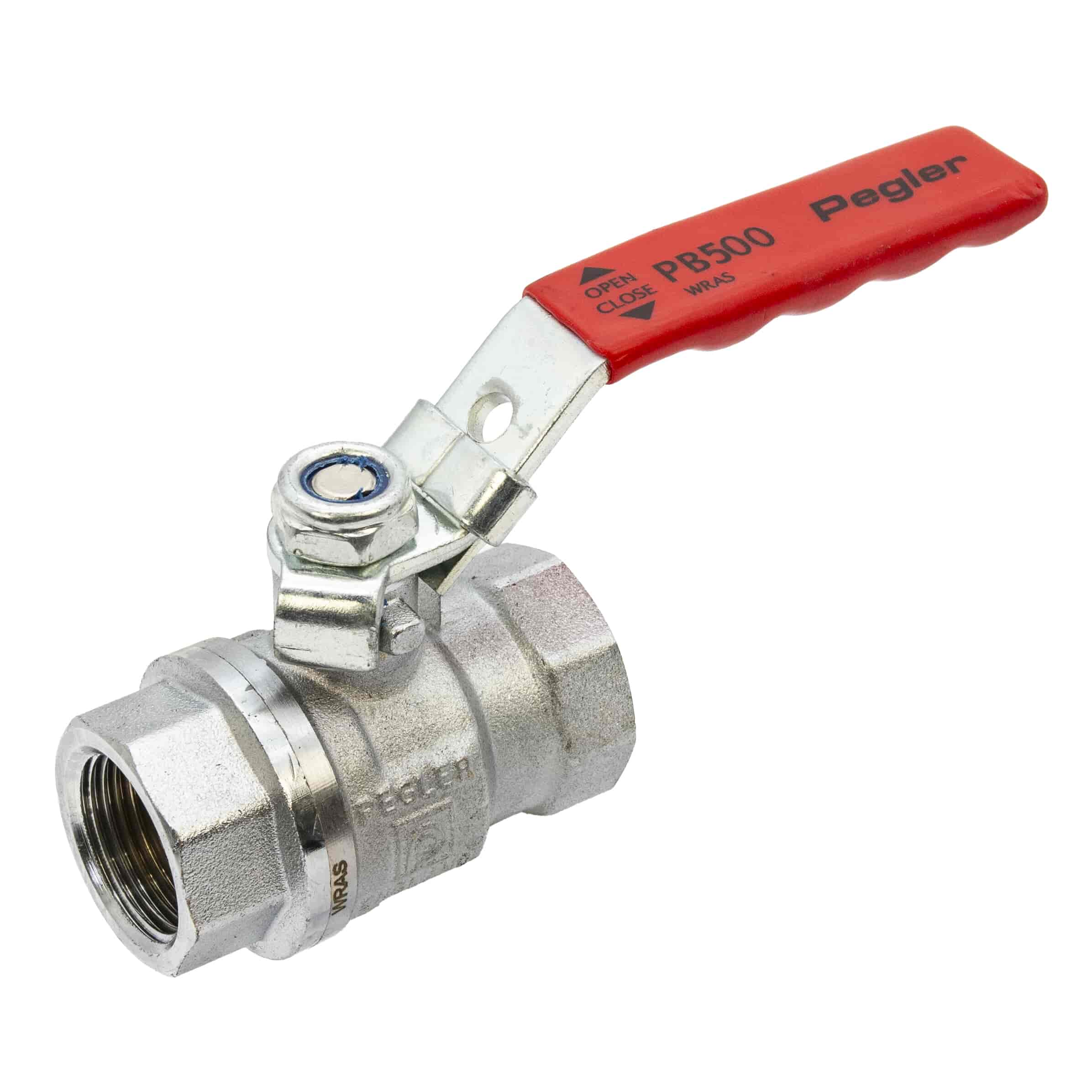

Pegler PB500 3/4" BSP F x F Full Bore Ball Valve – Red Lever Handle (242004)
The Pegler PB500 3/4" BSP Full Bore Ball Valve with red lever handle is a WRAS-approved valve built for high performance, long life and low maintenance. Suitable for isolating a range of fluids and gases in pipelines, this full bore valve gives maximum flow with minimal pressure drop, suited to domestic and commercial systems.
The red handle colour indicates an EPDM seal. The PB500 has PTFE ball seals for leak-proof reliability, a vandal and blow-out resistant design, and a locking lever handle for added safety and control. With 3/4" BSP female to female connections, it fits into pipelines for fast, secure installation.
Key Features & Benefits
WRAS Approved: Safe for potable water systems, meets strict regulations.
3/4" BSP Female x Female Connections: Easy to fit into plumbing and pipeline systems.
Full Bore Design: Maximum flow efficiency with minimal pressure loss.
Chromium-Plated Brass Construction: Corrosion resistance and long life.
PTFE Ball Seals: Tight seal prevents leaks and improves system reliability.
EPDM Seal (Red Handle): Colour-coded to indicate seal material.
Red Lever Handle: Quick 90° quarter-turn operation, for hot water or general service.
Lockable Handle: Built-in locking mechanism for added safety.
High Pressure Rated: 25 bar up to 100°C; 16.5 bar up to 150°C.
Low Maintenance: Trouble-free operation and long life.
Ideal For
Isolating water, steam, oil, air and general fluid/gas pipelines.
Domestic, commercial and industrial isolation points.
Installations requiring a lockable handle for added safety.
Why Buy This Product?
A locking lever handle adds a genuine safety feature over a standard lever valve, useful where an isolation point needs to be secured against accidental operation. The tiered pressure rating (25 bar up to 100°C, 16.5 bar up to 150°C) gives a clearer picture of real performance across different temperatures than a single flat figure.
Order the Pegler PB500 3/4" BSP F x F Full Bore Ball Valve – Red Lever Handle online today.
Specification
Pegler PB500 3/4" BSP F x F Full Bore Ball Valve – Red Lever Handle Specification
Brand
Pegler
Part Number
242004
Approvals
WRAS Approved
Connection
3/4" BSP Female x Female
Valve Type
Full Bore Lever Ball Valve
Handle Type
Lever
Handle Colour
Red (EPDM Seal)
Body Material
Chromium Plated Brass
Seat Material
PTFE
Max Operating Pressure
25 bar up to 100°C; 16.5 bar up to 150°C
Applications
Water, Steam, Oil, Air, General Fluid/Gas Isolation
Size
3/4" BSP
Lockable
Yes
Features
Pegler PB500 3/4" BSP F x F Full Bore Ball Valve – Red Lever Handle Features
WRAS Approved: Safe for potable water systems, meets strict regulations.
3/4" BSP Female x Female Connections: Easy to fit into plumbing and pipeline systems.
Full Bore Design: Maximum flow efficiency with minimal pressure loss.
Chromium-Plated Brass Construction: Corrosion resistance and long life.
PTFE Ball Seals: Tight seal prevents leaks and improves system reliability.
EPDM Seal (Red Handle): Colour-coded to indicate seal material.
Red Lever Handle: Quick 90° quarter-turn operation, for hot water or general service.
Lockable Handle: Built-in locking mechanism for added safety.
High Pressure Rated: 25 bar up to 100°C; 16.5 bar up to 150°C.
Low Maintenance: Trouble-free operation and long life.
