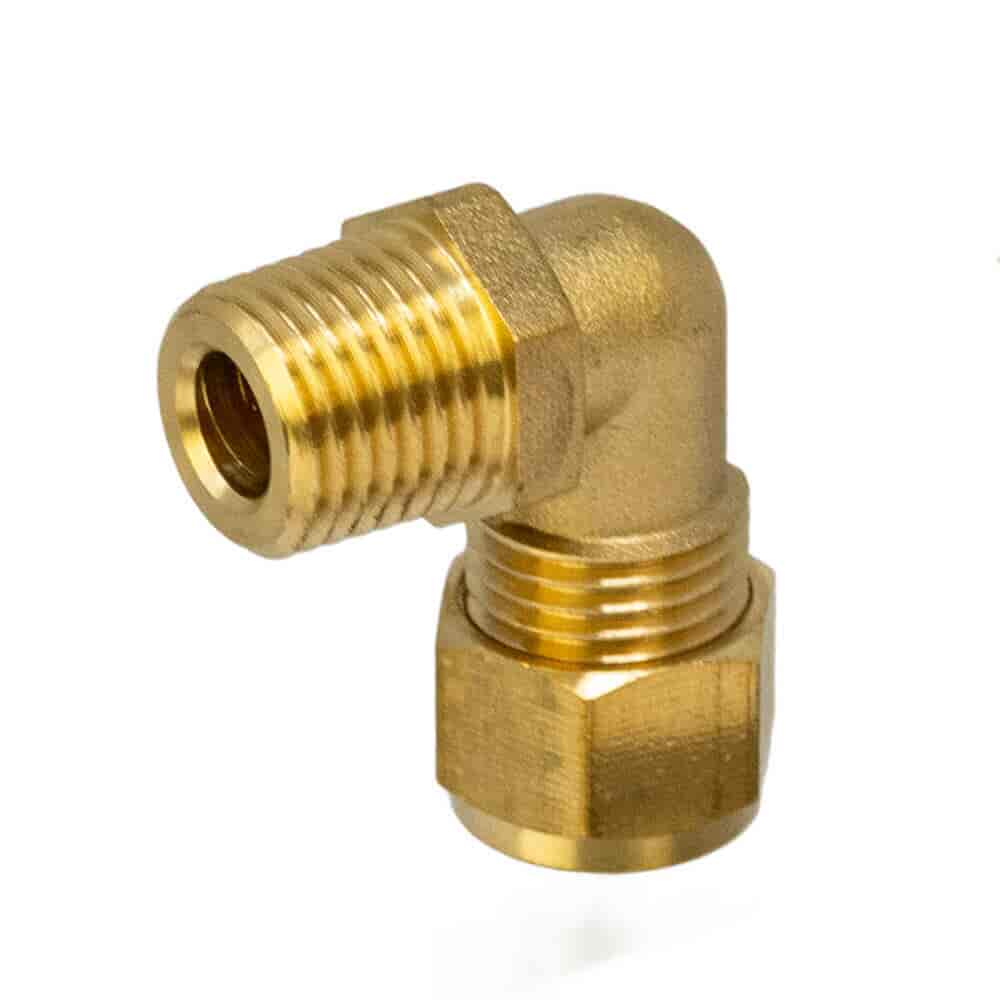

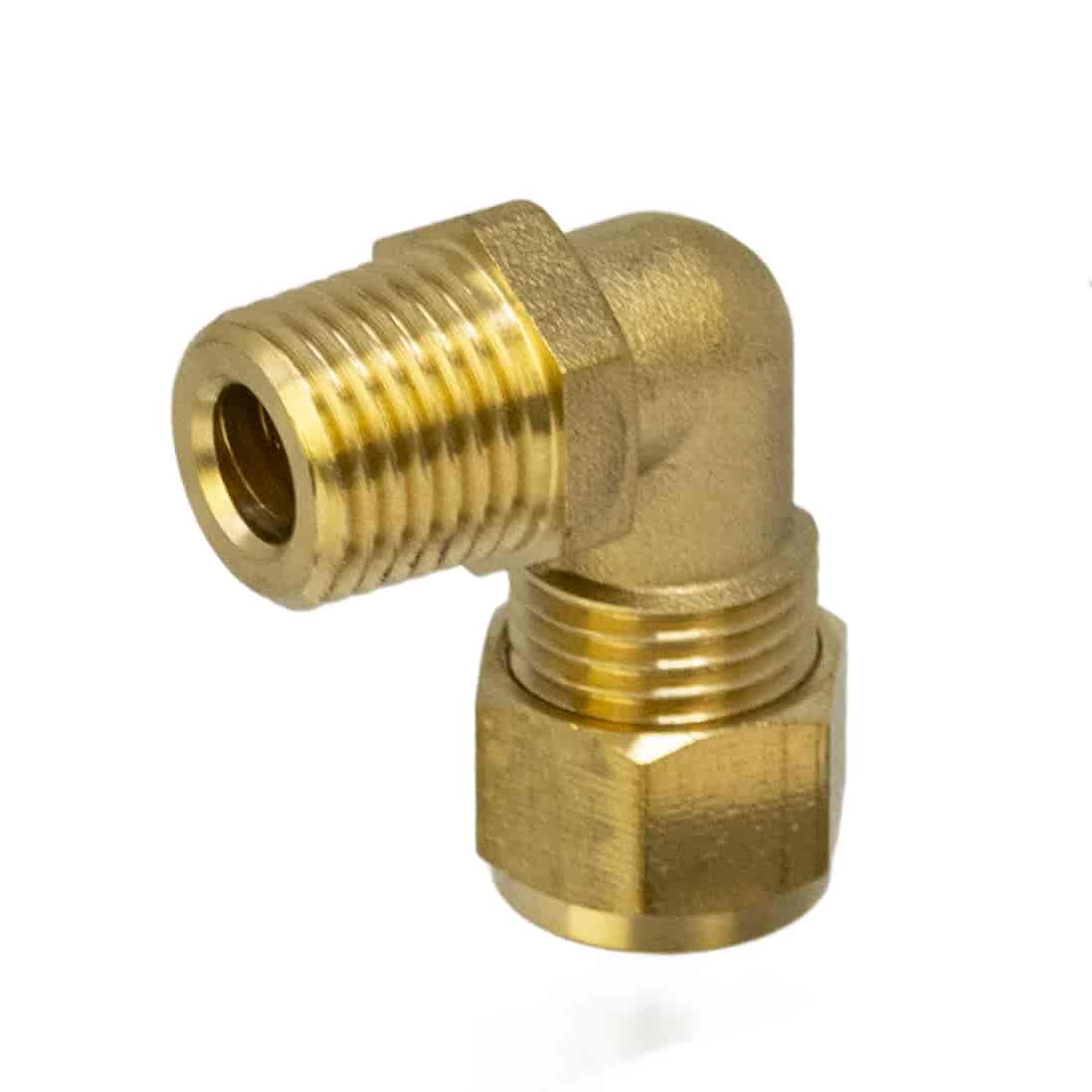

Brass Compression Elbow – 8mm x 1/4" BSP Male (WRAS Approved, EN1254-2 Compliant)
The Brass Compression Elbow – 8mm Compression x 1/4" BSP Male is a flame-free plumbing solution for creating 90° bends in pipework where space is tight or open flames are not allowed. For use with 8mm copper pipe and 1/4" BSP female fittings, this elbow gives a mechanical seal without the need for heat.
Made from brass and WRAS approved, this elbow is suitable for hot and cold water, heating systems, low-pressure gas and oil pipelines and BS EN 1057 copper tube and other pipe materials.
Features
Size – 8mm compression x 1/4" BSP male
Material – Solid brass
Connection Type – Compression (pipe side) x BSP Parallel Female (threaded side)
Pressure Ratings – Gas: 1 bar @ 30°C; Compressed air: 7 bar @ 30°C
