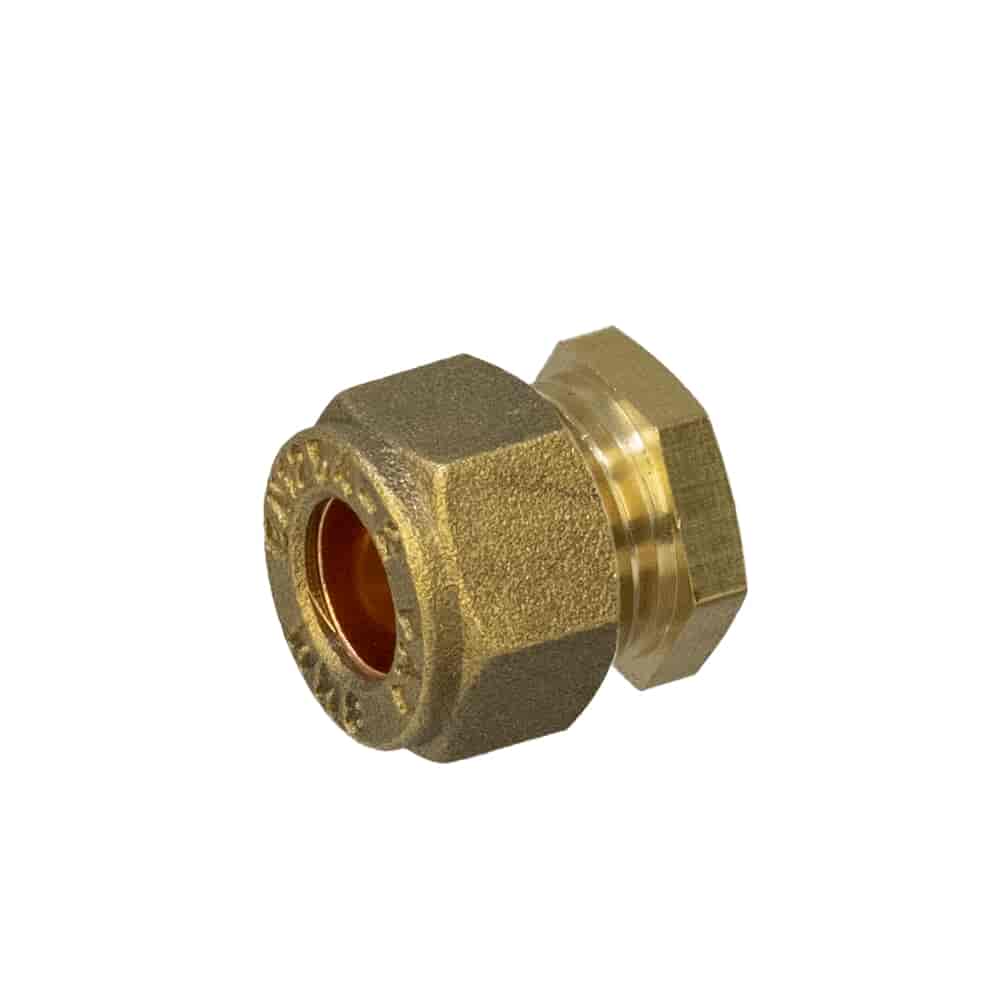

Capping off a pipe end without soldering is often the simplest way to isolate a section of pipework, finish a spur, or leave a run ready for a later extension. The Brass Compression Stop End 8mm seals the end of 8mm copper or compatible pipework with a mechanical compression joint, so no heat, flux, or solder is needed.
Made from brass and manufactured to BS EN 1254-2, it's WRAS approved and suitable for hot and cold water systems, heating circuits, compressed air, and low-pressure gas. It works with 8mm copper tube to BS EN 1057 and with other compatible metal and plastic pipe (with the right inserts). It's rated to 1 bar at 30°C for gas, 7 bar at 30°C for compressed air, and 25 bar for water between 0°C and 95°C.
A compression stop end gives a reliable, removable seal without a torch, so it suits jobs where soldering isn't practical, such as capping off a live-adjacent spur or leaving a run ready for later work. WRAS approval and BS EN 1254-2 compliance mean it's a fitting you can specify with confidence across water, heating, and low-pressure gas work.
Order the Brass Compression Stop End - 8mm online today.
| Brand | Hamilton Gas Products Ltd |
|---|---|
| Product Type | Compression Stop End |
| Connection | 8mm Compression |
| Size | 8mm |
| Material | Brass |
| Finish | Brass |
| Gas Pressure Rating | 1 Bar @ 30°C |
| Compressed Air Rating | 7 Bar @ 30°C |
| Water Pressure Rating | 25 Bar (8–15mm) @ 0–95°C |
| Pipe Compatibility | Copper, Stainless Steel, Low Carbon Steel, Select Plastics |
| Standard/Approval | BS EN 1254-2, WRAS Approved |
| Suitable Applications | Water, Heating, Compressed Air, and Low-Pressure Gas (Above Ground) |
