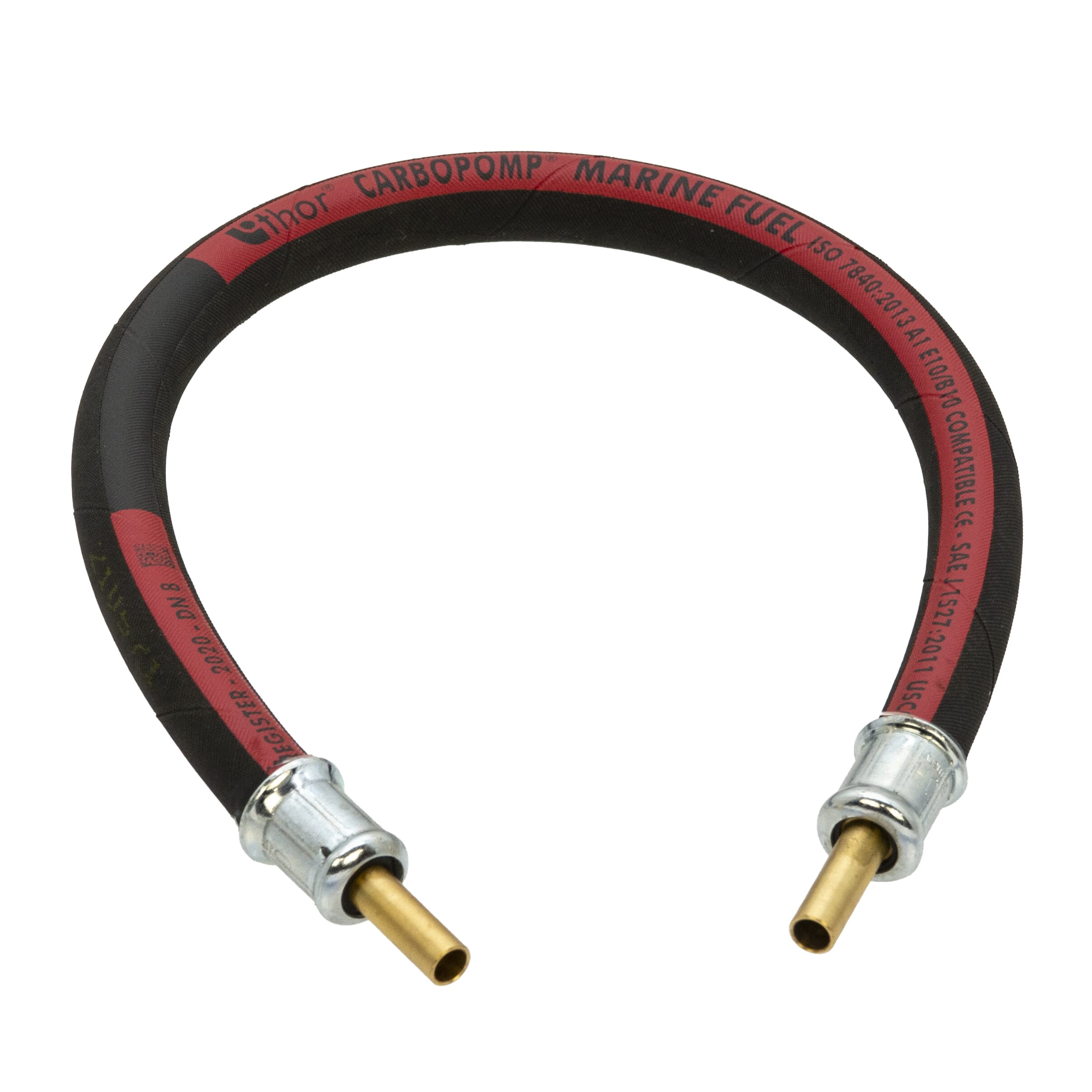

Mandrel-built marine fuel hose assembly with 1/4" brass standpipe ends for compression fitting. For petrol, diesel, biodiesel, E10 and B10 on private boats up to 24m. ISO 7840:2013 A1 compliant. RINA and Lloyd's Register approved. SAE J1527:2011 and USCG A1. 4.5 bar max working pressure, -25°C to 80°C. 18" length. Black fire-resistant cover.
Key Features & Benefits
ISO 7840:2013 A1 Compliant — The international standard for fire-resistant hoses for use in recreational boats. A1 is the highest fire resistance classification under this standard.
RINA & Lloyd's Register Approved — Certified by two of the world's leading marine classification authorities.
SAE J1527:2011 & USCG A1 — Also meets US Coast Guard and SAE marine fuel hose standards — suitable for international and US-flagged vessels.
E10 and B10 Compatible — Suitable for use with ethanol-blended petrol (E10) and biodiesel blends (B10) — the current standard fuel blends in the UK and Europe.
1/4" Brass Standpipe Connections — Both ends fitted with 1/4" brass standpipes for compression fitting connection.
Mandrel-Built Construction — Thinner than standard hoses while maintaining excellent bend, kink and permeation resistance — easier routing in tight engine bay spaces.
Fire-Resistant Black Cover — Good abrasion, weathering and oil resistance on the outer cover.
4.5 Bar Maximum Working Pressure
-25°C to 80°C Operating Range
For Private Boats up to 24m
Ideal For
Marine petrol, diesel and biodiesel fuel line assemblies on private boats to 24m
Engine bay fuel hose replacement where ISO 7840 A1 certification is required
Boats requiring RINA, Lloyd's Register or USCG compliant fuel system components
E10 and B10 fuel systems
ISO 7840 A1, RINA and Lloyd's Register approved marine fuel hose — E10/B10 compatible. Order today for fast delivery.
Specification

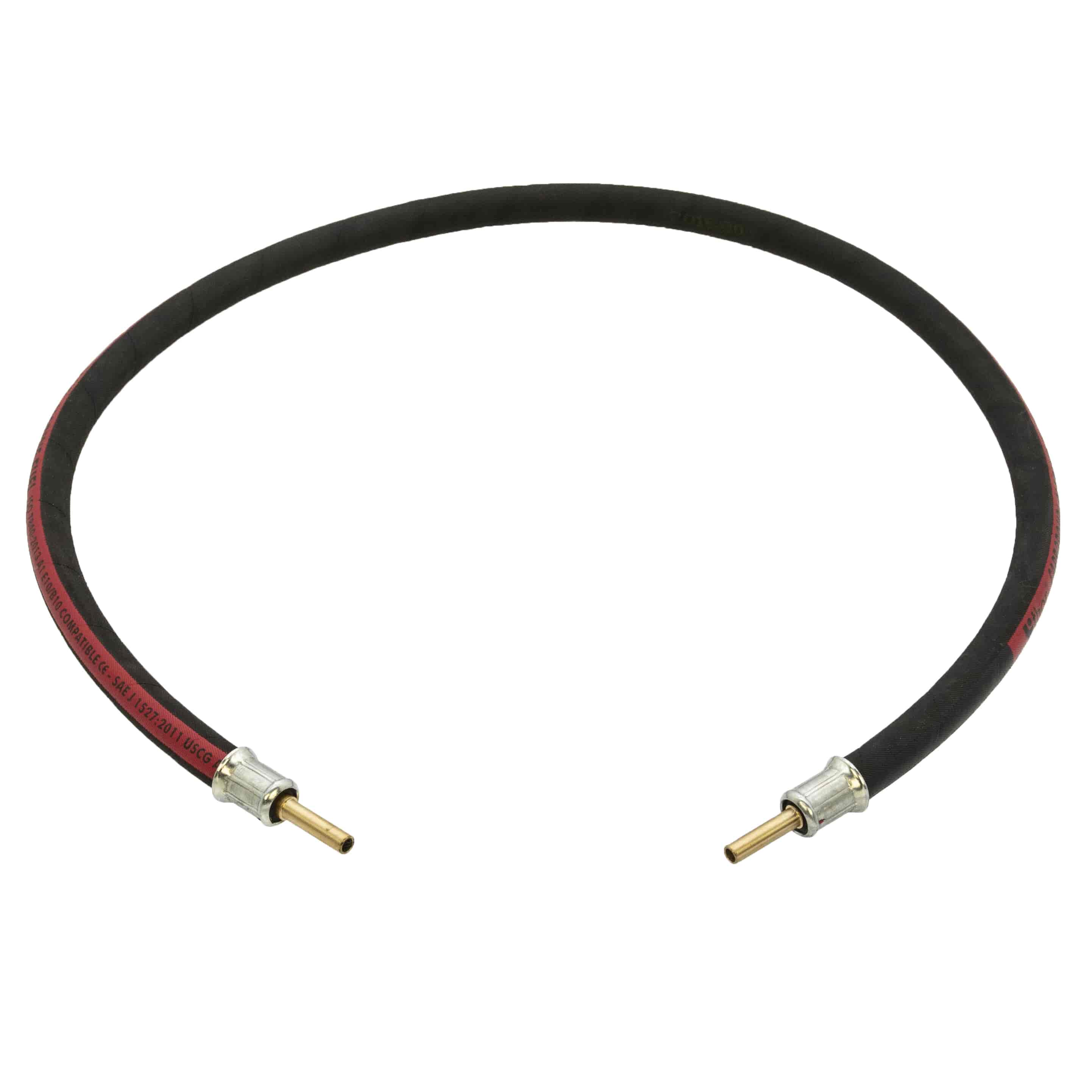

36" ISO 7840 Marine Fuel Hose with 1/4" Brass Standpipes Specification
Brand
Hamilton Gas Products
Hose Standard
ISO 7840:2013 A1
Additional Approvals
RINA, Lloyd's Register, SAE J1527:2011, USCG A1, CE
Connections
1/4" brass standpipe × 1/4" brass standpipe
Length
36"
Max Working Pressure
4.5 bar
Temperature Range
-25°C to +80°C
Cover Colour
Black
Cover
Fire-resistant with abrasion, weathering and oil resistance
Tube
Suitable for unleaded fuel and petroleum products with aromatic content not exceeding 50%
Reinforcement
High tensile synthetic textile plies
Construction
Mandrel-built
Fuel Compatibility
Petrol (unleaded, E10), diesel, biodiesel (B10) — aromatic content ≤50%
Suitable Vessels
Private boats up to 24m
Hose Marking
THOR® CARBOPOMP® MARINE FUEL ISO 7840:2013 A1 E10/B10 COMPATIBLE CE SAE J1527:2011 USCG A1 – RINA – LLOYD'S REGISTER
Features
36" ISO 7840 Marine Fuel Hose with 1/4" Brass Standpipes Features
ISO 7840:2013 A1 Compliant - The international standard for fire-resistant hoses for use in recreational boats. A1 is the highest fire resistance classification under this standard.
RINA & Lloyd's Register Approved - Certified by two of the world's leading marine classification authorities.
SAE J1527:2011 & USCG A1 - Also meets US Coast Guard and SAE marine fuel hose standards - suitable for international and US-flagged vessels.
E10 and B10 Compatible - Suitable for use with ethanol-blended petrol (E10) and biodiesel blends (B10) - the current standard fuel blends in the UK and Europe.
1/4" Brass Standpipe Connections - Both ends fitted with 1/4" brass standpipes for compression fitting connection.
Mandrel-Built Construction - Thinner than standard hoses while maintaining excellent bend, kink and permeation resistance - easier routing in tight engine bay spaces.
Fire-Resistant Black Cover - Good abrasion, weathering and oil resistance on the outer cover.
4.5 Bar Maximum Working Pressure
-25°C to 80°C Operating Range
For Private Boats up to 24m
