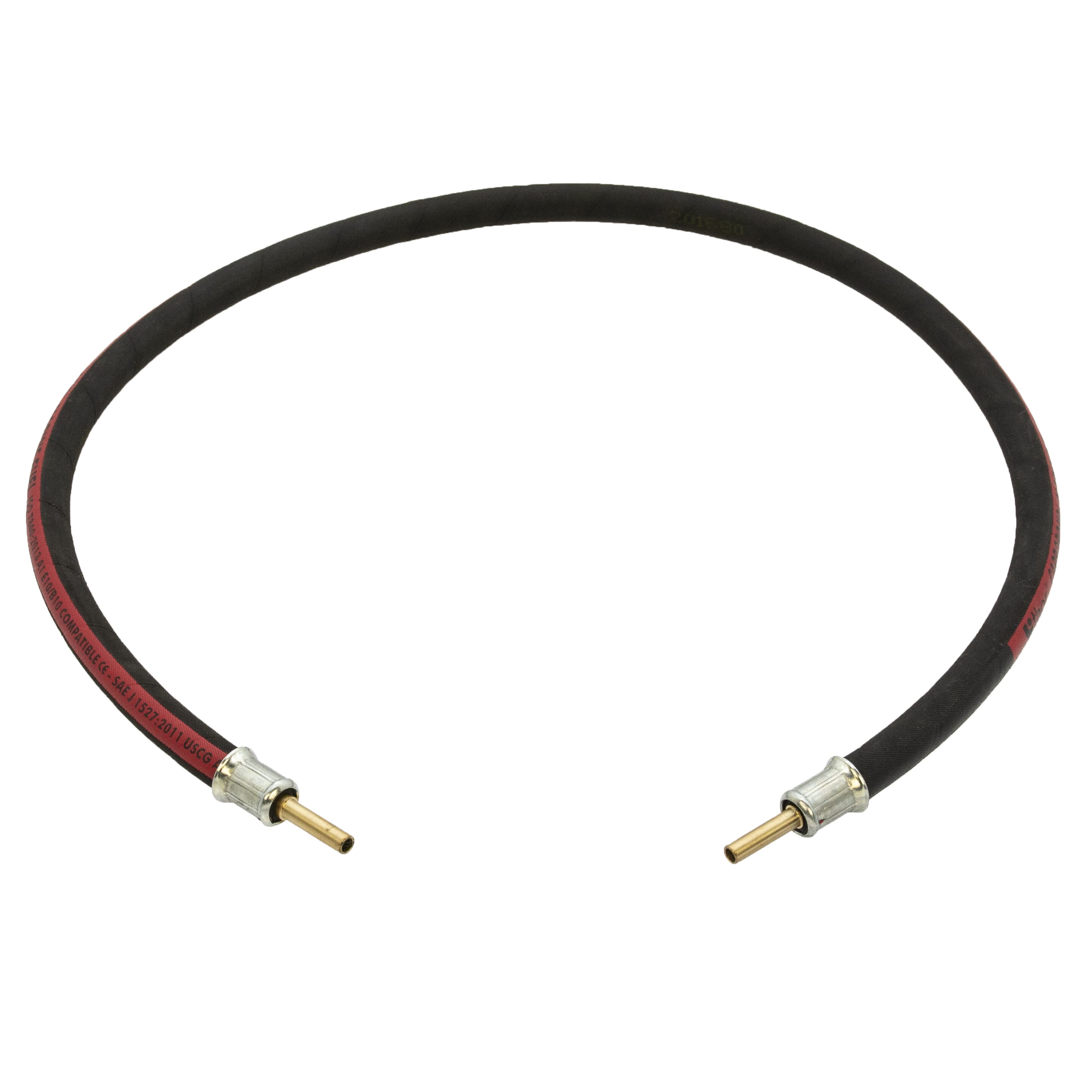

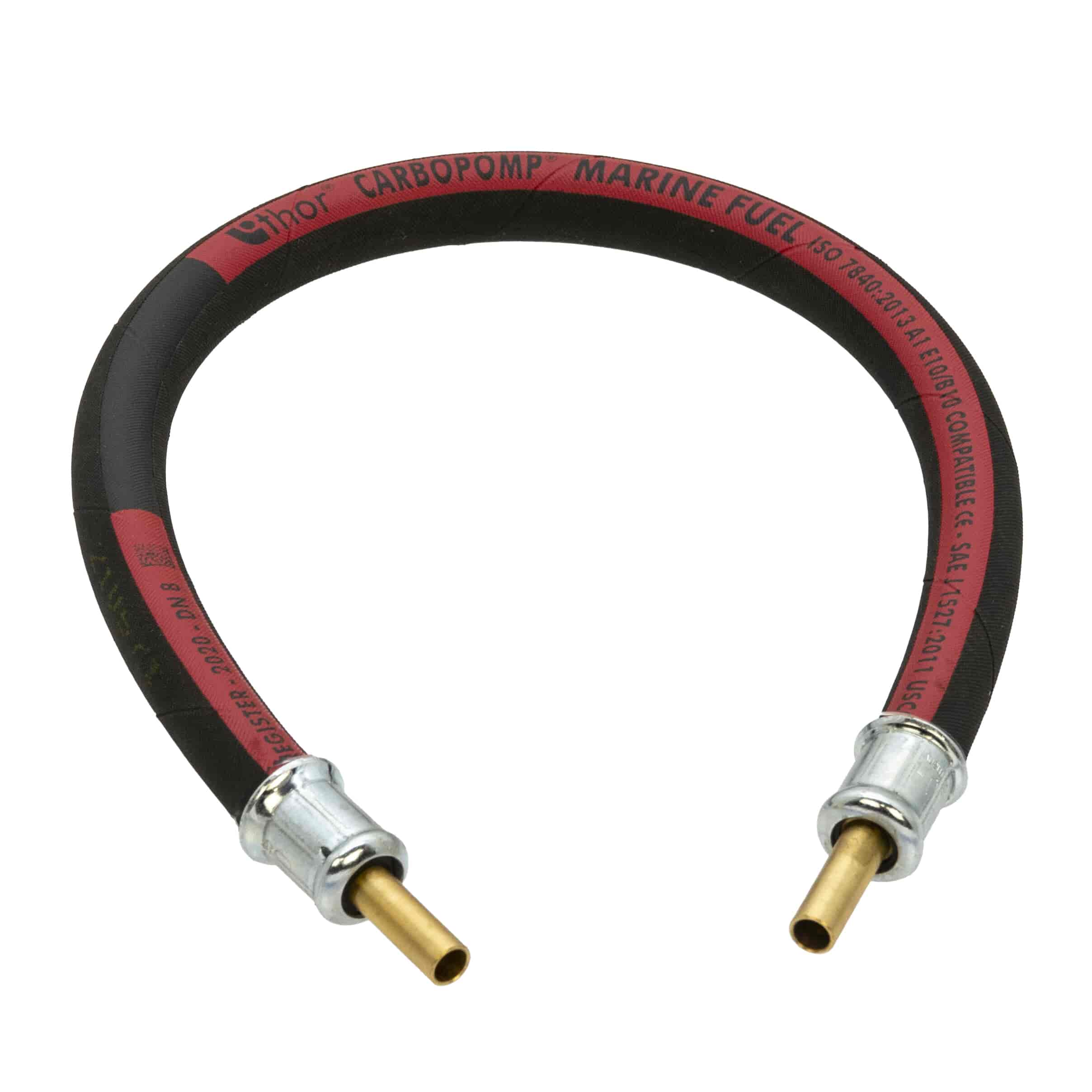

Marine Fuel Hose Assembly with spigots for compression fitment. Mandrel built hose for delivery of petrol, diesel oil, biodiesel to engine on private boats up to 24 mt. The composition of the materials allows to have a hose thinner than the standard ones and guarantees a good resistance to bends, kinking and permeations of the different kinds of fuels. Complying with ISO 7840:2013 A1. RINA and Lloyd’s approval.
| Hose Decription | Marine Fuel Hose to ISO7840 - type A! |
|---|---|
| Cover Colour | Black |
| Cover Specification | Fire resistant with good abrasion, weathering and oil resistance |
| Reinforcement | High tensile synthetic textile piles |
| Tube Colour | Black |
| Tube Info | Suitable for use with unleaded fuel and petroleum products with an aromatic content not exceeding 50% |
| Min Working Temp | -25 ⁰C |
| Max Working Temp | 80 ⁰C |
| Max Working Pressure | 4.5 Bar |
| Length | 18" |
| Inlet | 1/4" Standpipe |
| Outlet | 1/4" Standpipe |
| Markings | THOR® CARBOPOMP ® MARINE FUEL ISO 7840:2013 A1 E10/B10 COMPATIBLE CE SAE J 1527:2011 USCG A1 – RINA – LLOYD’S REGISTER |
