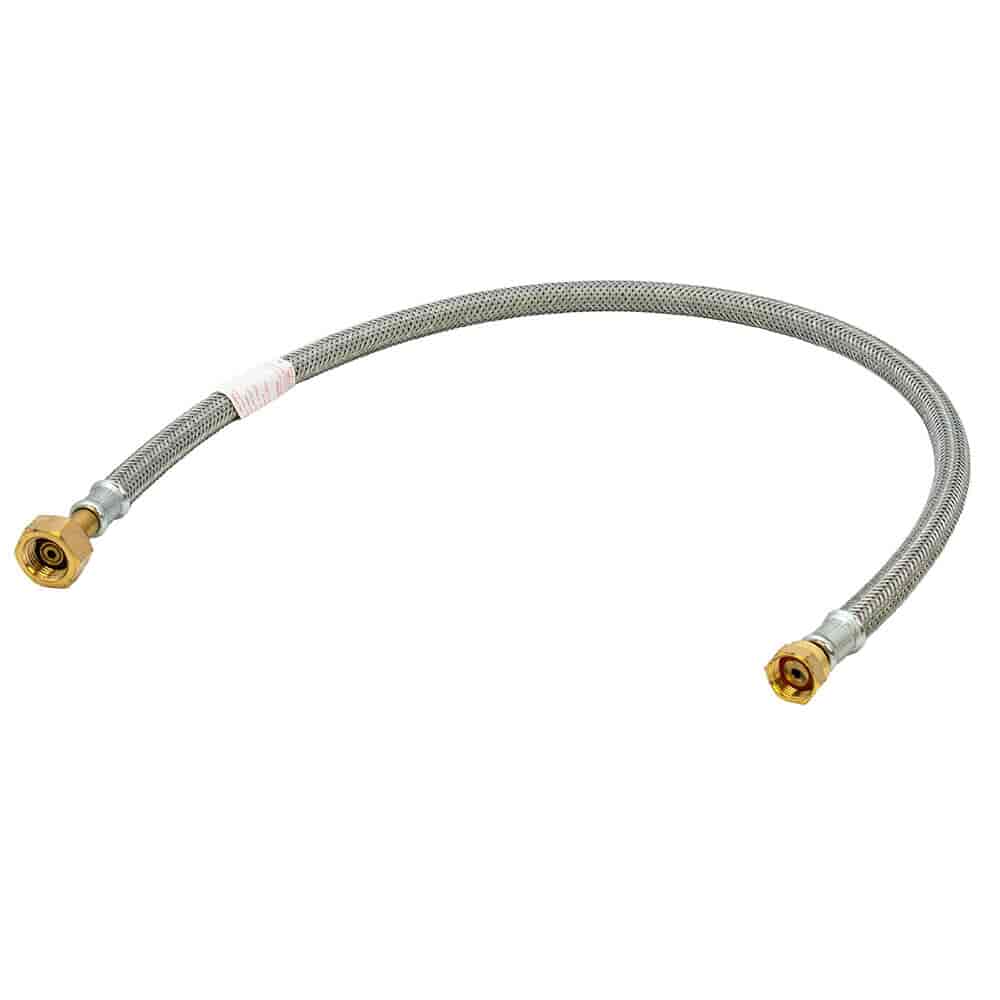

The Gas Products 35" Galvanised Overbraided LPG Pigtail is for use with all those installation applications which require further protection against mechanical damage.
In contrast to a standard rubber LPG pigtail, the galvanised steel over braiding of this product offers a degree of protection against damage (both internal and external) as well as rodent infestation on the high-pressure hose. Therefore, this product is very suitable for both residential, recreational and commercial LPG cylinder installations where hoses are subject to exposure.
This product has been manufactured in the U.K. utilising an EN 16436-1 Class 3 High Pressure L.P.G. Hose. It therefore boasts a maximum operating pressure of 30 bar and a maximum bursting pressure of 90 bar. In addition to being protected from backflow by means of its built-in Non-Return Valve, the Excess Flow Valve will also prevent excessive flow rates through the LPG regulator, automatic and/or manual change-over equipment or Wall Blocks.
It comes equipped with a Butane Nut Cylinder Connection and a W20 Nut & Tail for attachment to any compatible LPG Regulator, Automatic Changeover System and/or Manual Changeover Equipment and Wall Block. Calor Gas Approved; Factory Tested; and Backed by a Five Year Warranty; This Product is a Dependable Choice For All Those Installation Applications Requiring A More Robust Hose Assembly.
The key advantage of this Gas Products LPG pigtail is the galvanised steel overbraid. It provides an additional layer of protection against rodents and physical damage, making it a practical upgrade over a standard unbraided rubber hose.
Combined with a non-return and excess flow valve, EN 16436-1 Class 3 hose, Calor Gas approval and a 5-year warranty, it is well suited to LPG installations where durability and additional hose protection are important.
Order your Gas Products 35" Galvanised Overbraided LPG Pigtail today for a robust, UK-made connection with additional protection for your LPG installation.
| Brand | Hamilton Gas Products |
|---|---|
| Product Type | LPG Pigtail Assembly |
| Gas Type | Propane |
| Connection | Non-Return Butane Nut (Irish F-Valve) x W20 Nut & Tail |
| Braiding | Galvanised Steel Overbraid |
| Safety Valve | Non-Return with Excess Flow Valve |
| Length | 35" |
| Standard | EN 16436-1 Class 3 |
| Approval | Calor Gas Approved |
| Working Pressure | 30 bar |
| Burst Pressure | 90 bar |
| Inside Diameter | 6.3 mm |
| Outside Diameter | 16.3 mm |
| Hose Colour | Black with Orange Stripe |
| Compatible UK Cylinder | Calor Gas 4.5 kg |
| Compatible Irish Cylinders | Calor Gas & Flogas 10.89 kg, 19 kg, 34 kg & 47 kg Cylinders |
| Suitable Applications | Manual & Automatic Changeover Regulators and Wall Blocks |
| Warranty | 5 Years Under Normal Use |
