125mm x 32mm Yellow MDPE Electrofusion Tapping Tee

In stock
SKU
HA9676
Special Price £9.00 £7.50 Regular Price £11.88 £9.90
Or 3 Interest-Free Payments of £3.00
apple pay
klarna
google pay
paypal
chevron-up
Description

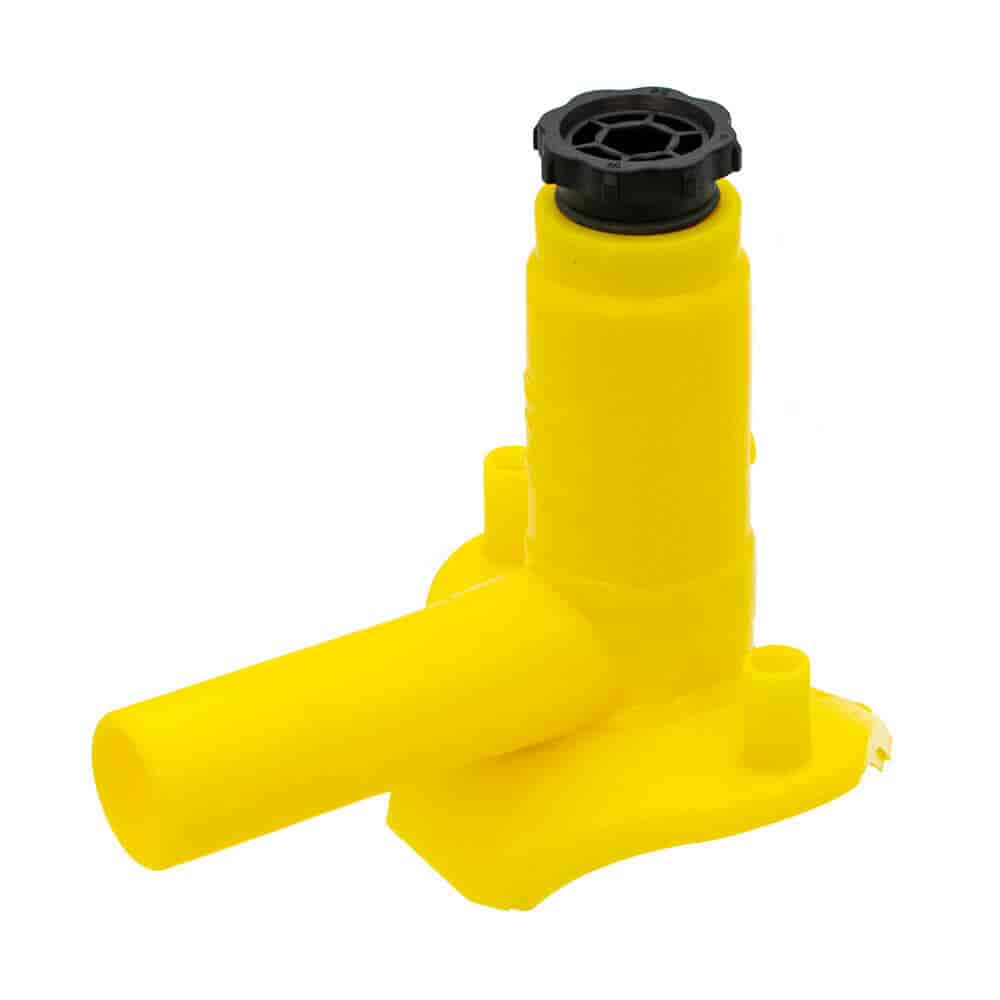

125mm x 32mm Yellow Electrofusion Tapping Tee – PE80 for MDPE Gas Mains

Adding a service connection to an existing gas main normally means cutting into the main and fitting a tee. A tapping tee avoids that: it’s electrofused onto the outside of the pipe, and a cutter then opens the branch, so the connection becomes part of the main.

This yellow electrofusion tapping tee gives a 32mm branch from a 125mm MDPE (PE80) gas main. It’s made in yellow PE80 for use with PE80 gas pipe, and is manufactured to the requirements of GIS/PL2-4 (formerly B.G. Transco Technical Standard PL2 Part 4). It’s supplied in an individual sealed bag to protect the jointing surfaces from contamination before installation, so the fusion surfaces stay clean.

The maximum operating pressure depends on the pipe and the fitting, so always check the fitting’s packaging label. Electrofusion needs a compatible electrofusion control unit, correct pipe preparation and a trained installer, and the tee must be installed and the branch opened in accordance with the manufacturer’s instructions. Gas work, including any work on a gas main, must be carried out by a suitably qualified, registered gas installer in accordance with the relevant standards.

Key Features & Benefits
  • 125mm Main, 32mm Branch: For adding a 32mm service connection to a 125mm MDPE gas main.
  • Electrofusion Joint: The tee is fused to the main, so the connection becomes part of the pipe.
  • Yellow PE80 Construction: Matches PE80 gas pipe and identifies the fitting as gas.
  • Individually Bagged: Sealed to protect the fusion surfaces before installation.
  • Made to GIS/PL2-4: The standard for polyethylene gas fittings (formerly Transco PL2 Part 4).
Applications
  • Branching a 32mm service line from a 125mm MDPE (PE80) gas main, installed by a registered gas installer.
  • New service connections to existing buried gas mains.
  • Natural gas distribution pipework.
Why Buy This Product?

When a new service line needs connecting to a 125mm gas main, a tapping tee fuses on and opens the branch without cutting the main in two. It’s made in PE80 to match PE80 gas pipe, comes sealed in its own bag to keep the jointing surfaces clean, and is made to the gas fittings standard.

Order the 125mm x 32mm Yellow Electrofusion Tapping Tee online today.

Specification

125mm x 32mm Yellow MDPE Electrofusion Tapping Tee Specification

Brand Radius
Product Type Electrofusion Tapping Tee
Main Pipe Size 125mm
Branch Size 32mm
Material Medium Density Polyethylene (MDPE), PE80
Colour Yellow
Standard GIS/PL2-4 (Formerly B.G. Transco PL2 Part 4)
Packaging Individual Sealed Bag
Operating Pressure 5.5 bar
Suitable Applications Natural Gas (Installed by a Registered Gas Installer)
Features

125mm x 32mm Yellow MDPE Electrofusion Tapping Tee Features

  • 125mm Main, 32mm Branch: For adding a 32mm service connection to a 125mm MDPE gas main.
  • Electrofusion Joint: The tee is fused to the main, so the connection becomes part of the pipe.
  • Yellow PE80 Construction: Matches PE80 gas pipe and identifies the fitting as gas.
  • Individually Bagged: Sealed to protect the fusion surfaces before installation.
  • Made to GIS/PL2-4: The standard for polyethylene gas fittings (formerly Transco PL2 Part 4).
